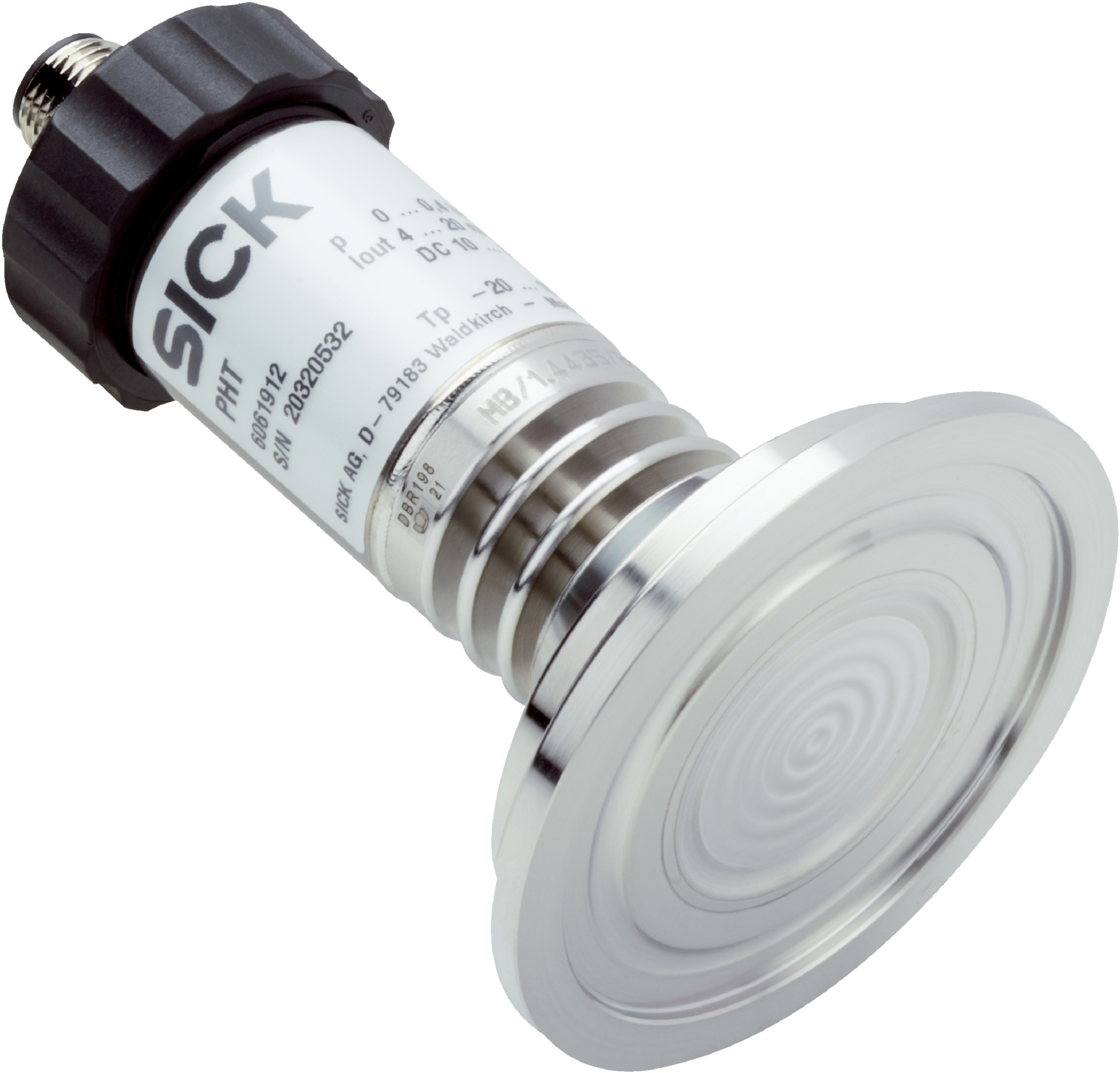

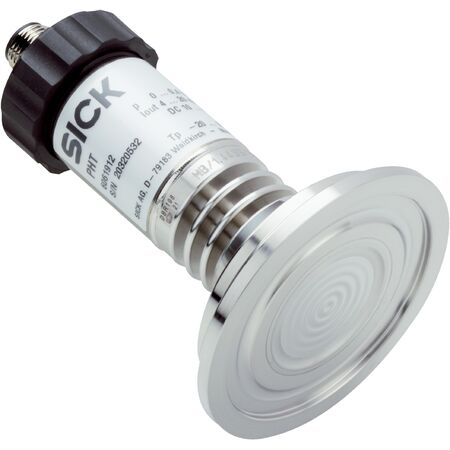

Pressure Transmitter PHT-RB6X0S740S0AMS0Z | 0-6 Bar Gauge Pressure | IP67 Rated | by SICK
The Pressure Transmitter PHT-RB6X0S740S0AMS0Z measures gauge pressure from 0 to 6 bar, making it ideal for both liquid and gaseous media. With a process temperature range of -20 °C to +150 °C and an IP67 rated enclosure, this sensor is built for durability and precision in industrial and food processing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 6 bar gauge pressure
- Process temperature: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Clamp (DIN 11864-3) DN 40 form A
- Wetted parts: 316L stainless steel
- Internal transmission fluid: FDA approved synthetic oil
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Supply voltage: 10 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Accuracy: ≤ ±0.5% of span (optional 0.25%)
- Non-linearity: ≤ ±0.2% of span BFSL
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2% of span per year
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 100mm x 100mm x 40mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 6 bar
- Suitable for liquid and gaseous media
- Process temperature range from -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Clamp (DIN 11864-3) DN 40 form A process connection
- Wetted parts made of 316L stainless steel
- Housing made of stainless steel 1.4571
- M12 round connector, 4-pin connection type
- Supply voltage 10 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- IP67 rated enclosure for dust and water protection
- Long-term stability with ≤ 0.2% span drift per year
- High accuracy up to ±0.25% of span (optional)
- Fast response time ≤ 10 ms
- Shock and vibration resistant
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring pressure monitoring
- Food industry applications due to FDA approved internal fluid
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing ensures long product life reducing waste
- FDA approved synthetic oil minimizes environmental impact in food applications
- Low power consumption with efficient 2-wire 4-20 mA output
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PHT-RB6X0S740S0AMS0Z pressure sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise pressure measurement.
