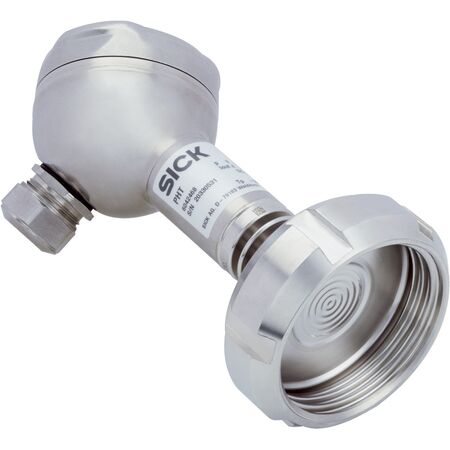

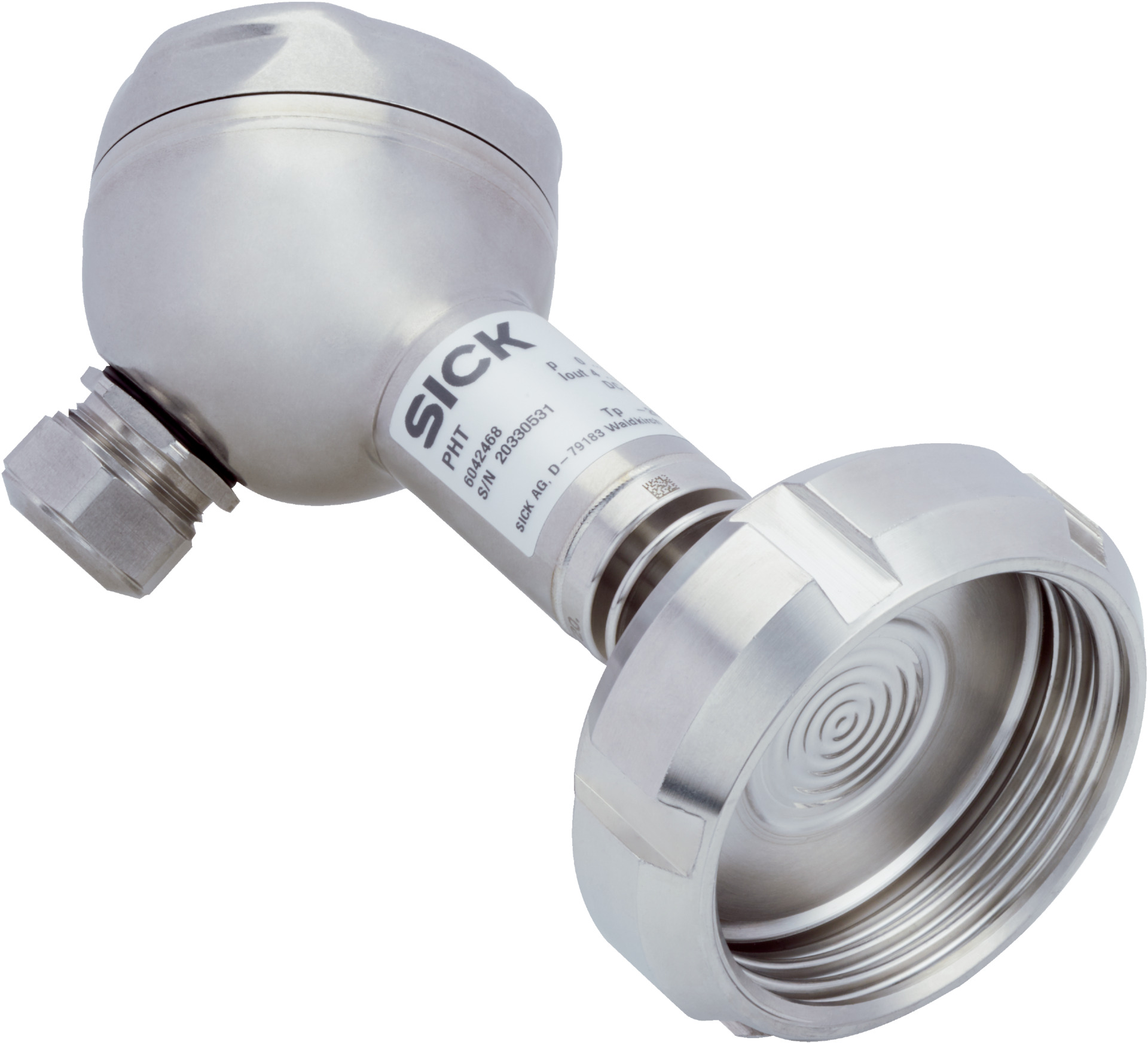

Pressure Transmitter PHT-RB6X0SS10S0AMS0Z | 0-6 Bar Gauge Pressure | IP67 Rated | by SICK
The Pressure Transmitter PHT-RB6X0SS10S0AMS0Z measures gauge pressure from 0 to 6 bar, making it ideal for both liquid and gaseous media. With a robust stainless steel housing and an IP67 rating, this sensor is perfect for industrial process control and food industry applications, ensuring high accuracy and reliability even in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 6 bar gauge pressure
- Process temperature: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: SMS standard 1½'' with union nut
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Accuracy: ≤ ±0.5% of span (optional 0.25%)
- Non-linearity: ≤ ±0.2% of span BFSL
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2% of span per year
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 100mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 6 bar
- Suitable for liquid and gaseous media
- Process temperature range from -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: SMS standard 1½'' with union nut
- Wetted parts made of 316L stainless steel
- Housing made of stainless steel 1.4571
- M12 round connector, 4-pin
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- IP67 enclosure rating for dust and water protection
- Long-term stability with ≤ 0.2% span drift per year
- High accuracy up to ±0.25% of span (optional)
- Fast response time ≤ 10 ms
- Shock and vibration resistant
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control and monitoring
- Food and beverage industry applications due to FDA approved internal fluid
- Harsh environments requiring IP67 rated sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient 4-20 mA output signal
- FDA approved synthetic oil ensures safe use in food industry applications
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PHT-RB6X0SS10S0AMS0Z pressure sensor is available for immediate purchase, ideal for industrial process control and food industry applications.
