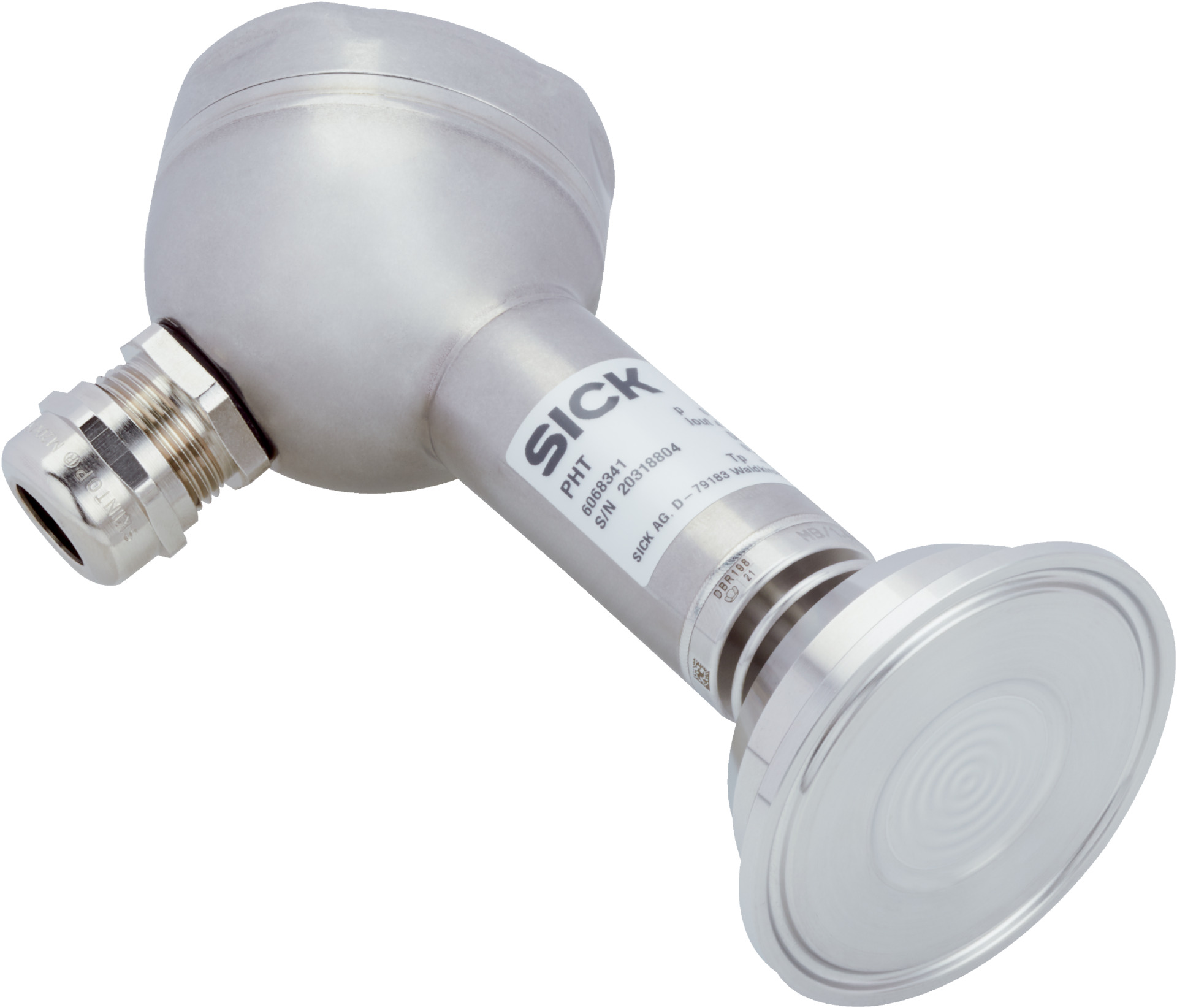

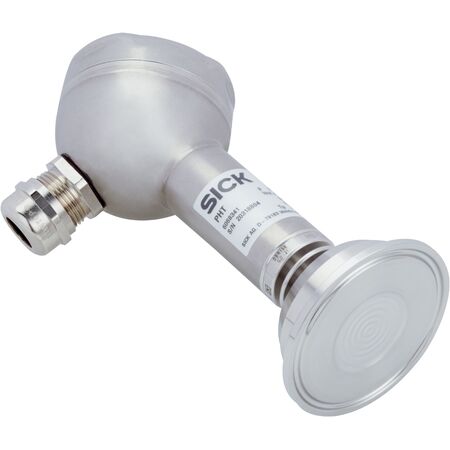

Pressure Transmitter PHT-RB6X0EC20S0AMS0Z | 0-6 Bar Gauge Pressure | IP67 Rated | Stainless Steel Housing | by SICK
The Pressure Transmitter PHT-RB6X0EC20S0AMS0Z measures gauge pressure from 0 to 6 bar, making it ideal for both liquid and gaseous media. With a process temperature range of –20 °C to +150 °C and an IP67 enclosure rating, this sensor is built for industrial applications requiring precise pressure monitoring. Its durable stainless steel housing and FDA-approved internal fluid ensure reliability and hygiene in food industry applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 6 bar gauge pressure
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: Clamp (ISO 2852) DN 33.7
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Response time: ≤ 10 ms
- Accuracy: ≤ ± 0.25 % of span
- Non-linearity: ≤ ± 0.2 % BFSL
- Non-repeatability: ≤ ± 0.1 % of span
- Long-term drift: ≤ 0.2 % of span per year
- Temperature coefficient: ≤ 0.2 % of span / 10 K
- Connection type: M12 round connector, 4-pin
- Dielectric strength: 500 V DC
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 6 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Clamp (ISO 2852) DN 33.7 process connection with 316L stainless steel wetted parts
- Housing made of stainless steel 1.4571 with IP67 enclosure rating
- Overvoltage, short-circuit, and reverse polarity protection
- Fast response time ≤ 10 ms
- High accuracy ≤ ± 0.25 % of span
- Long-term stability with ≤ 0.2 % drift per year
- FDA approved synthetic oil as internal transmission fluid
- M12 round connector, 4-pin connection type
- Protection class III and dielectric strength 500 V DC
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration according to industrial standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal fluid
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing ensures long product life reducing waste
- FDA approved internal fluid suitable for hygienic applications
- Low power consumption with efficient 2-wire 4-20 mA output
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PHT-RB6X0EC20S0AMS0Z Pressure Sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise pressure measurement.
