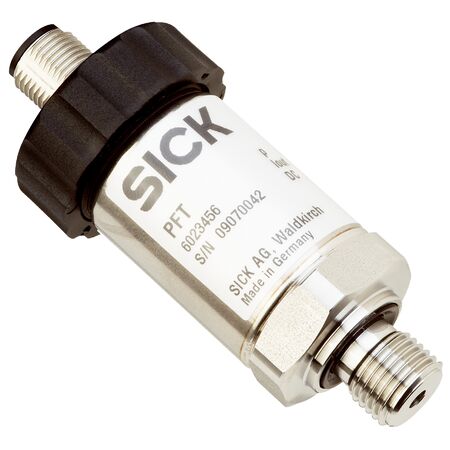

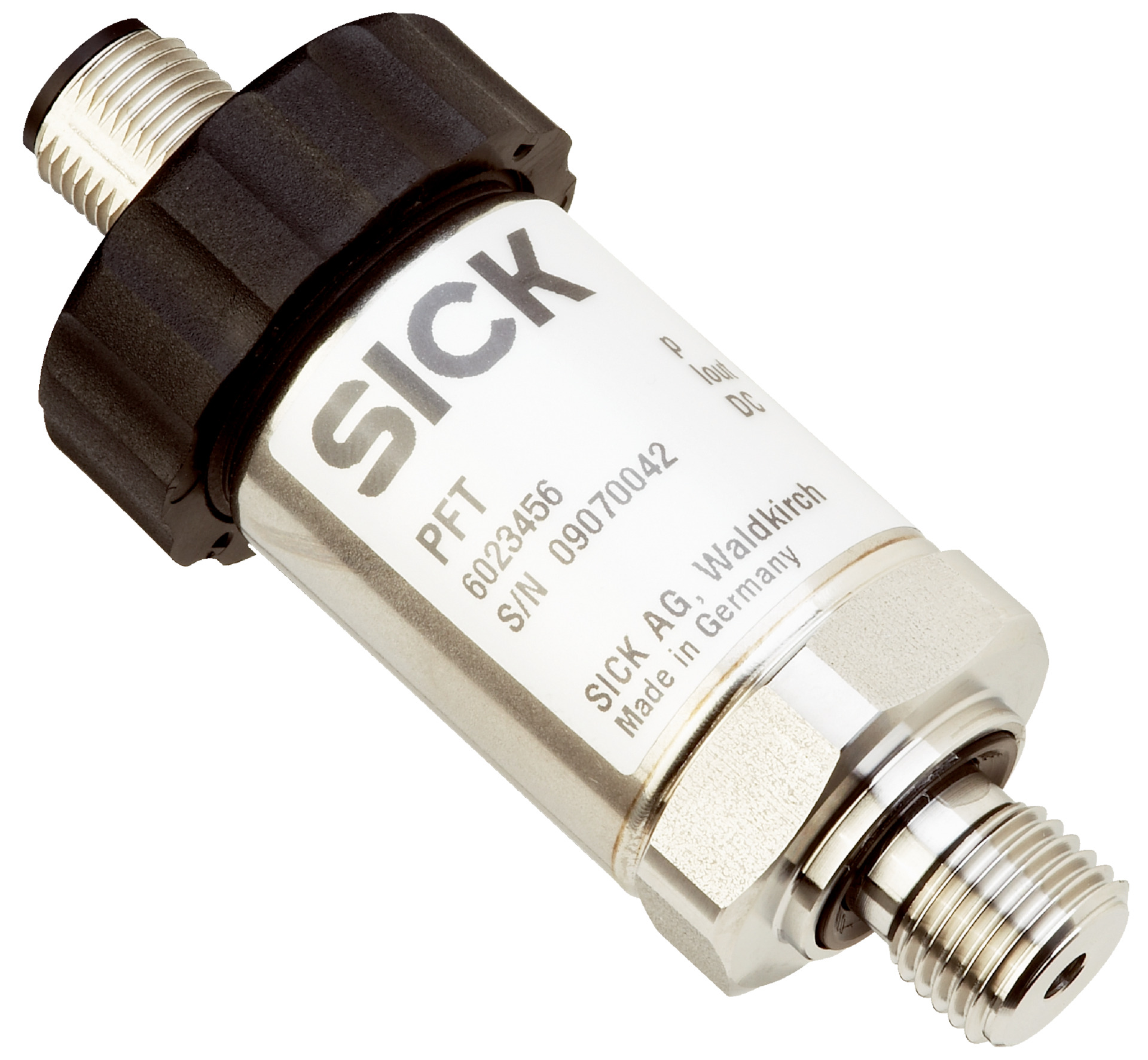

Pressure Transmitter PFT-SRB060SG1SEAALSSF | 0-60 Bar Gauge Pressure | IP65 Rated | Stainless Steel Housing | by SICK
The Pressure Transmitter PFT-SRB060SG1SEAALSSF measures gauge pressure from 0 to 60 bar, making it ideal for industrial process control of liquid and gaseous media. With high accuracy of ≤ ±0.5% span and a fast response time of ≤ 1 ms, this robust sensor features a durable stainless steel housing and IP65 rating, ensuring reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 to 60 bar gauge pressure
- Process temperature range: -40 °C to +125 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Accuracy: ≤ ±0.5% of span
- Non-linearity: ≤ ±0.2% BFSL
- Response time: ≤ 1 ms (10% to 90%)
- Enclosure rating: IP65
- Housing material: Stainless steel 1.4571
- Process connection: G ¼ A (ISO 1179-2)
- Electrical safety: Overvoltage, short-circuit, reverse polarity protection
- Dielectric strength: 500 V DC
- Dimensions (H x L x W): 80mm x 60mm x 30mm
- Weight: 0.2 kg
Key Features
- Measures gauge pressure from 0 to 60 bar
- Suitable for liquid and gaseous media
- High accuracy with ≤ ±0.5% span error
- Fast response time ≤ 1 ms
- Robust stainless steel 1.4571 housing with IP65 rating
- Overvoltage, short-circuit, and reverse polarity protection
- Long service life with minimum 100 million load cycles
- Free from oil and grease for clean applications
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration according to industrial standards.
Applications
- Industrial process control for liquid and gaseous media
- Hydraulic and pneumatic systems monitoring
- Pressure measurement in manufacturing and automation
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces waste through long service life
- Low power consumption with efficient 2-wire 4-20 mA output
- Free from oil and grease, minimizing contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK PFT-SRB060SG1SEAALSSF pressure sensor is available for immediate purchase, ideal for industrial and manufacturing pressure monitoring applications.
