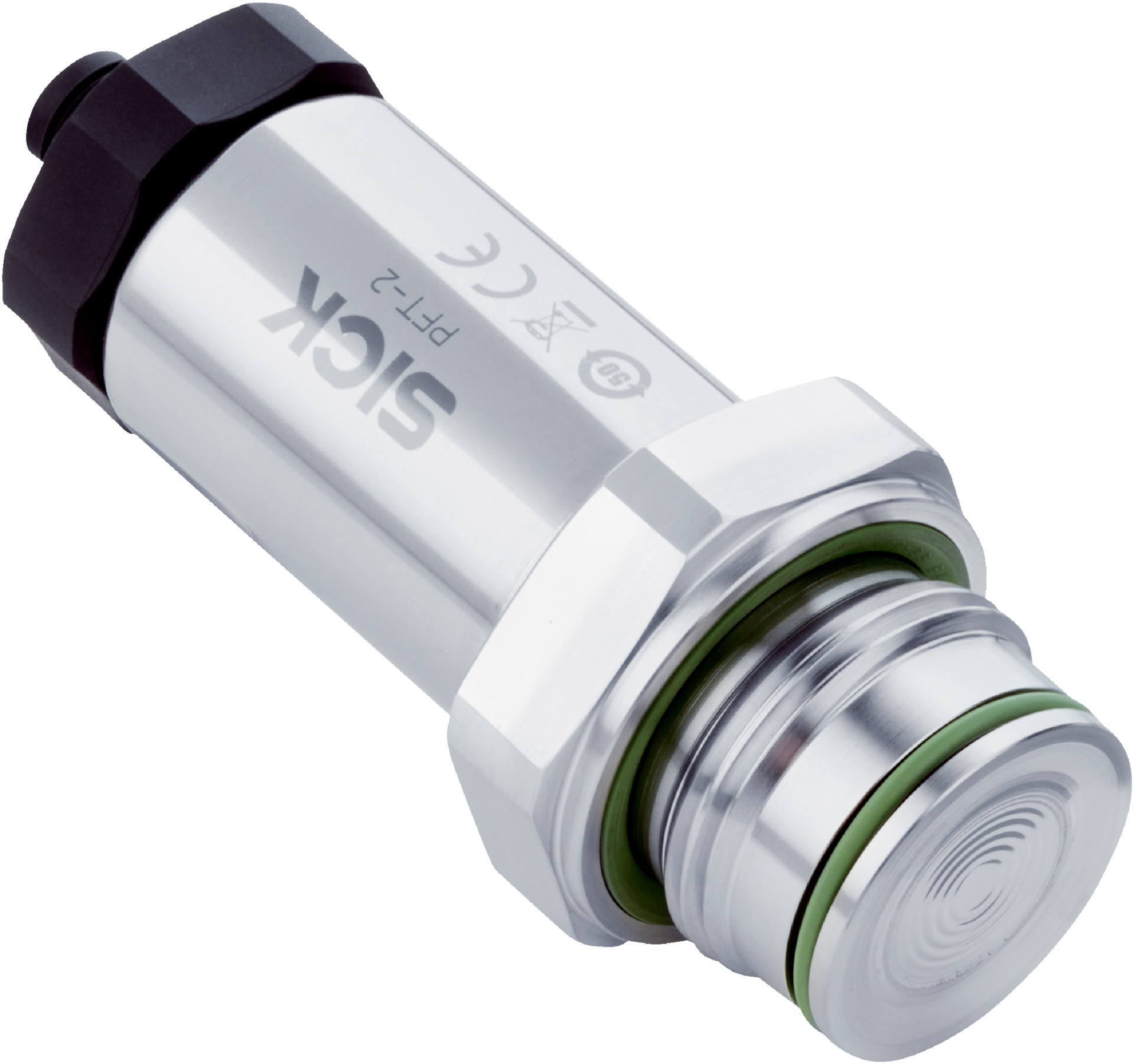

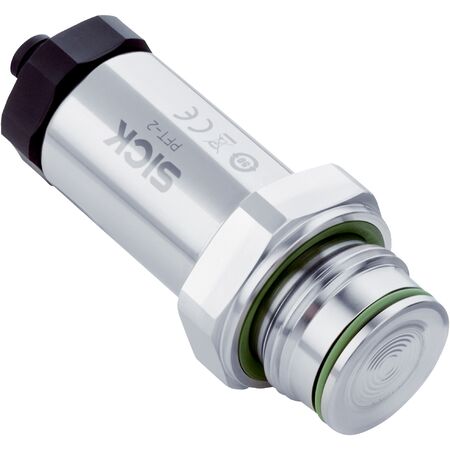

Pressure Transmitter PFT-2C5KM | 0-60 Bar Gauge Pressure | IP66 & IP67 Rated | by SICK
The PFT-2C5KM Pressure Transmitter measures gauge pressure from 0 to 60 bar, making it ideal for industrial process control of both liquid and gaseous media. With a high accuracy of ≤ ±0.5% of span and a fast response time of approximately 15 ms, this robust sensor is perfect for hydraulic and pneumatic systems, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 60 bar (0 psi to 870.2 psi)
- Medium: Liquid and gaseous
- Pressure type: Gauge pressure
- Process temperature range: -40 °C to +100 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 12 V DC to 35 V DC
- Process connection: G 1 flush-mounted (ISO 228-1)
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Silicone oil
- Electrical safety: Overvoltage protection 39 V DC
- Dielectric strength: 500 V AC
- Enclosure rating: IP66 and IP67
- Response time: Approx. 15 ms
- Accuracy: ≤ ±0.5% of span (DIN EN 60770-1)
- Long-term drift: < 0.15% within nominal range
- Temperature coefficient: < 0.15% / 10 K
- Shock load: Class 6M4 (50 g, 2.3 ms)
- Vibration load: Class 4M8 (5 g at 4 Hz to 200 Hz)
- Dimensions (H x L x W): 80mm x 80mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure from 0 to 60 bar (0 to 870.2 psi)
- Suitable for liquid and gaseous media
- High accuracy of ≤ ±0.5% of span
- Fast response time of approximately 15 ms
- Robust stainless steel 316L housing and process connection
- IP66 and IP67 rated enclosure for harsh environments
- Overvoltage protection up to 39 V DC
- Long service life with minimum 10 million load cycles
- M12 round 4-pin connector for electrical connection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in hydraulic and pneumatic systems
- Automation systems requiring precise gauge pressure measurement
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption with 4-20 mA output signal
- Compliant with RoHS directive limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PFT-2C5KM Pressure Sensor is available for immediate purchase, ideal for industrial and automation applications requiring reliable pressure measurement.
