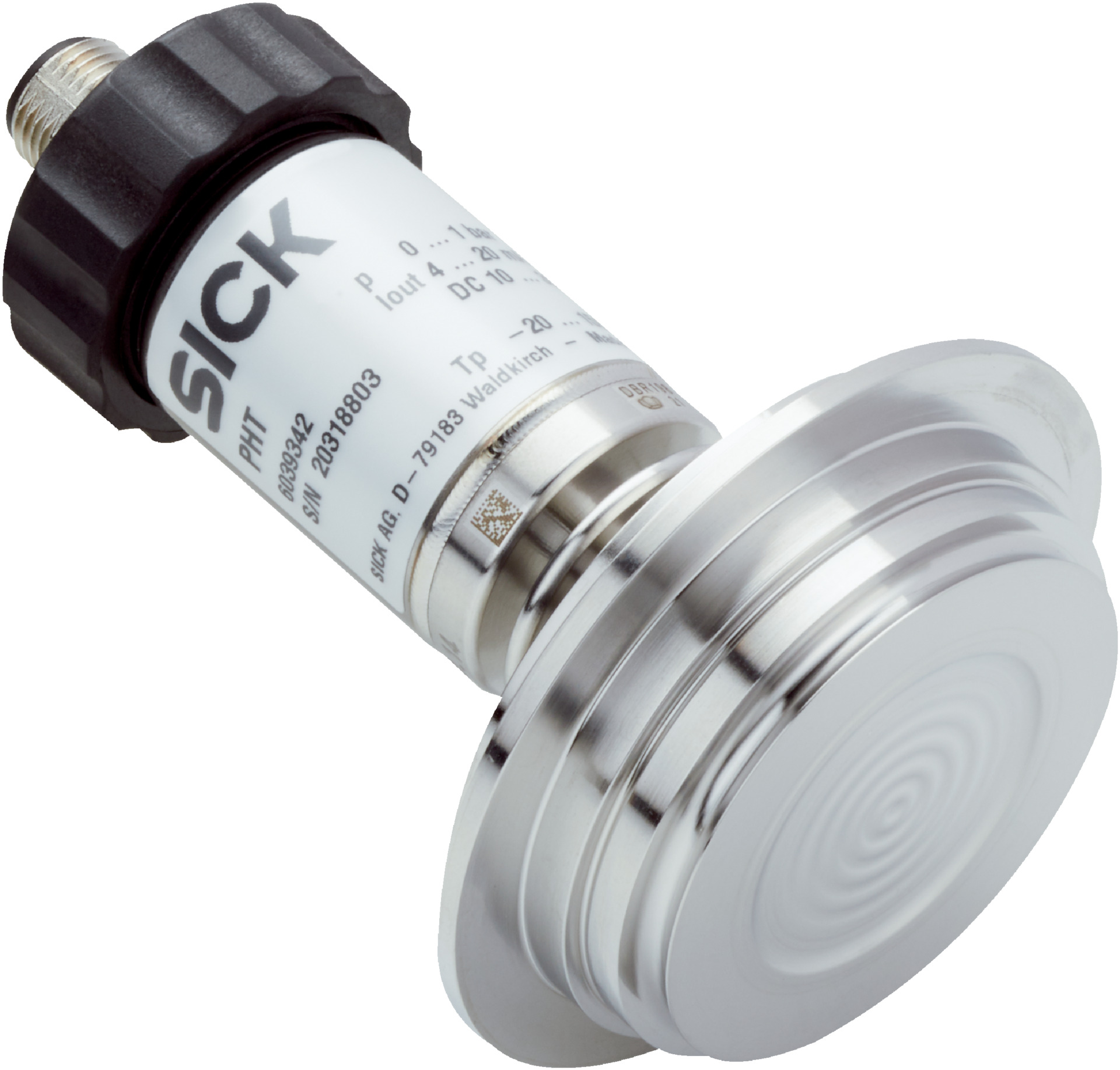

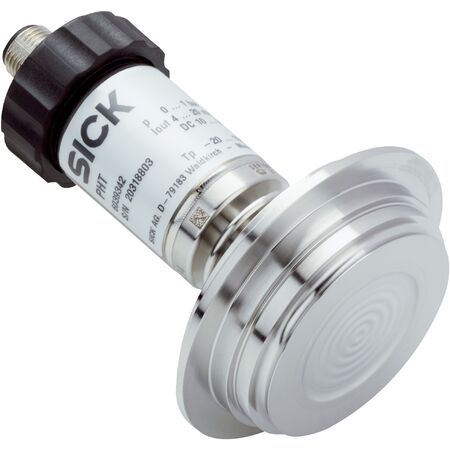

Pressure Transmitter PHT-RBX25SVF0S0AFT0Z | 0 to 0.25 Bar | IP67 Rated | 4-20mA Output | by SICK
The Pressure Transmitter PHT-RBX25SVF0S0AFT0Z measures gauge pressure from 0 to 0.25 bar, making it ideal for both liquid and gaseous media. With a robust stainless steel construction and an IP67 rating, this sensor is perfect for industrial process control and food industry applications, ensuring high accuracy and long-term stability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 0.25 bar
- Pressure type: Gauge pressure
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 11 V DC to 30 V DC
- Process connection: Varivent connection type F
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Response time: ≤ 10 ms
- Accuracy: ≤ ± 0.5 % of span (optional 0.25 %)
- Non-linearity: ≤ ± 0.2 % of span (BFSL)
- Non-repeatability: ≤ ± 0.1 % of span
- Long-term drift: ≤ 0.2 % of span per year
- MTTF: 403 years
- Dimensions (H x L x W): 100mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 bar to 0.25 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Varivent connection type F
- Wetted parts made of 316L stainless steel
- Housing made of stainless steel 1.4571
- IP67 rated enclosure for dust and water protection
- Overvoltage, short-circuit, and reverse polarity protection
- Long-term stability with ≤ 0.2 % span drift per year
- Fast response time ≤ 10 ms
- High accuracy ≤ ± 0.5 % of span (optional 0.25 %)
- MTTF of 403 years indicating high reliability
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal transmission fluid
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption with 4-20 mA output signal
- FDA approved synthetic oil ensures safe use in food industry applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PHT-RBX25SVF0S0AFT0Z Pressure Sensor is available now for immediate purchase. Ideal for industrial and food processing applications requiring precise gauge pressure measurement.
