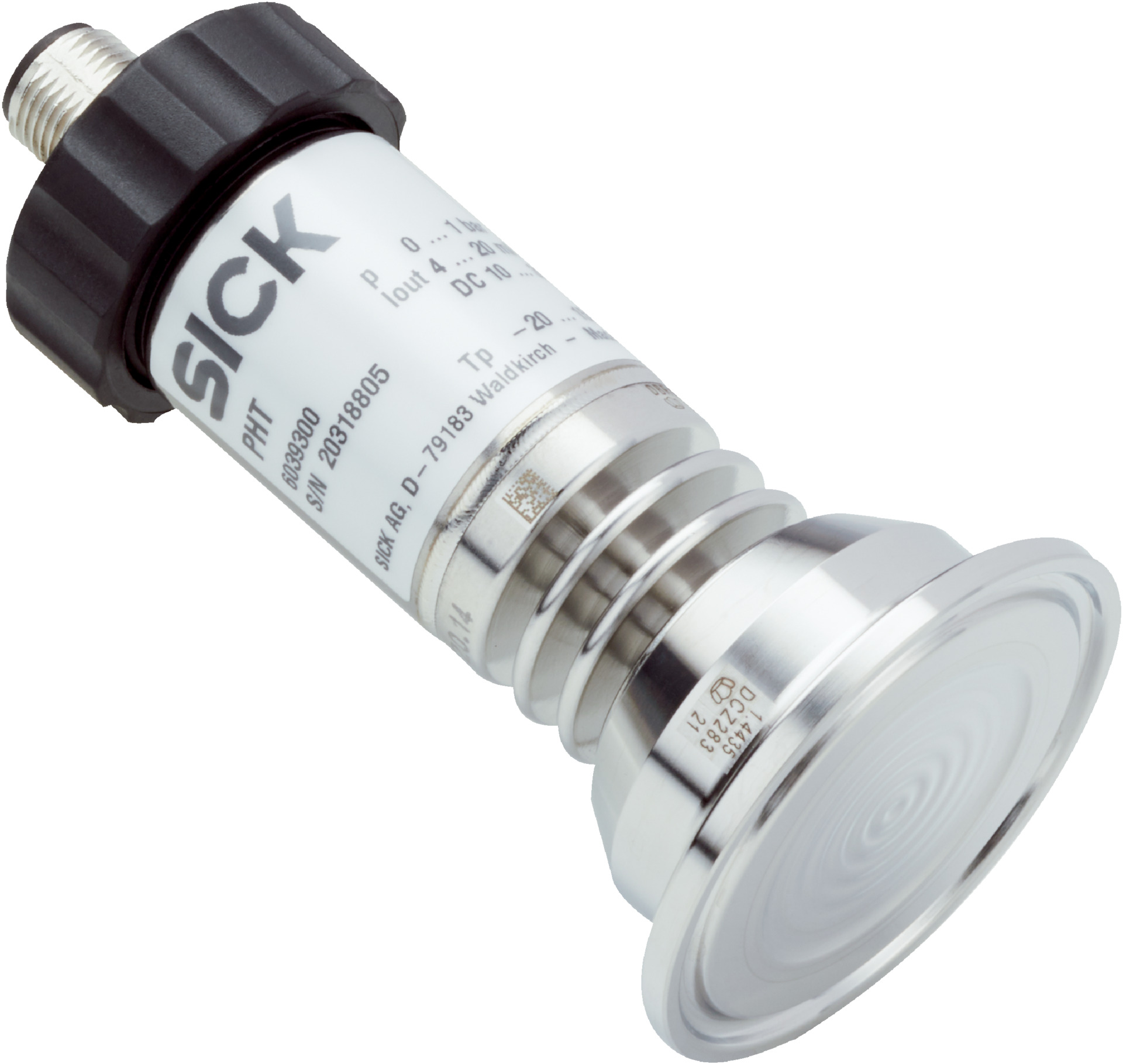

Pressure Transmitter PHT-RBX25SD40S0AMS0Z | 0 to 0.25 Bar Range | IP67 Rated | Stainless Steel Housing | by SICK
The Pressure Transmitter PHT-RBX25SD40S0AMS0Z is designed for precise gauge pressure measurement from 0 to 0.25 bar, making it ideal for industrial process control and food industry applications. With a robust stainless steel housing and an IP67 enclosure rating, it ensures durability and reliability in various environments. Its fast response time and high accuracy make it a top choice for professionals seeking dependable pressure monitoring solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 0.25 bar gauge pressure
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: Clamp (DIN 32676) DN 40
- Housing material: Stainless steel 1.4571
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Accuracy: ≤ ± 0.5 % of span (optional 0.25 %)
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2 % of span per year
- MTTF: 403 years
- Connection type: M12 round connector, 4-pin
- Dimensions (H x L x W): 100mm x 100mm x 40mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 bar to 0.25 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Clamp (DIN 32676) DN 40 process connection
- Housing made of stainless steel 1.4571 with IP67 enclosure rating
- Overvoltage, short-circuit, and reverse polarity protection
- High accuracy with ≤ ± 0.5 % of span, optional 0.25 %
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2 % drift per year
- MTTF of 403 years ensuring long service life
- FDA approved synthetic oil as internal transmission fluid
- M12 round connector, 4-pin connection type
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sealing and electrical connection according to industrial standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal transmission fluid
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long service life reduces waste and replacement frequency
- FDA approved synthetic oil ensures safe use in food industry without contamination
- Energy efficient 2-wire 4-20 mA output reduces power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PHT-RBX25SD40S0AMS0Z Pressure Sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise low-pressure measurement.
