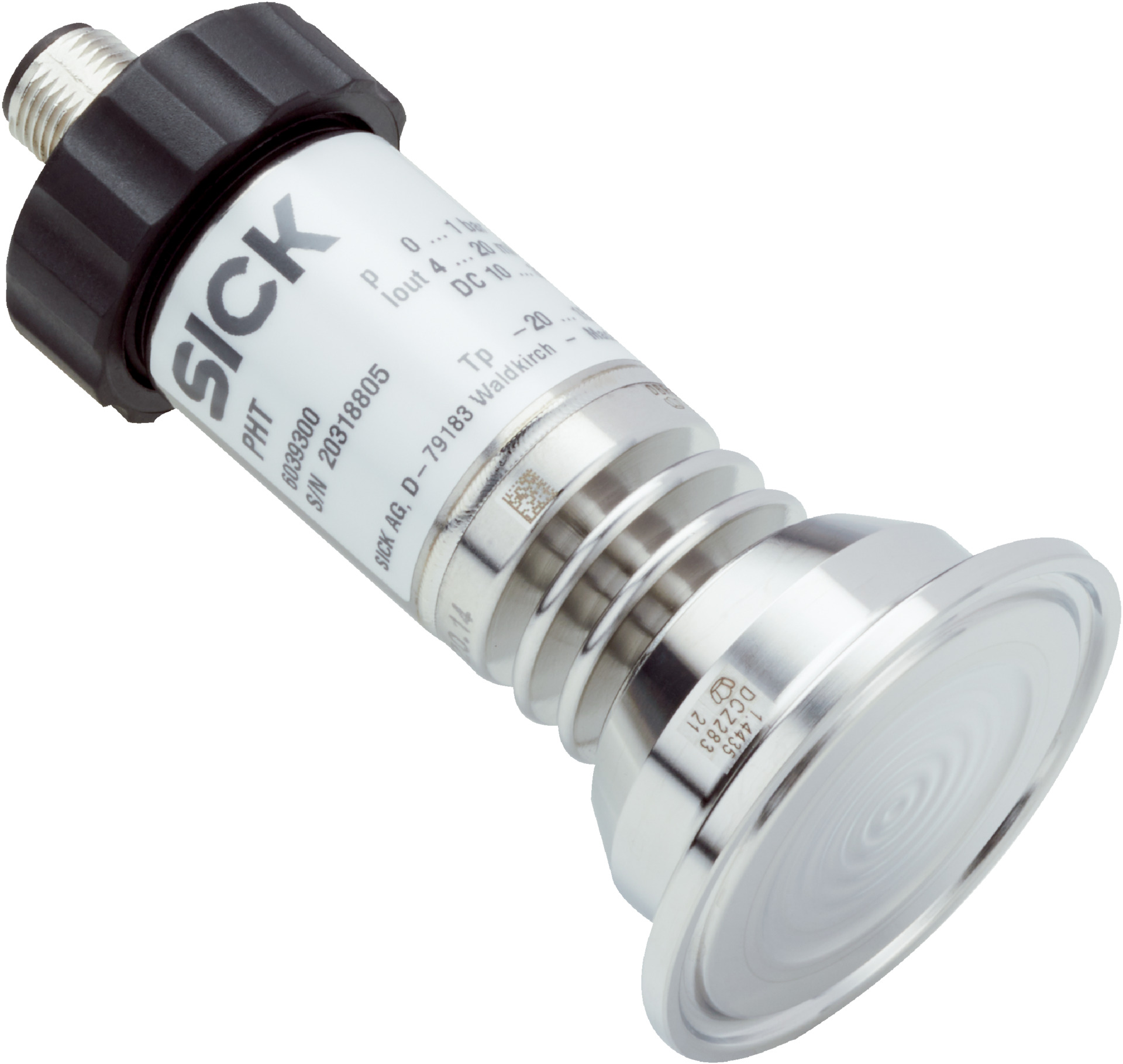

Pressure Transmitter PHT-RBX60SD30S0AMS0Z | 0 to 0.6 Bar Gauge Pressure | IP67 Rated | by SICK
The Pressure Transmitter PHT-RBX60SD30S0AMS0Z measures gauge pressure from 0 to 0.6 bar, making it ideal for both liquid and gaseous media. With a robust IP67 rating and FDA-approved internal transmission fluid, this sensor is perfect for industrial process control and food industry applications, ensuring high accuracy and reliability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 0.6 bar gauge pressure
- Process temperature range: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Maximum ohmic load RA: 4 mA to 20 mA, 2-wire (RA ≤ (L + – 10 V) / 0.02 A [Ohm])
- Process connection: Clamp (DIN 32676) DN 32
- Wetted parts: 316L stainless steel
- Internal transmission fluid: FDA approved synthetic oil
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Supply voltage: 10 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Dielectric strength: 500 V DC
- Enclosure rating: IP67
- Accuracy: ≤ ±0.5% of span (optional 0.25%)
- Non-linearity: ≤ ±0.2% of span (BFSL)
- Non-repeatability: ≤ ±0.1% of span
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2% of span per year
- Operating ambient temperature: -20 °C to +80 °C
- Storage temperature: -40 °C to +100 °C
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 100mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 bar to 0.6 bar
- Suitable for liquid and gaseous media
- Process connection: Clamp (DIN 32676) DN 32
- Wetted parts made of 316L stainless steel
- Internal transmission fluid is FDA approved synthetic oil
- Housing made of stainless steel 1.4571
- M12 round connector, 4-pin connection type
- Supply voltage range: 10 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- IP67 enclosure rating for dust and water protection
- High accuracy up to ±0.25% of span (optional)
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2% drift per year
- Shock and vibration resistant according to IEC standards
- Mean time to failure (MTTF) of 403 years
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor mounting and electrical connections to ensure safety and accuracy.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal transmission fluid
- Harsh environments requiring IP67 rated sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- FDA approved synthetic oil ensures safe use in food industry applications
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with 10 V DC to 30 V DC supply voltage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PHT-RBX60SD30S0AMS0Z Pressure Sensor is available for immediate purchase, ideal for industrial process control and food industry applications requiring precise gauge pressure measurement.
