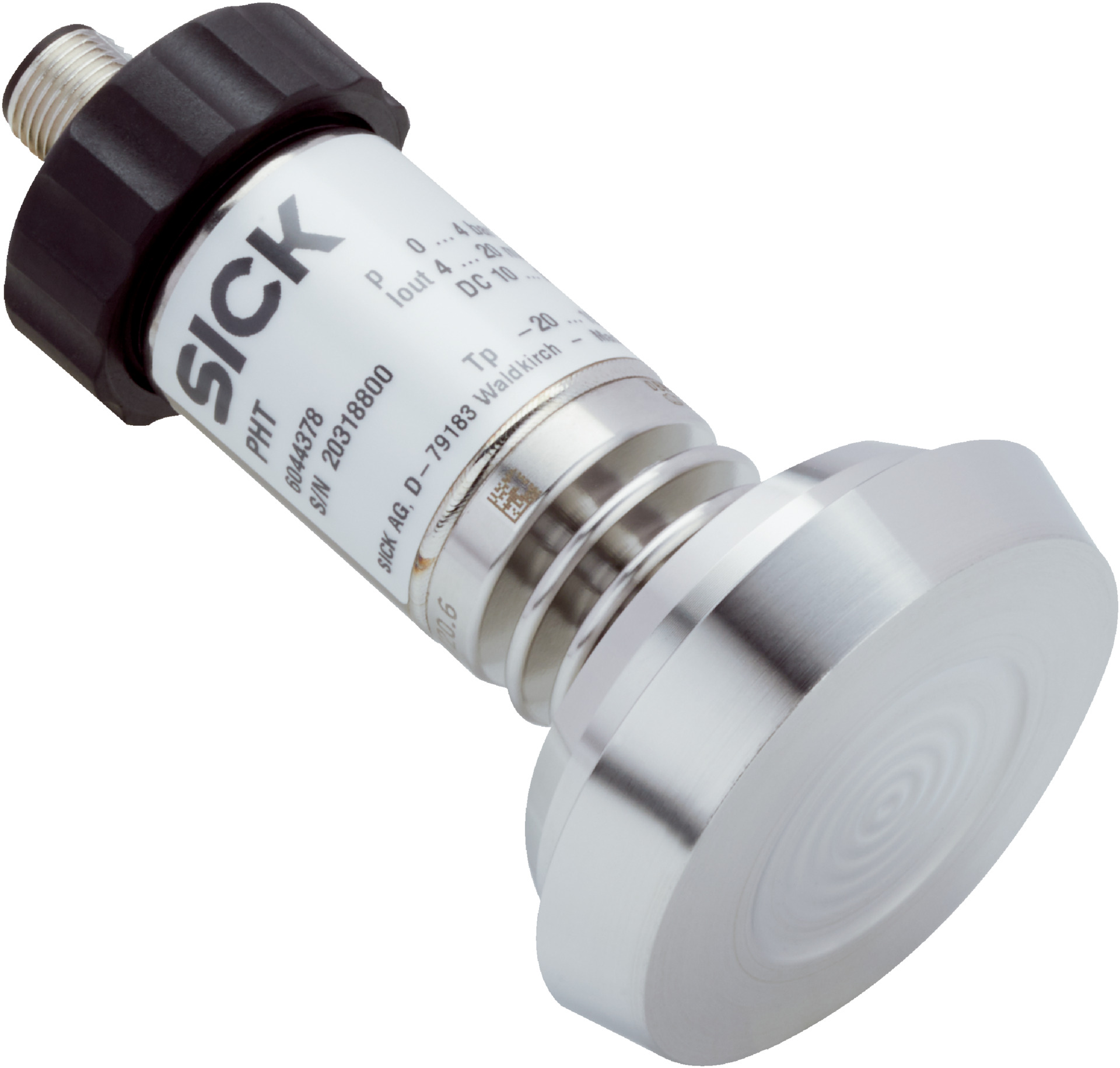

Pressure Transmitter PHT-RBX60S540S0AMS0Z | 0 to 0.6 Bar Gauge Pressure | IP67 Rated | by SICK
The Pressure Transmitter PHT-RBX60S540S0AMS0Z measures gauge pressure from 0 to 0.6 bar, making it ideal for both liquid and gaseous media. With a robust stainless steel construction and an IP67 rating, it ensures reliable performance in harsh environments. Designed for industrial process control and food industry applications, this sensor features a fast response time and high accuracy, ensuring precise pressure monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 0.6 bar gauge pressure
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Conical coupling (DIN 11851) DN 40 with union nut
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Supply voltage: 10 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Accuracy: ≤ ±0.5% of span (optional 0.25%)
- Non-linearity: ≤ ±0.2% of span (BFSL)
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2% of span per year
- Operating ambient temperature: –20 °C to +80 °C
- Storage temperature: –40 °C to +100 °C
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 120mm x 100mm x 60mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 bar to 0.6 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection with conical coupling (DIN 11851) DN 40 with union nut
- Wetted parts made of 316L stainless steel
- Housing made of stainless steel 1.4571
- M12 round connector, 4-pin connection type
- Supply voltage from 10 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- IP67 enclosure rating for dust and water protection
- Long-term stability with ≤ 0.2% span drift per year
- High accuracy with optional 0.25% of span
- Fast response time ≤ 10 ms
- MTTF of 403 years
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical safety standards to ensure proper connection and calibration.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal transmission fluid
- Harsh environments requiring IP67 rated protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with efficient 2-wire 4-20 mA output
- FDA approved synthetic oil ensures safe use in food industry without contamination
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PHT-RBX60S540S0AMS0Z pressure sensor is available for immediate purchase, ideal for industrial process control and food industry applications requiring precise gauge pressure measurement.
