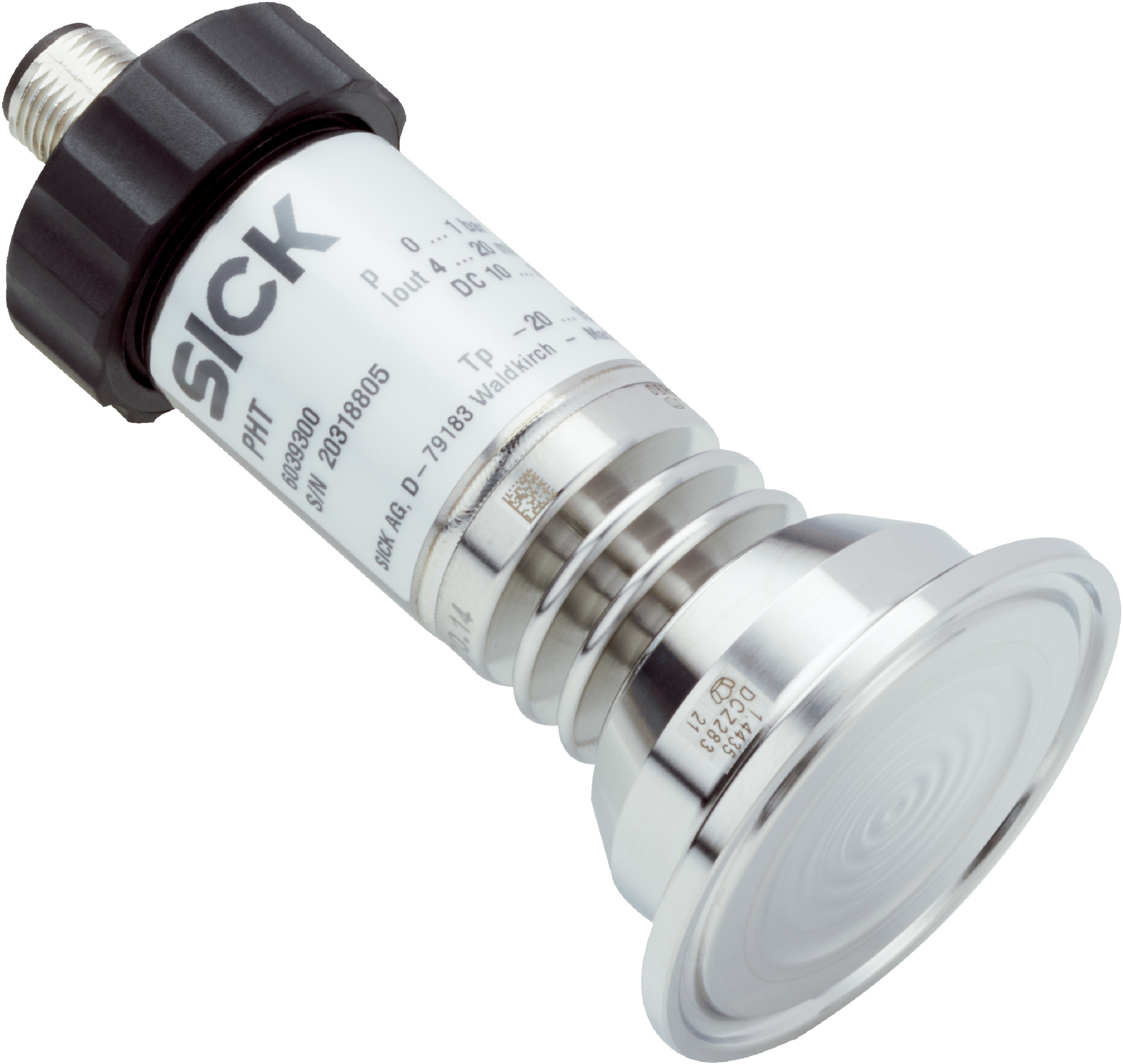

Pressure Transmitter PHT-RBX60SD30S0AFT0Z | 0 to 0.6 Bar Gauge Pressure | IP67 Rated | by SICK
The Pressure Transmitter PHT-RBX60SD30S0AFT0Z measures gauge pressure from 0 to 0.6 bar, making it ideal for both liquid and gaseous media. With a robust IP67 rated stainless steel housing and FDA approved internal fluid, this sensor is perfect for industrial process control and food industry applications, ensuring high accuracy and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 0.6 bar gauge pressure
- Process temperature range: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Clamp (DIN 32676) DN 32
- Wetted parts: 316L stainless steel
- Internal transmission fluid: FDA approved synthetic oil
- Housing material: Stainless steel 1.4571
- Supply voltage: 11 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Accuracy: ≤ ± 0.5% of span (optional 0.25%)
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2% of span per year
- Operating temperature: -20 °C to +80 °C
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 120mm x 60mm x 60mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 bar to 0.6 bar
- Suitable for liquid and gaseous media
- Process connection: Clamp (DIN 32676) DN 32
- Wetted parts made of 316L stainless steel
- Internal transmission fluid is FDA approved synthetic oil
- Stainless steel 1.4571 housing with field housing connection
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 11 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- IP67 rated enclosure for dust and water protection
- High accuracy with ≤ ± 0.5% of span, optional 0.25%
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2% drift per year
- Wide operating temperature range from -20 °C to +80 °C
- Shock and vibration resistant according to IEC standards
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with pressure sensor devices and electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal fluid
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- FDA approved synthetic oil ensures safe use in food industry applications
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient 2-wire 4-20 mA output
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PHT-RBX60SD30S0AFT0Z Pressure Sensor is available for immediate purchase, ideal for industrial process control and food industry applications requiring precise gauge pressure measurement.
