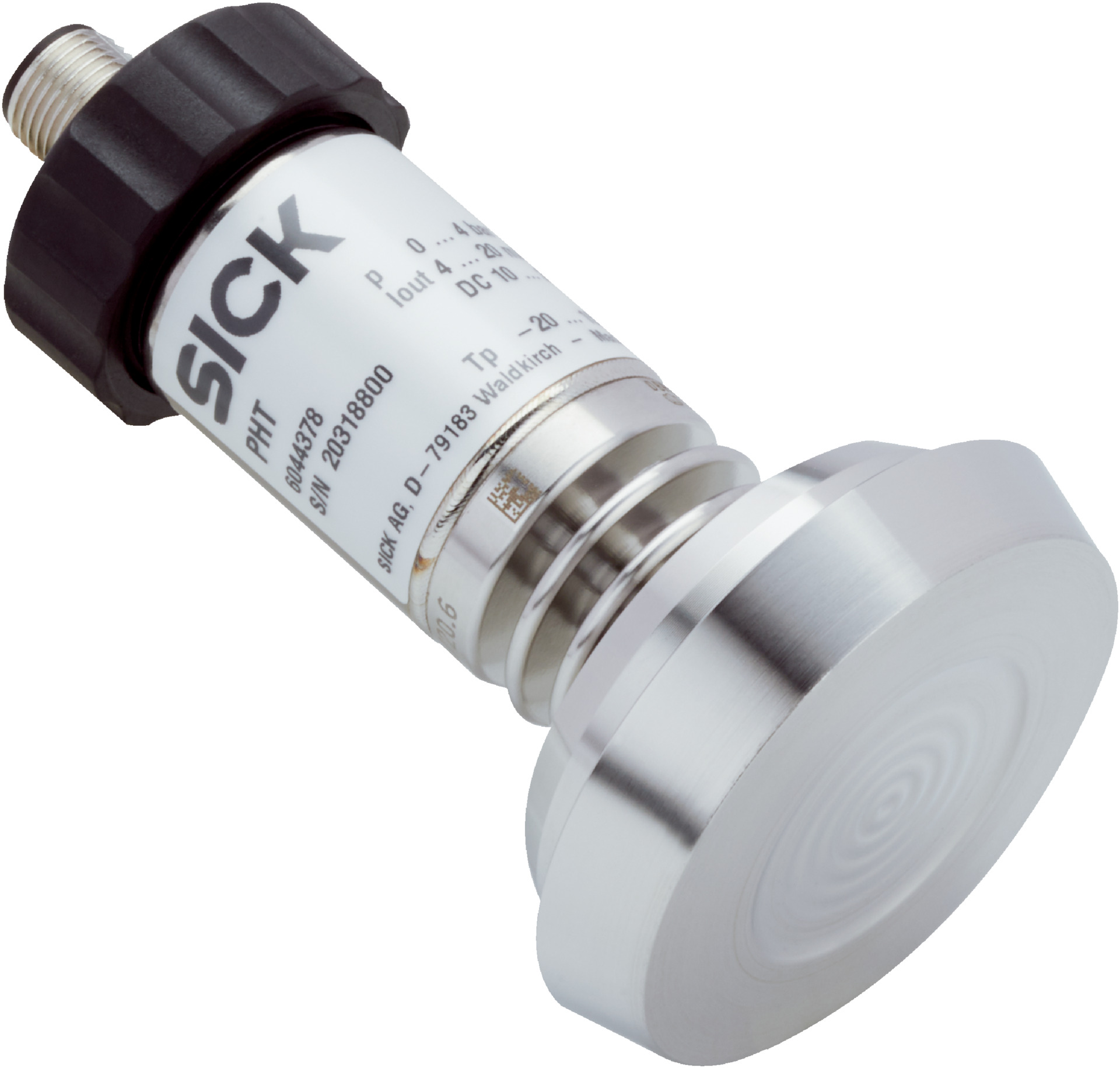

Pressure Transmitter PHT-RBX60S540S0AFT0Z | 0 to 0.6 Bar Gauge Pressure | IP67 Rated | by SICK
The Pressure Transmitter PHT-RBX60S540S0AFT0Z measures gauge pressure from 0 to 0.6 bar, making it ideal for both liquid and gaseous media. With a process temperature range of -20 °C to +150 °C and an IP67 enclosure rating, this sensor is built for industrial process control and food industry applications, ensuring high accuracy and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 0.6 bar gauge pressure
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Conical coupling (DIN 11851) DN 40 with union nut
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Supply voltage: 11 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Accuracy: ≤ ± 0.5 % of span (optional 0.25 %)
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2 % of span per year
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 120mm x 150mm x 60mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 bar to 0.6 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection with conical coupling (DIN 11851) DN 40 with union nut
- Wetted parts made of 316L stainless steel
- Housing made of stainless steel 1.4571 with field housing connection
- Supply voltage from 11 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- Enclosure rating IP67 for dust and water protection
- High accuracy with ≤ ± 0.5 % of span, optional 0.25 %
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2 % drift per year
- Shock and vibration resistant according to IEC standards
- FDA approved synthetic oil as internal transmission fluid
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor mounting and electrical connections to ensure safety and accuracy.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food and beverage industry due to FDA approved internal transmission fluid
Standards & Compliance
- Complies with AS/NZS 61010 for electrical equipment safety in measurement and control
Environmental Benefits
- Durable stainless steel housing ensures long product life reducing waste
- FDA approved synthetic oil supports safe use in food industry minimizing contamination risks
- Low power consumption with efficient 2-wire 4-20 mA output
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PHT-RBX60S540S0AFT0Z Pressure Sensor is available for immediate purchase, ideal for industrial process control and food industry applications requiring precise gauge pressure measurement.
