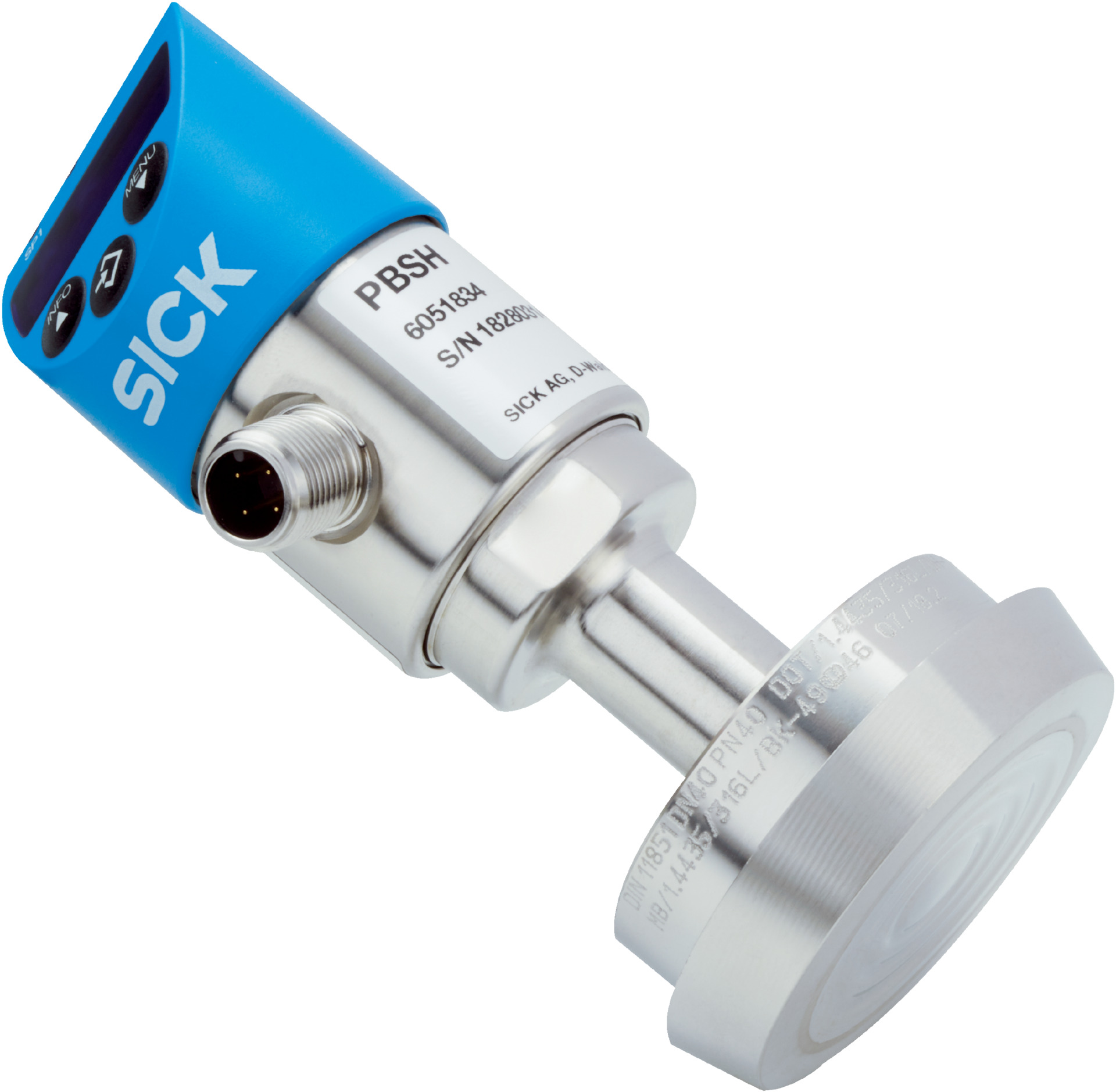

Pressure Transmitter PBSH-RB1X6S54S0BMA0Z | 0 to 1.6 Bar Gauge Pressure | IP65/IP67 Rated | by SICK
The PBSH-RB1X6S54S0BMA0Z Pressure Transmitter is designed for precise gauge pressure measurement from 0 to 1.6 bar, featuring a robust IP65/IP67 enclosure for dust and water protection. Ideal for industrial process control and food applications, it boasts a 14-segment blue LED display that can be rotated 180° for easy visibility, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 1.6 bar gauge pressure
- Overpressure safety: 2-fold
- Process temperature range: -20 °C to +100 °C
- Output signal: 1 x PNP + 4 mA to 20 mA
- Display: 14-segment blue LED, 4 digits, height 9 mm, rotatable 180°
- Process connection: Conical coupling (DIN 11851) DN 40 with union nut
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Medical white oil, FDA compliant
- Supply voltage: 15 V DC to 35 V DC
- Power consumption: Max 70 mA
- Electrical safety: Protection class III, overvoltage protection 40 V DC, short-circuit and reverse polarity protection
- Enclosure rating: IP65 and IP67
- Accuracy: ≤ ±1% of span including all errors
- Non-linearity: ≤ ±0.5% BFSL
- Response time: 3 ms
- Long-term drift: ≤ ±0.2% per year
- Operating ambient temperature: -20 °C to +80 °C
- Dimensions (H x L x W): 120mm x 100mm x 80mm
- Weight: 1.2 kg
Key Features
- Measures gauge pressure from 0 to 1.6 bar with 2-fold overpressure safety
- 14-segment blue LED display, 4 digits, electronically rotatable by 180°
- Output signal: 1 x PNP + 4 mA to 20 mA
- Rotatable housing with up to 330° rotation for display and 320° for process connection
- Process connection: Conical coupling (DIN 11851) DN 40 with union nut
- Wetted parts made of 316L stainless steel with FDA compliant medical white oil
- Supply voltage range: 15 V DC to 35 V DC with max power consumption 70 mA
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- Enclosure rating IP65 and IP67 for dust and water protection
- High accuracy ≤ ±1% of span and non-linearity ≤ ±0.5% BFSL
- Fast response time of 3 ms and long-term stability with ≤ ±0.2% drift per year
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection, calibration, and compliance with electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food and pharmaceutical industries due to FDA compliant internal fluid
- Harsh environments requiring IP65/IP67 rated sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption minimizes energy use
- FDA compliant internal fluid ensures safe use in food and pharmaceutical environments
Warranty Information
Standard manufacturer warranty of 12 months covering defects in materials and workmanship.
Available Now
The SICK PBSH-RB1X6S54S0BMA0Z Pressure Sensor is available for immediate purchase, ideal for industrial process control and food-grade pressure measurement applications.
