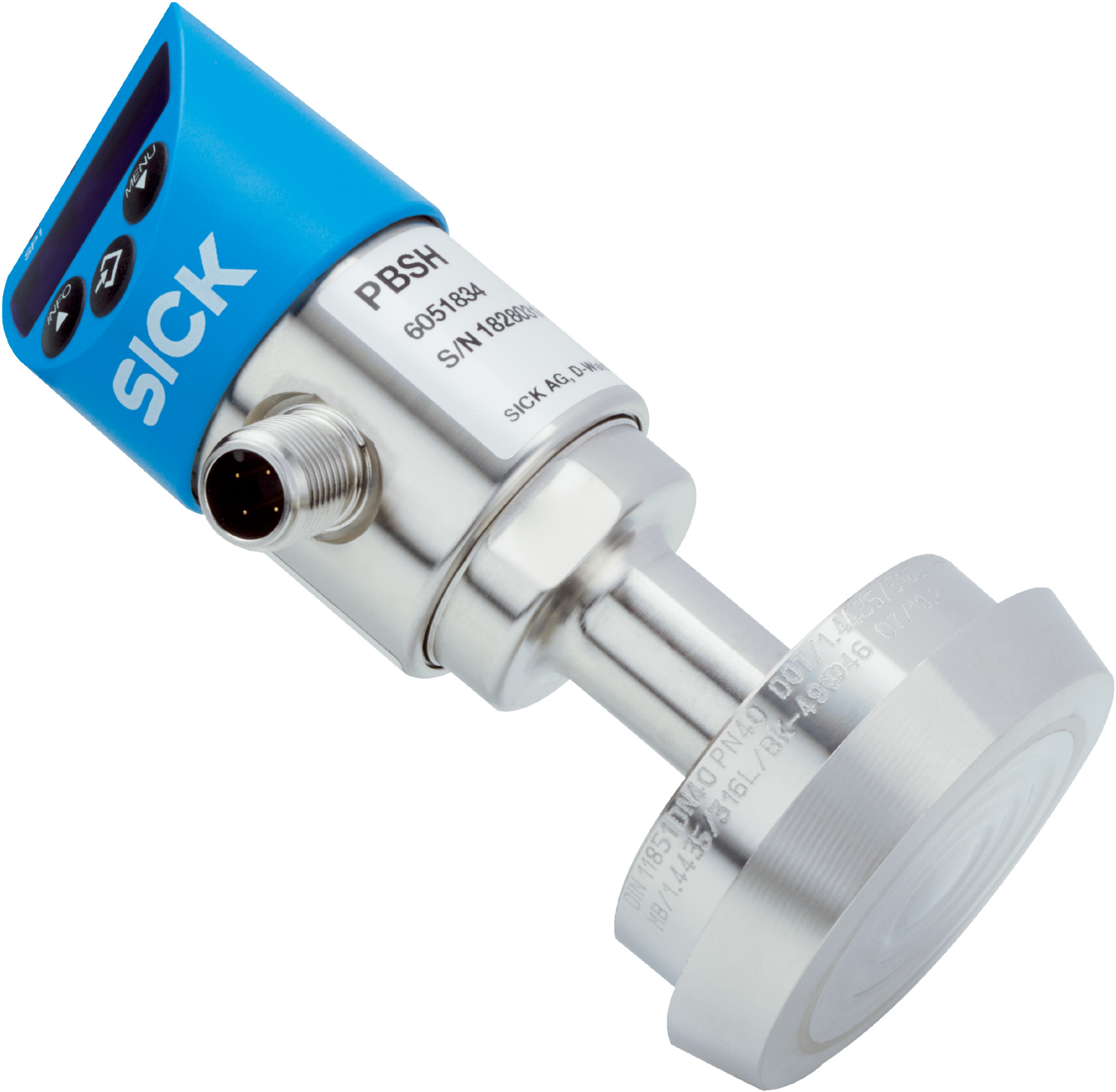

Pressure Transmitter PBSH-RB1X0S54S0NMA0Z | 0 to 1 Bar Gauge Pressure | IO-Link & PNP Output | 14-Segment LED Display | by SICK
The PBSH-RB1X0S54S0NMA0Z pressure transmitter is designed for precise gauge pressure measurement from 0 to 1 bar, featuring a robust stainless steel construction and a 14-segment blue LED display that can be rotated 180°. Ideal for industrial process control and food safety applications, this sensor offers IO-Link and PNP output signals, ensuring easy integration into automation systems while maintaining high accuracy and compliance with FDA standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 1 bar gauge pressure
- Overpressure safety: 2-fold
- Process temperature range: –20 °C to +100 °C
- Output signal: IO-Link/PNP + 4 mA to 20 mA
- Display: 14-segment blue LED, 4 digits, height 9 mm, electronically rotatable 180°
- Communication interface: IO-Link V1.1
- Process connection: Conical coupling (DIN 11851) DN 40 with union nut
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Medical white oil, FDA, USP, EP, JP compliant
- Housing material: Stainless steel 304 lower body, PC + ABS plastic head
- Connection type: M12 round connector, 4-pin
- Supply voltage: 15 V DC to 35 V DC
- Power consumption: Max 70 mA
- Electrical safety: Protection class III, overvoltage protection 40 V DC, short-circuit and reverse polarity protection
- Isolation voltage: 500 V DC
- Enclosure rating: IP65 and IP67
- Accuracy: ≤ ±1% of span including non-linearity, hysteresis, zero point and full scale error
- Response time: 3 ms
- Long-term drift: ≤ ±0.2% of span per year
- Operating ambient temperature: –20 °C to +80 °C
- Storage temperature: –20 °C to +80 °C
- Shock load: 50 g IEC 60068-2-27
- Vibration load: 10 g IEC 60068-2-6
- Dimensions (H x L x W): 120mm x 80mm x 60mm
- Weight: 1.2 kg
Key Features
- Measures gauge pressure from 0 to 1 bar with 2-fold overpressure safety
- Output signals include IO-Link and PNP with 4 mA to 20 mA current output
- Rotatable housing with 14-segment blue LED display, electronically turnable by 180°
- High accuracy of ≤ ±1% of span including non-linearity and hysteresis
- Robust stainless steel 316L wetted parts and medical white oil internal transmission fluid compliant with FDA and USP standards
- Communication interface IO-Link V1.1 for easy integration
- Protection class III with IP65 and IP67 enclosure ratings
- Short-circuit, reverse polarity, and overvoltage protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration, especially for integration with IO-Link systems.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in food and pharmaceutical industries
- Automation systems requiring precise gauge pressure measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with max 70 mA power usage
- Compliant with food safety standards minimizing contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PBSH-RB1X0S54S0NMA0Z pressure sensor is available for immediate purchase, ideal for industrial automation and food processing applications.
