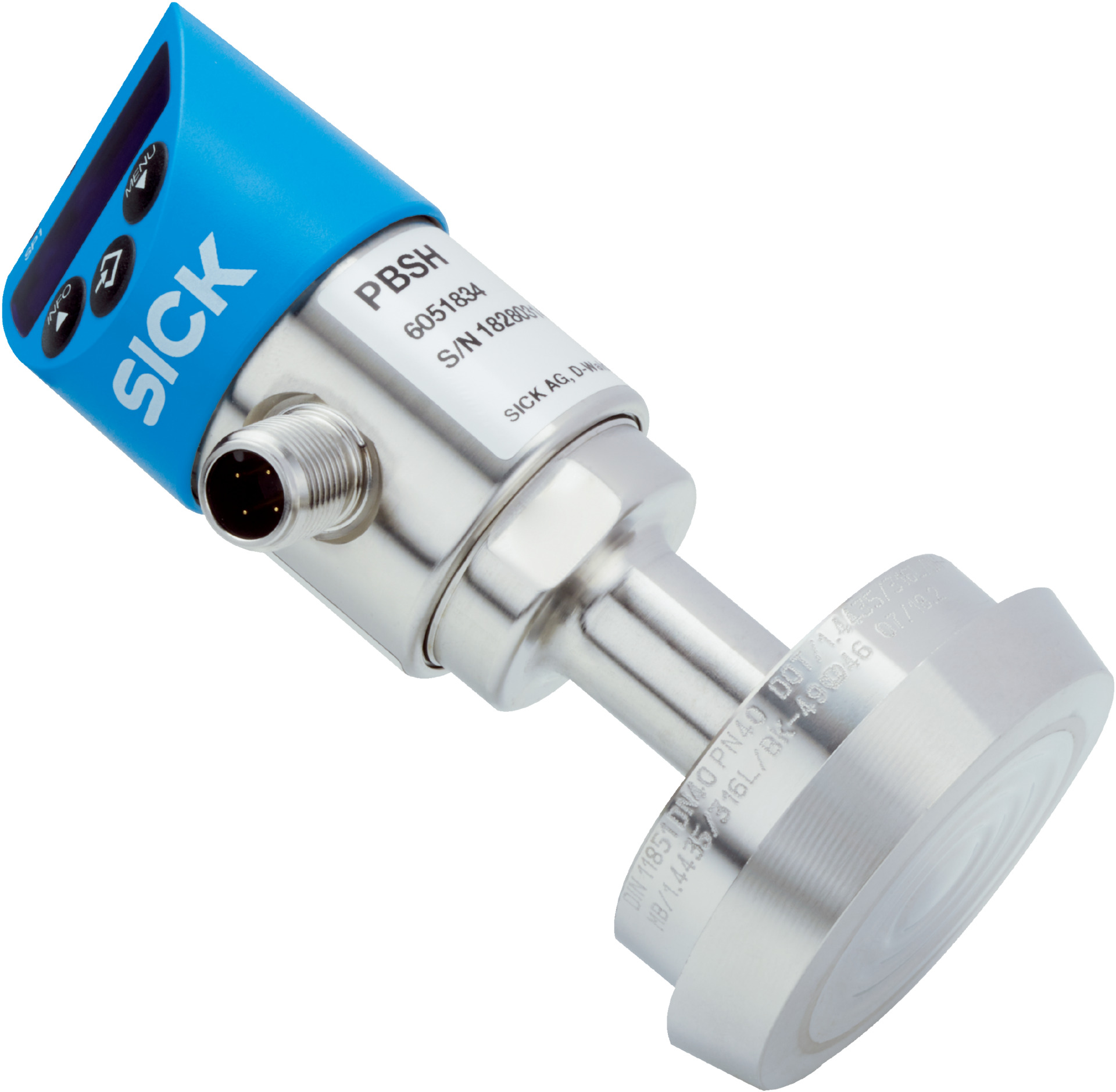

Pressure Transmitter PBSH-RB1X0S54S0D5A0Z | 0 to 1 Bar Gauge Pressure | IP65/IP67 Rated | by SICK
The PBSH-RB1X0S54S0D5A0Z Pressure Transmitter is designed for precise gauge pressure measurement in liquids and gases, featuring a measuring range of 0 to 1 bar and a robust IP65/IP67 enclosure. Ideal for industrial, food, and pharmaceutical applications, this sensor offers high accuracy of ≤ ±1% and a fast response time of just 3 ms, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 1 bar
- Overpressure safety: 2-fold
- Process temperature: -20 °C to +100 °C
- Maximum ohmic load RA: ≤ 0.5 kΩ for 4 mA to 20 mA output
- Zero point adjustment: Max. +3% of span
- Output signal: 2 x PNP + 4 mA to 20 mA
- Rotatable housing: Display can rotate 180°, housing can rotate up to 330°
- Display: 14-segment blue LED, 4 digits, 9 mm height
- Accuracy: ≤ ±1% of span including all errors
- Response time: 3 ms
- Long-term drift: ≤ ±0.2% of span per year
- Rated temperature range: 0 °C to +80 °C
- Supply voltage: 15 V DC to 35 V DC
- Power consumption: Max 70 mA
- Electrical safety: Protection class III, overvoltage and short-circuit protection
- Enclosure rating: IP65 and IP67
- Dimensions (H x L x W): 120mm x 60mm x 60mm
- Weight: 1.2 kg
Key Features
- Measures gauge pressure from 0 to 1 bar with 2-fold overpressure safety
- Output signals: 2 x PNP and 4 mA to 20 mA
- Rotatable housing with 14-segment blue LED display, electronically turnable by 180°
- High accuracy ≤ ±1% of span including non-linearity and hysteresis
- Fast response time of 3 ms
- Robust stainless steel 316L wetted parts and medical white oil internal transmission fluid compliant with FDA, USP, EP, and JP
- Protection class III with overvoltage, short-circuit, and reverse polarity protection
- Enclosure rating IP65 and IP67 for harsh environments
- Operating temperature range from -20 °C to +80 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of gauge pressure in liquids and gases
- Industrial process control requiring precise pressure monitoring
- Food and pharmaceutical industries due to FDA compliant internal fluid
- Environments requiring robust IP65/IP67 rated sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption with max 70 mA power usage
- FDA compliant internal fluid ensures safe use in food and pharmaceutical environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PBSH-RB1X0S54S0D5A0Z Pressure Sensor is available for immediate purchase, ideal for industrial, food, and pharmaceutical pressure measurement applications.
