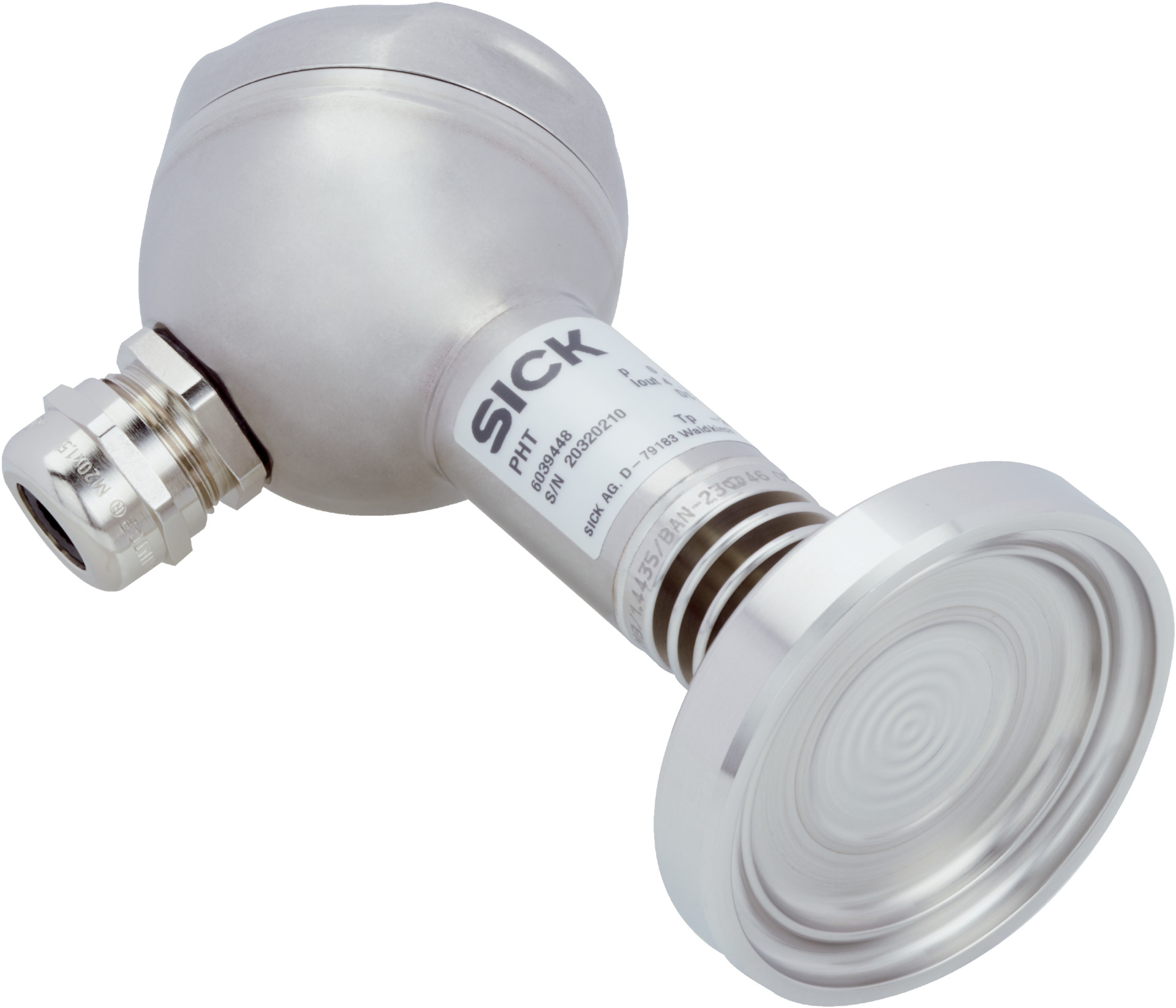

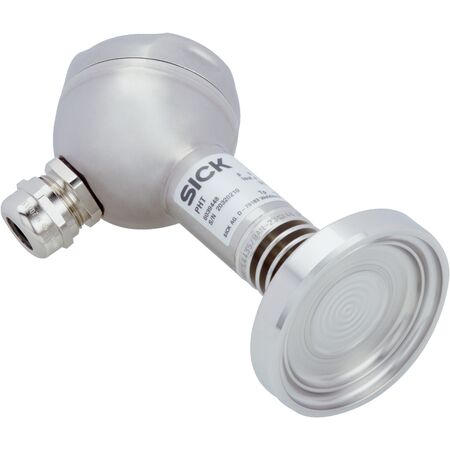

Pressure Transmitter PHT-RB1X0S640S0AFT0Z | 0 to 1 Bar Gauge Pressure | IP67 Rated | FDA Approved Internal Fluid | by SICK
The Pressure Transmitter PHT-RB1X0S640S0AFT0Z measures gauge pressure from 0 to 1 bar, making it ideal for both liquid and gaseous media. With a process temperature range of -20 °C to +150 °C and an output signal of 4 mA to 20 mA, this sensor is built for industrial process control and food industry applications, ensuring high accuracy and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 1 bar gauge pressure
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Coupling (DIN 11864-1) DN 40 form A with union nut
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Synthetic oil, FDA approved
- Housing material: Stainless steel 1.4571
- Supply voltage: 11 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Accuracy: ≤ ± 0.5 % of span (optional 0.25 %)
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2 % of span per year
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 120mm x 100mm x 60mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 bar to 1 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Coupling (DIN 11864-1) DN 40 form A with union nut
- Wetted parts made of 316L stainless steel
- Housing material: Stainless steel 1.4571
- Supply voltage: 11 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- Enclosure rating IP67 for dust and water protection
- High accuracy ≤ ± 0.5 % of span, optional 0.25 %
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2 % span drift per year
- Shock and vibration resistant according to IEC standards
- FDA approved synthetic oil as internal transmission fluid
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and calibration.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal fluid
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing ensures long product life reducing waste
- Low power consumption with 4-20 mA output signal
- FDA approved internal fluid suitable for hygienic applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PHT-RB1X0S640S0AFT0Z Pressure Sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise pressure measurement.
