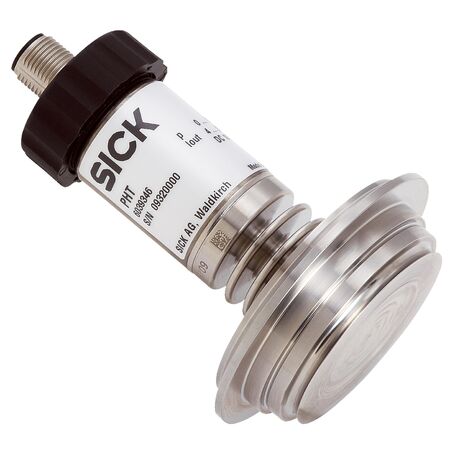

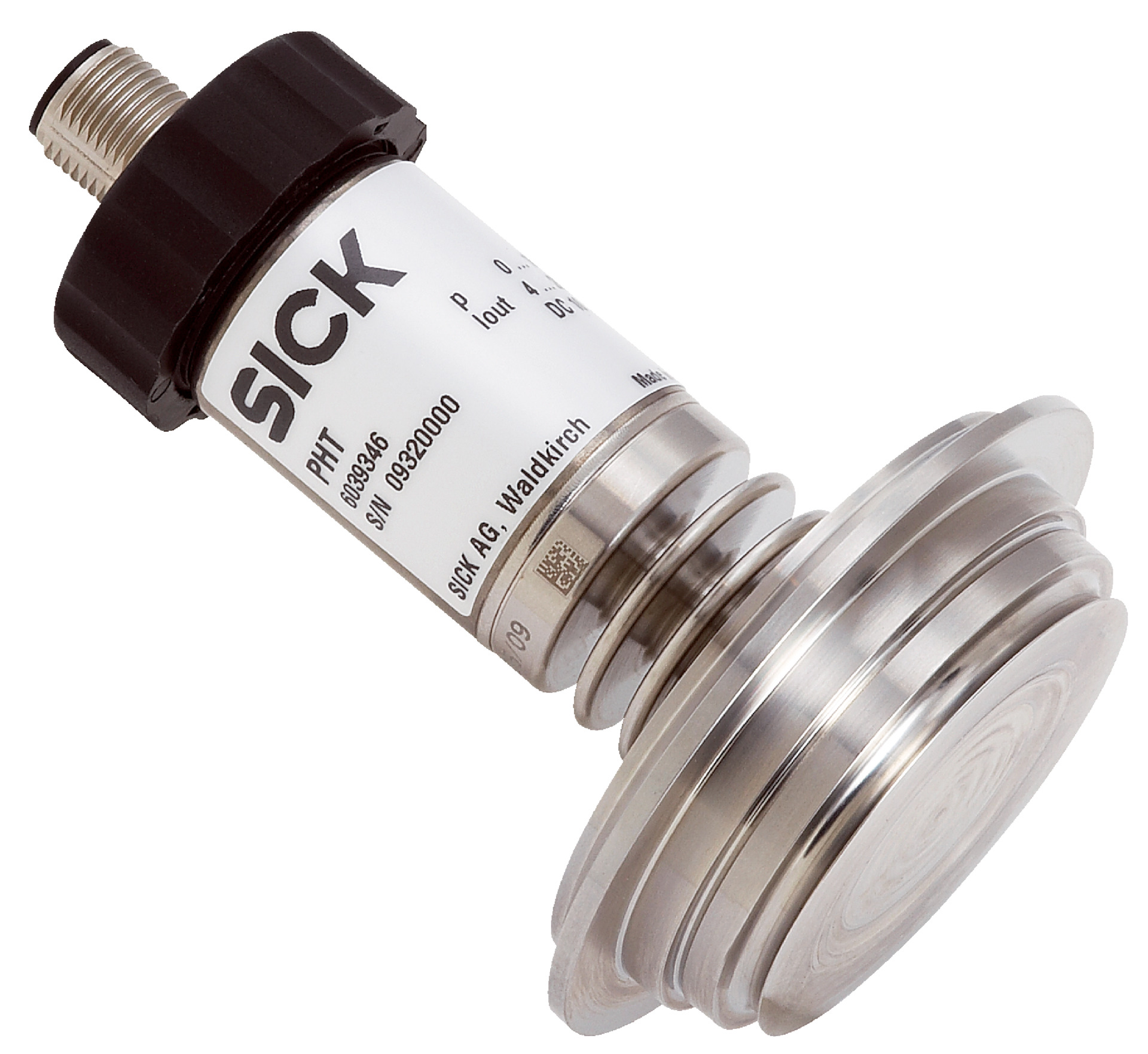

Pressure Transmitter PHT-RB1X0SDR0S0AMS0Z | 0 to 1 Bar Gauge Pressure | IP67 Rated | by SICK
The Pressure Transmitter PHT-RB1X0SDR0S0AMS0Z measures gauge pressure from 0 to 1 bar, making it ideal for both liquid and gaseous media. With a robust stainless steel housing and an IP67 rating, this sensor is perfect for industrial process control and food industry applications, ensuring precise monitoring even in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 1 bar gauge pressure
- Process temperature: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: DRD Connector with clamping elements
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Non-linearity: ≤ ± 0.2 % of span (BFSL)
- Accuracy: ≤ ± 0.5 % of span (optional 0.25 %)
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2 % of span per year
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 80mm x 100mm x 30mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 1 bar
- Suitable for liquid and gaseous media
- Process temperature range from -20 °C to +150 °C
- Output signal 4 mA to 20 mA, 2-wire
- Stainless steel 1.4571 housing with 316L stainless steel wetted parts
- M12 round connector, 4-pin connection type
- Overvoltage, short-circuit, and reverse polarity protection
- IP67 enclosure rating for dust and water resistance
- Long-term stability with ≤ 0.2 % span drift per year
- Fast response time ≤ 10 ms
- High accuracy up to ± 0.25 % of span (optional)
- Shock and vibration resistant according to IEC standards
- FDA approved synthetic oil as internal transmission fluid
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of gauge pressure in liquids and gases
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal fluid
- Harsh environments requiring IP67 rated sensors
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption with 4-20 mA output signal
- FDA approved internal fluid ensures safe use in food industry applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PHT-RB1X0SDR0S0AMS0Z Pressure Sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise pressure measurement.
