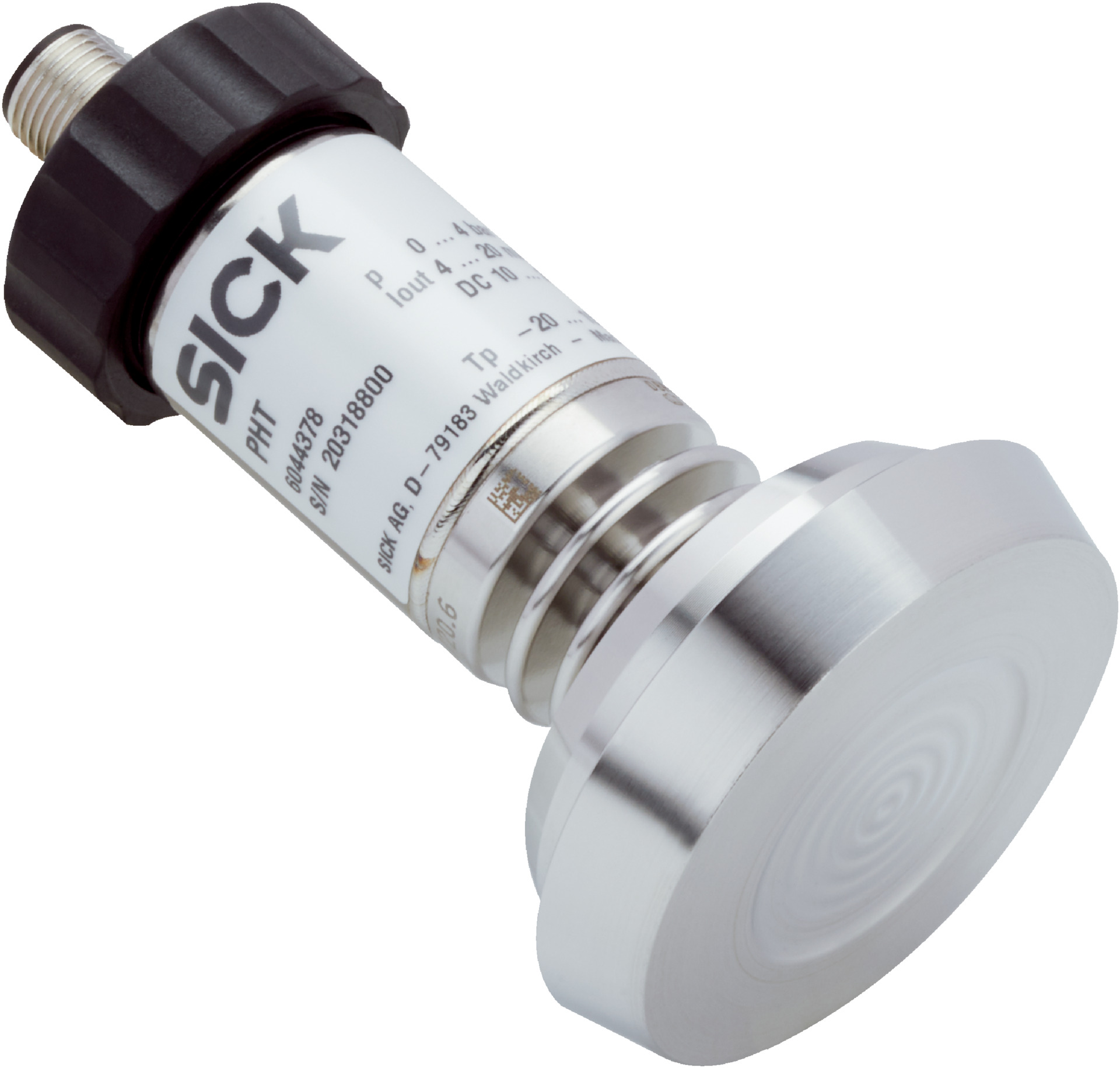

Pressure Transmitter PHT-RB1X0S550S0AMS0Z | 0 to 1 Bar Gauge Pressure | IP67 Rated | Stainless Steel Housing | by SICK
The Pressure Transmitter PHT-RB1X0S550S0AMS0Z measures gauge pressure from 0 to 1 bar, making it ideal for industrial process control and food industry applications. With a process temperature range of -20 °C to +150 °C and an IP67 enclosure rating, this sensor ensures reliable performance in demanding environments. Its durable stainless steel construction and high accuracy of ± 0.5% of span provide long-term stability and precision for liquid and gaseous media.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 1 bar gauge pressure
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Conical coupling (DIN 11851) DN 50 with union nut
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Supply voltage: 10 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Accuracy: ≤ ± 0.5 % of span (optional 0.25 %)
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2 % of span per year
- MTTF: 403 years
- Dimensions (H x L x W): 120mm x 150mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 bar to 1 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Conical coupling (DIN 11851) DN 50 with union nut
- Wetted parts made of 316L stainless steel
- Housing made of stainless steel 1.4571
- M12 round connector, 4-pin
- Supply voltage: 10 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- Enclosure rating IP67 for dust and water protection
- Long-term stability with ≤ 0.2 % span drift per year
- High accuracy up to ± 0.25 % of span (optional)
- Fast response time ≤ 10 ms
- MTTF of 403 years
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical safety standards.
Applications
- Measurement of gauge pressure in liquids and gases
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal fluid
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing ensures long product life reducing waste
- FDA approved synthetic oil minimizes environmental impact in food applications
- Low power consumption with efficient 2-wire 4-20 mA output
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PHT-RB1X0S550S0AMS0Z Pressure Sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise gauge pressure measurement.
