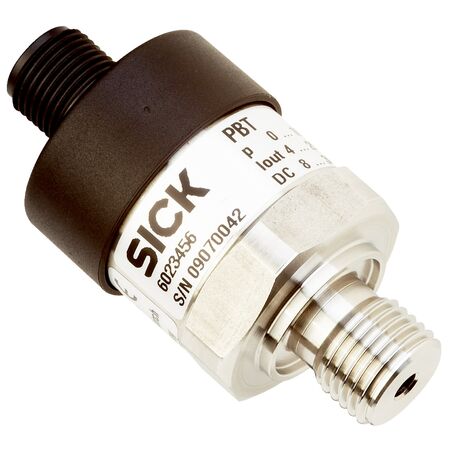

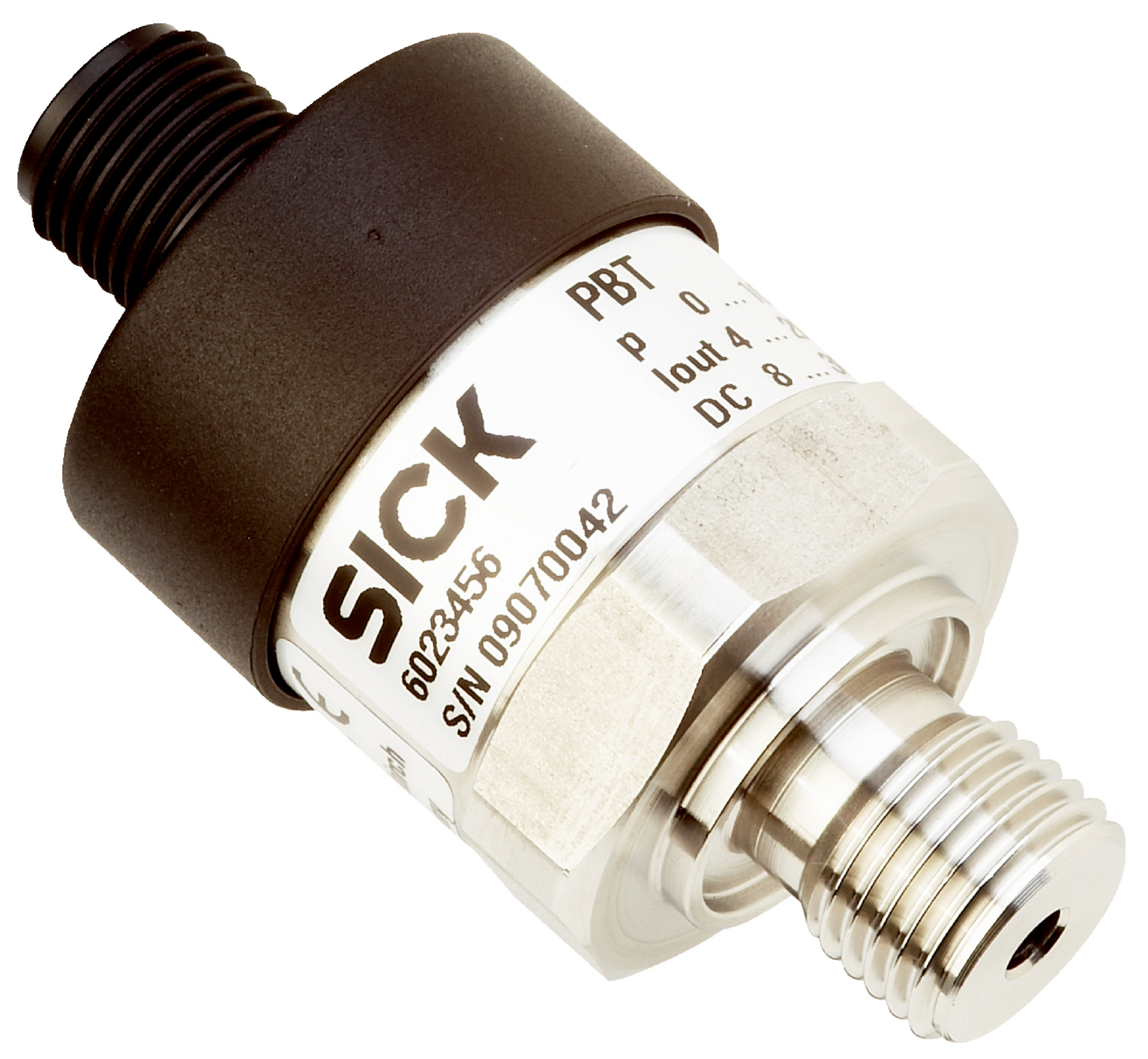

Pressure Transmitter PBT-RB1X0SN1SS0AMA0Z | 0 to 1 Bar Gauge Pressure | IP67 Rated | Stainless Steel | by SICK
The Pressure Transmitter PBT-RB1X0SN1SS0AMA0Z measures gauge pressure from 0 to 1 bar, making it ideal for industrial process control of liquid and gaseous media. With a fast response time under 4 ms and high accuracy of ≤ ±1% span, this stainless steel sensor ensures reliable performance in hydraulic and pneumatic systems. Its IP67 rating provides protection against dust and water, ensuring durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 1 bar gauge pressure
- Process temperature range: 0 °C to +80 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 8 V DC to 30 V DC
- Accuracy: ≤ ±1% of span including non-linearity, hysteresis, zero and full scale error
- Response time: < 4 ms
- Enclosure rating: IP67
- Material: Stainless steel 316L for wetted parts and housing
- Connection type: M12 round 4-pin connector
- Overvoltage protection: 32 V DC to 36 V DC
- Shock load resistance: 500 g
- Vibration load resistance: 10 g standard, 20 g optional
- Dimensions (H x L x W): 80mm x 80mm x 30mm
- Weight: 0.1 kg
Key Features
- Measures gauge pressure from 0 to 1 bar
- Suitable for liquid and gaseous media
- Stainless steel 316L wetted parts and housing for durability
- Output signal: 4 mA to 20 mA, 2-wire
- High accuracy with ≤ ±1% span including non-linearity and hysteresis
- Fast response time under 4 ms
- IP67 rated enclosure for protection against dust and water
- Overvoltage, short-circuit, and reverse polarity protection
- M12 round 4-pin connector for easy electrical connection
- Long service life with minimum 100 million load cycles
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in hydraulic and pneumatic systems
- Automation systems requiring precise gauge pressure measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency in industrial applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PBT-RB1X0SN1SS0AMA0Z pressure sensor is available for immediate purchase, ideal for industrial and automation applications requiring precise pressure measurement.
