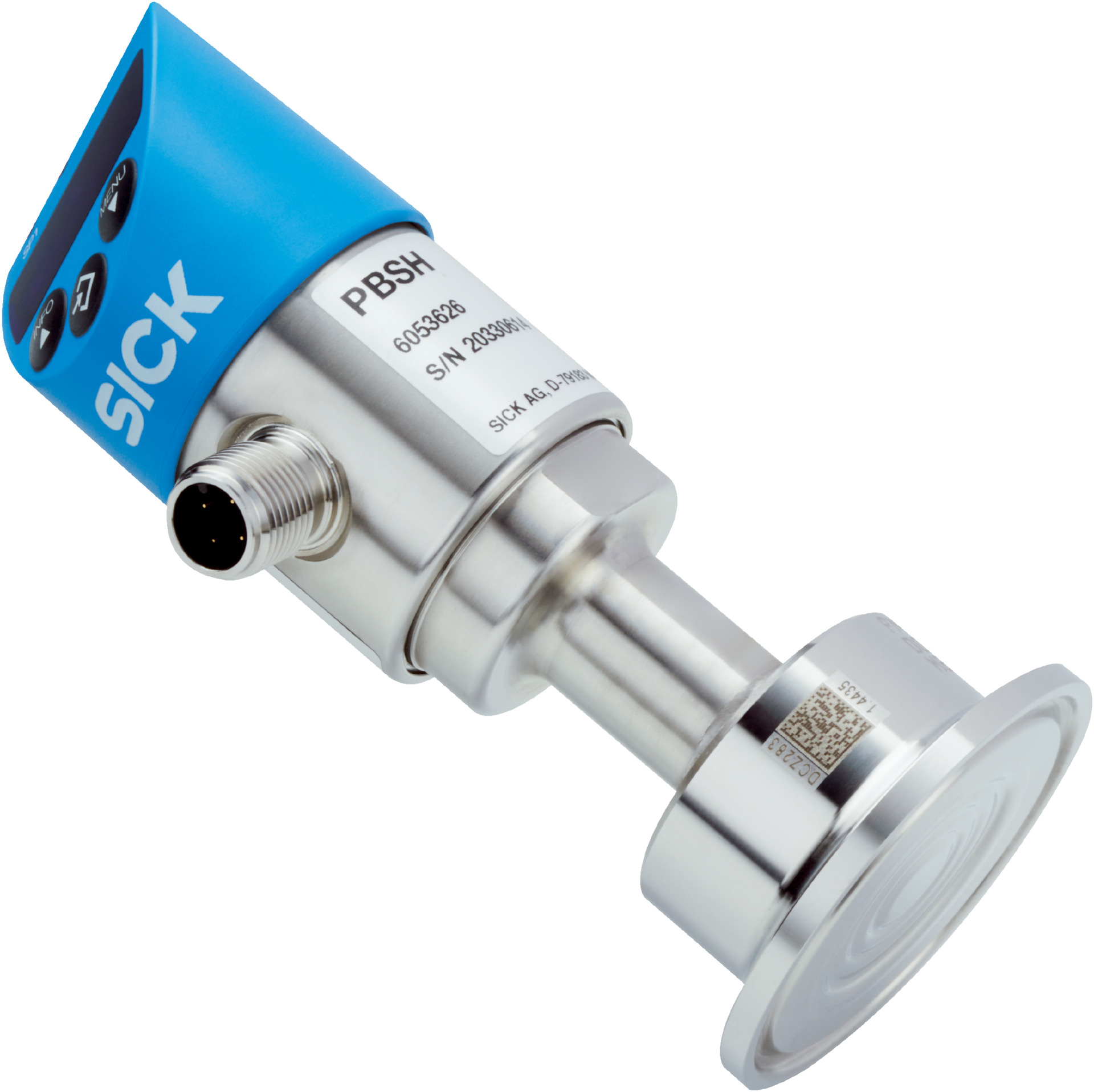

Pressure Transmitter PBSH-RB010SD3S0D5A0Z | 0 to 10 Bar Gauge Pressure | Dual Output Signals | IP65/IP67 Rated | by SICK
The PBSH-RB010SD3S0D5A0Z Pressure Transmitter is designed for precise gauge pressure measurement from 0 to 10 bar, making it ideal for industrial process monitoring in liquids and gases. With a fast response time of 3 ms and a robust IP65/IP67 rated stainless steel housing, this sensor ensures high accuracy and reliability in demanding environments, perfect for food and pharmaceutical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 10 bar gauge pressure
- Process temperature range: -20 °C to +100 °C
- Output signals: 2 x PNP + 4 mA to 20 mA
- Supply voltage: 15 V DC to 35 V DC
- Accuracy: ≤ ±1% of span including non-linearity, hysteresis, zero point and full scale error
- Response time: 3 ms
- Enclosure rating: IP65 and IP67
- Process connection: Clamp (DIN 32676) DN 32
- Wetted parts: 316L stainless steel
- Display: 14-segment blue LED, 4 digits, height 9 mm, rotatable 180°
- Electrical safety: Protection class III, overvoltage protection 40 V DC, short-circuit and reverse polarity protection
- Dimensions (H x L x W): 120mm x 70mm x 70mm
- Weight: 1.2 kg
Key Features
- Measures gauge pressure from 0 to 10 bar
- Dual output signals: 2 x PNP and 4 mA to 20 mA
- Rotatable 14-segment blue LED display, electronically turnable by 180°
- High accuracy with ≤ ±1% of span including non-linearity and hysteresis
- Robust stainless steel 316L wetted parts and housing with IP65/IP67 rating
- Overpressure safety 2-fold
- Fast response time of 3 ms
- Electrical protections including overvoltage, short-circuit, and reverse polarity
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial process monitoring for liquids and gases
- Pressure measurement in food and pharmaceutical industries
- Gauge pressure monitoring in manufacturing plants
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with max 70 mA operational current
- Compliant with food contact material standards reducing contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK PBSH-RB010SD3S0D5A0Z Pressure Sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise gauge pressure measurement.
