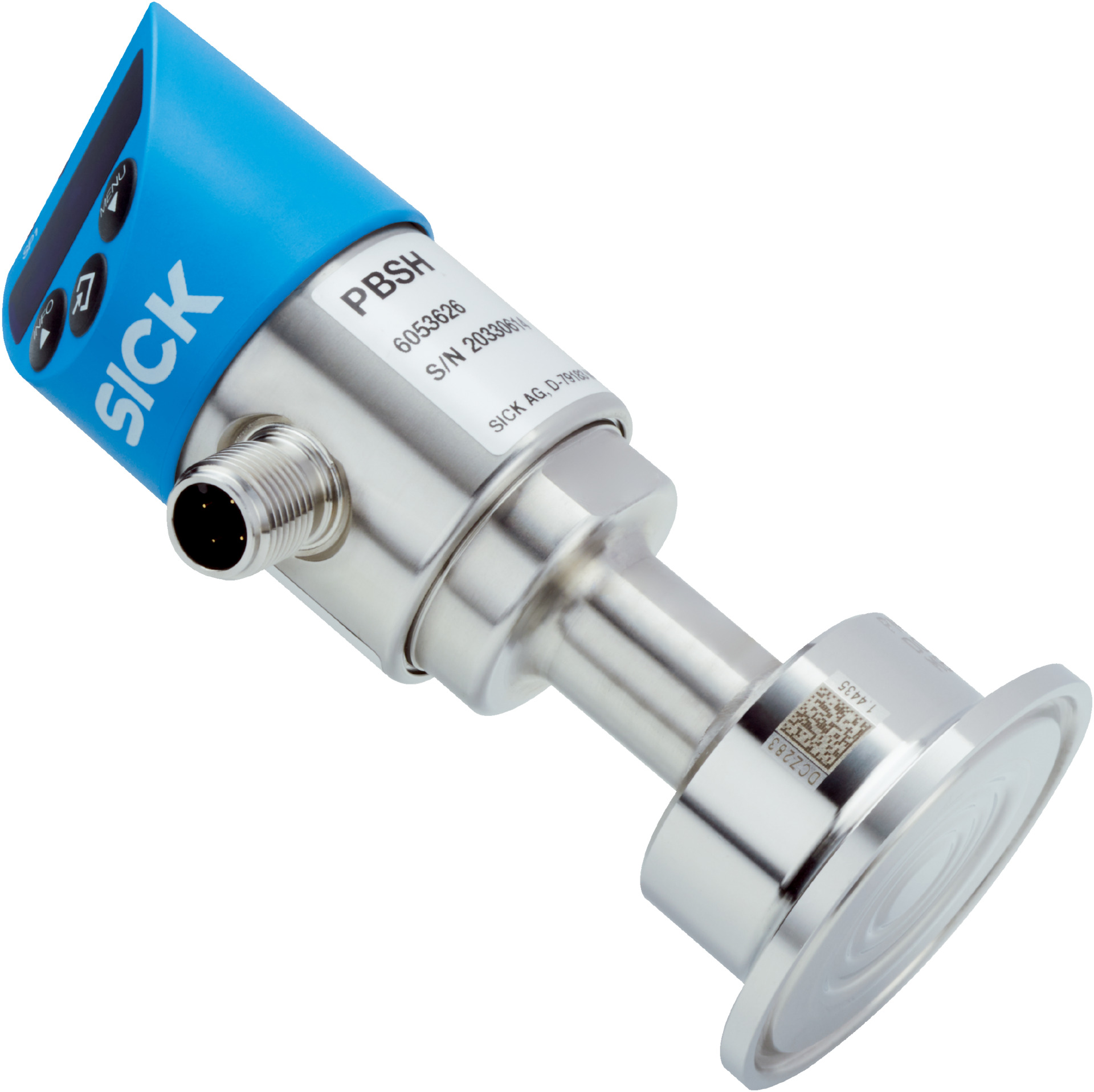

Pressure Transmitter PBSH-RB010SD4S0BMA0Z | 0 to 10 Bar Gauge Pressure | Dual Output & Rotatable LED Display | by SICK
The PBSH-RB010SD4S0BMA0Z Pressure Transmitter is designed for precise gauge pressure measurement from 0 to 10 bar, making it ideal for industrial process monitoring. With a dual output of 1 x PNP and 4 mA to 20 mA, and a rotatable 14-segment blue LED display, it ensures high accuracy and visibility in various applications, including food and pharmaceutical industries. Built with robust 316L stainless steel, it offers durability and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 10 bar gauge pressure
- Output signal: 1 x PNP + 4 mA to 20 mA
- Process connection: Clamp (DIN 32676) DN 40
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Medical white oil, FDA compliant
- Supply voltage: 15 V DC to 35 V DC
- Power consumption: Max 70 mA
- Electrical safety: Protection class III, overvoltage protection 40 V DC, short-circuit and reverse polarity protection
- Display: 14-segment blue LED, 4 digits, height 9 mm, electronically rotatable 180°
- Accuracy: ≤ ±1% of span including non-linearity, hysteresis, zero point and full scale error
- Response time: 3 ms
- Long-term drift: ≤ ±0.2% of span per year
- Operating temperature: -20 °C to +80 °C
- Enclosure rating: IP65 and IP67
- Dimensions (H x L x W): 120mm x 80mm x 60mm
- Weight: 1.2 kg
Key Features
- Measures gauge pressure from 0 to 10 bar
- Dual output: 1 x PNP and 4 mA to 20 mA analog signal
- Rotatable 14-segment blue LED display, electronically turnable by 180°
- High accuracy ≤ ±1% of span including non-linearity and hysteresis
- Robust stainless steel 316L wetted parts and clamp DIN 32676 DN 40 process connection
- Overpressure safety 2-fold
- Wide operating temperature range from -20 °C to +80 °C
- Protection class III with IP65 and IP67 enclosure ratings
- Short-circuit, reverse polarity, and overvoltage protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial process monitoring for liquids and gases
- Pressure measurement in food and pharmaceutical industries
- Gauge pressure monitoring in manufacturing plants
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with max 70 mA operational current
- Compliant with food contact material standards for safe use in hygienic environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PBSH-RB010SD4S0BMA0Z Pressure Sensor is available for immediate purchase, ideal for industrial and hygienic pressure measurement applications.
