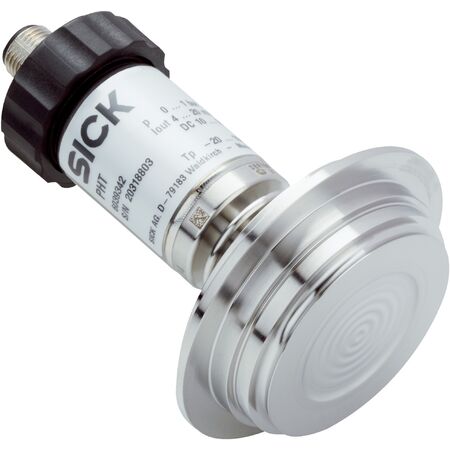

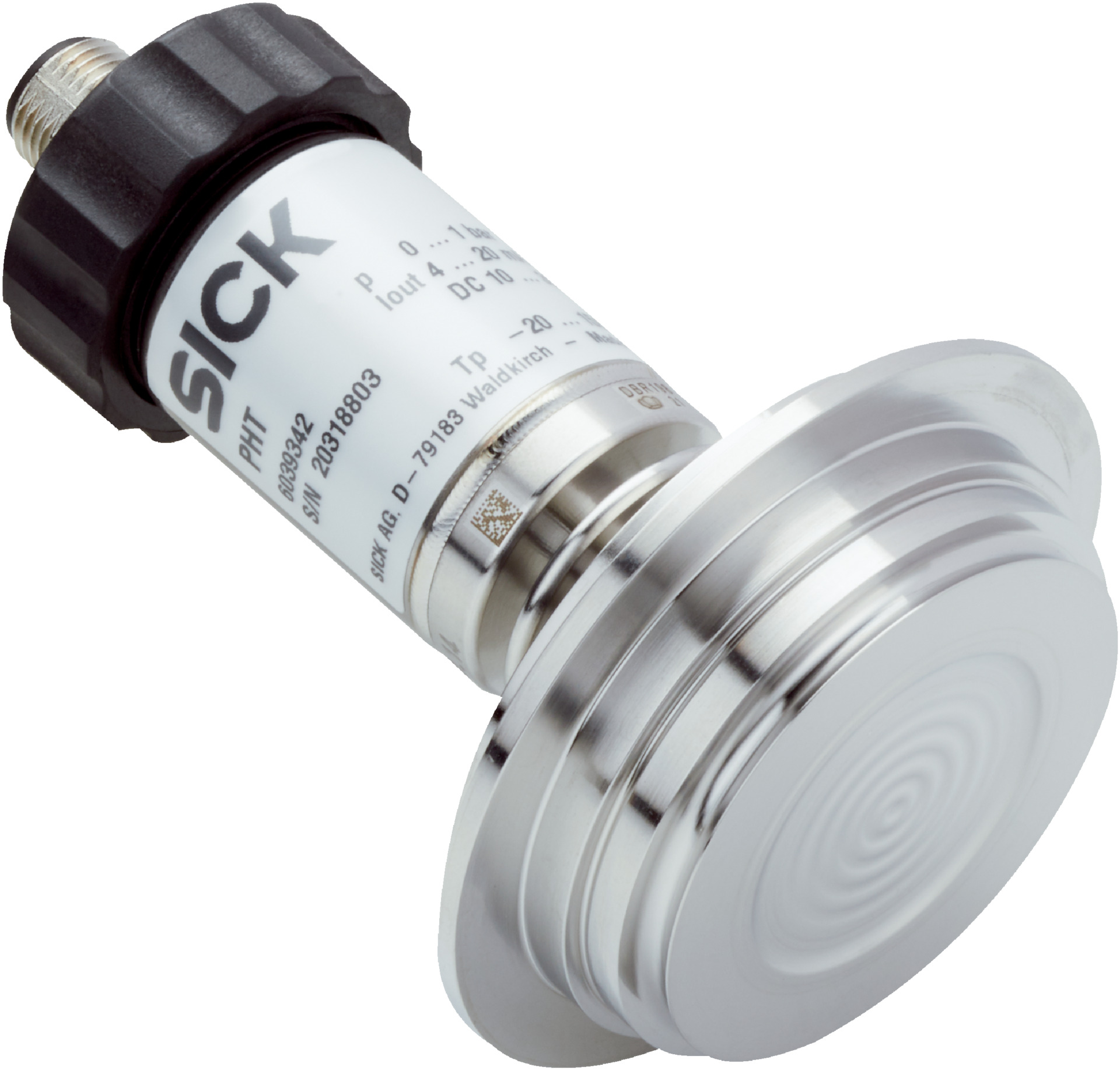

Pressure Transmitter PHT-RB010EVN0SEAFT0Z | 0 to 10 Bar Range | IP67 Rated | Stainless Steel Housing | by SICK
The Pressure Transmitter PHT-RB010EVN0SEAFT0Z measures gauge pressure from 0 to 10 bar, making it ideal for industrial process control and food industry applications. With a robust stainless steel housing and an IP67 enclosure rating, it ensures durability and reliability in harsh environments. Featuring a fast response time of ≤ 10 ms and high accuracy of ≤ ± 0.25 % of span, this sensor is perfect for monitoring liquids and gases.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 10 bar
- Pressure type: Gauge pressure
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 11 V DC to 30 V DC
- Process connection: Varivent connection type N
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Seal: EPDM
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Accuracy: ≤ ± 0.25 % of span
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2 % of span per year
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 bar to 10 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Stainless steel 1.4571 housing with IP67 enclosure rating
- Overvoltage, short-circuit, and reverse polarity protection
- High accuracy with ≤ ± 0.25 % of span
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2 % drift per year
- Shock and vibration resistant according to IEC standards
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of gauge pressure in liquids and gases
- Industrial process control requiring pressure monitoring
- Food industry applications due to FDA approved internal fluid
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption with efficient 4-20mA output signal
- FDA approved synthetic oil ensures safe use in food industry applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PHT-RB010EVN0SEAFT0Z Pressure Sensor is available for immediate purchase, ideal for industrial and food processing applications requiring reliable pressure measurement.
