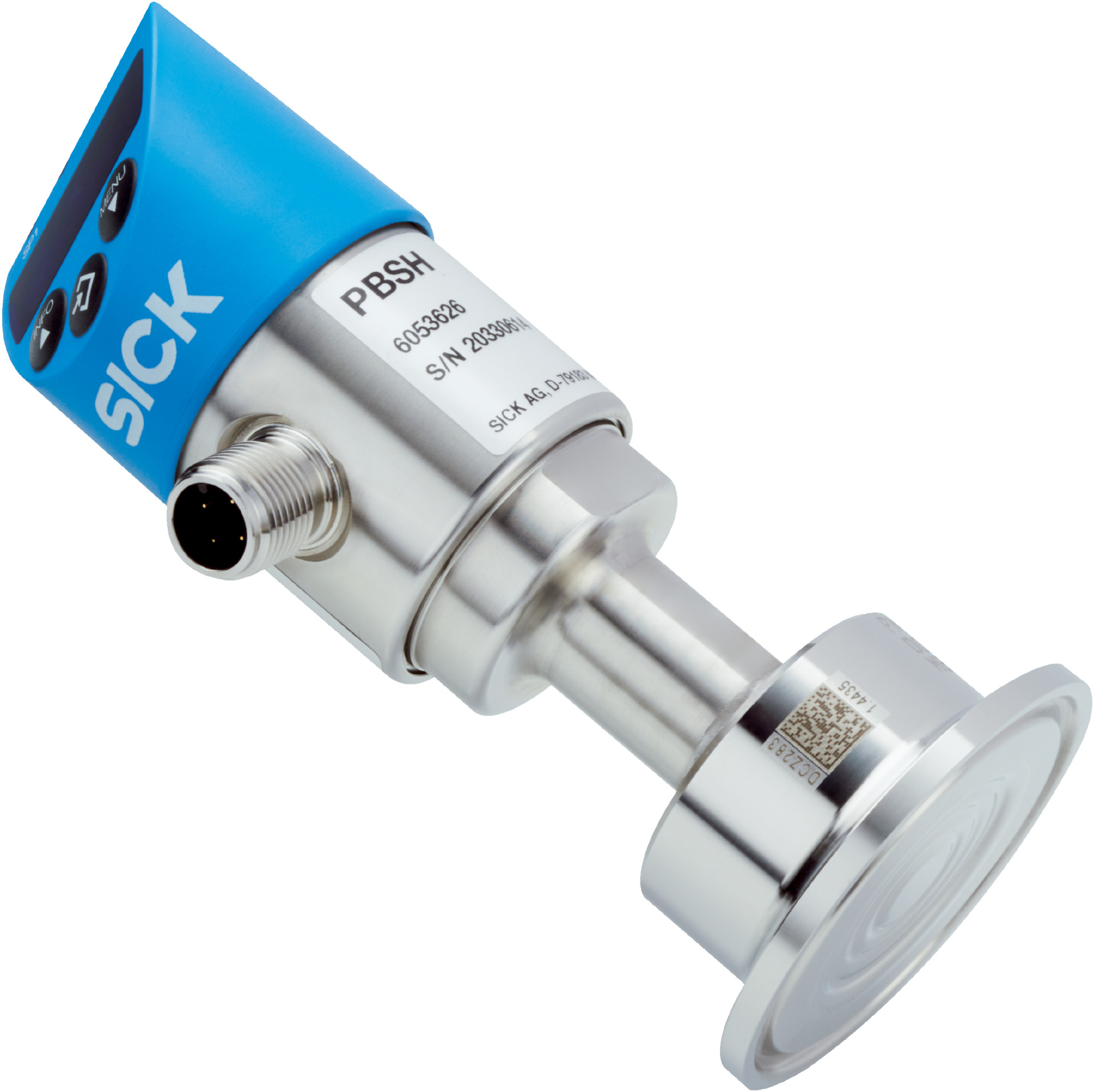

Pressure Transmitter PBSH-RB010SD5S0D5A0Z | 0 to 10 Bar Range | Rotatable LED Display | Hygienic Clamp Connection | by SICK
The PBSH-RB010SD5S0D5A0Z Pressure Transmitter is designed for precise gauge pressure measurement in liquid and gaseous media, featuring a measuring range of 0 to 10 bar and a rotatable 14-segment blue LED display. Ideal for food and pharmaceutical industries, this hygienic pressure sensor ensures compliance with FDA standards and offers high accuracy with a fast response time of just 3 ms.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 10 bar
- Overpressure safety: 2-fold
- Process temperature range: -20 °C to +100 °C
- Maximum ohmic load RA: ≤ 0.5 kΩ for 4 mA to 20 mA output
- Zero point adjustment: Max. +3% of span
- Output signal: 2 x PNP + 4 mA to 20 mA
- Rotatable housing: Display can rotate 180°, housing rotates up to 330°
- Display: 14-segment blue LED, 4 digits, 9 mm height
- Supply voltage: 15 V DC to 35 V DC
- Power consumption: Max 70 mA
- Total current consumption: Max 570 mA including switching current
- Electrical safety: Protection class III, overvoltage protection 40 V DC, short-circuit and reverse polarity protection
- Isolation voltage: 500 V DC
- Enclosure rating: IP65 and IP67
- Accuracy: ≤ ±1% of span including all errors
- Non-linearity: ≤ ±0.5% BFSL
- Response time: 3 ms
- Long-term drift: ≤ ±0.2% per year
- Operating ambient temperature: -20 °C to +80 °C
- Storage temperature: -20 °C to +80 °C
- Relative humidity: 45% to 75%
- Shock load: 50 g IEC 60068-2-27
- Vibration load: 10 g IEC 60068-2-6
- Dimensions (H x L x W): 120mm x 80mm x 80mm
- Weight: 1.5 kg
Key Features
- Measures gauge pressure from 0 to 10 bar with 2-fold overpressure safety
- Rotatable 14-segment blue LED display, 4 digits, electronically turnable by 180°
- Output signals: 2 x PNP + 4 mA to 20 mA
- Clamp (DIN 32676) DN 50 process connection with 316L stainless steel wetted parts
- Medical white oil as internal transmission fluid, FDA compliant
- Housing made of stainless steel 304 and durable plastics (PC + ABS)
- Protection class III with IP65 and IP67 enclosure ratings
- Short-circuit, reverse polarity, and overvoltage protection included
- High accuracy ≤ ±1% of span and fast response time of 3 ms
- Long-term stability with ≤ ±0.2% drift per year
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with pressure sensor systems and hygienic clamp connections to ensure safety and compliance.
Applications
- Industrial process monitoring of liquid and gaseous media
- Pressure measurement in food and pharmaceutical industries
- Clamp connection systems requiring hygienic standards
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- FDA compliant internal fluid ensures safe use in food and pharmaceutical environments
- Durable stainless steel and plastic housing extends product life reducing waste
- Low power consumption (max 70 mA) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PBSH-RB010SD5S0D5A0Z Pressure Sensor is available for immediate purchase, ideal for hygienic industrial applications requiring precise pressure measurement.
