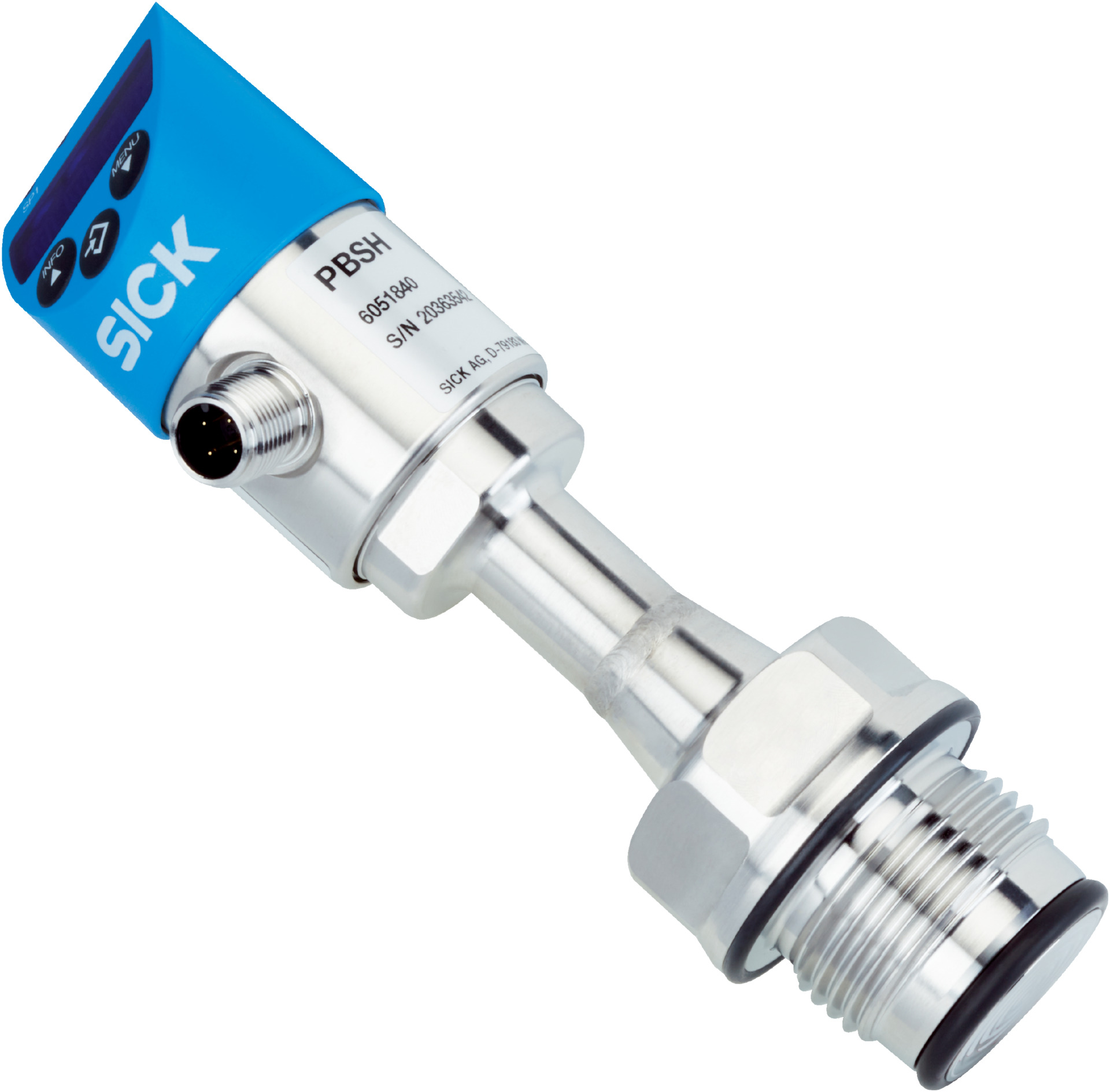

Pressure Transmitter PBSH-RB016SHGEEBMA0Z | 0 to 16 Bar | Rotatable Housing with LED Display | Hygienic Flush-Mounted | by SICK
The PBSH-RB016SHGEEBMA0Z Pressure Transmitter is designed for precise gauge pressure measurement from 0 to 16 bar, featuring a rotatable housing and a clear 14-segment blue LED display. Ideal for industrial process control and hygienic applications, this sensor ensures high accuracy and fast response times, making it perfect for monitoring liquid and gaseous media pressure in various settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 16 bar with 2-fold overpressure safety
- Rotatable housing with 14-segment blue LED display, electronically turnable by 180°
- Output signal: 1 x PNP + 4 mA to 20 mA
- Process connection: G 1 hygienic flush-mounted made of 316L stainless steel
- Internal transmission fluid is medical white oil compliant with FDA and pharmacopeia standards
- Housing made of stainless steel 304 and plastic (PC + ABS) with IP65/IP67 enclosure rating
- Electrical safety features include overvoltage, short-circuit, and reverse polarity protection
- High accuracy ≤ ±1% of span and non-linearity ≤ ±0.5% BFSL
- Fast response time of 3 ms and long-term stability with ≤ ±0.2% drift per year
- Wide operating temperature range from -20 °C to +80 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration.
Applications
- Measurement of liquid and gaseous media pressure
- Industrial process control requiring gauge pressure monitoring
- Hygienic applications with flush-mounted process connection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel and high-quality materials ensure long product life reducing waste
- Low power consumption (max 70 mA) supports energy-efficient operation
- Compliant with China-RoHS and food contact material declarations ensuring environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK PBSH-RB016SHGEEBMA0Z Pressure Sensor is available for immediate purchase, ideal for industrial process control and hygienic applications.
