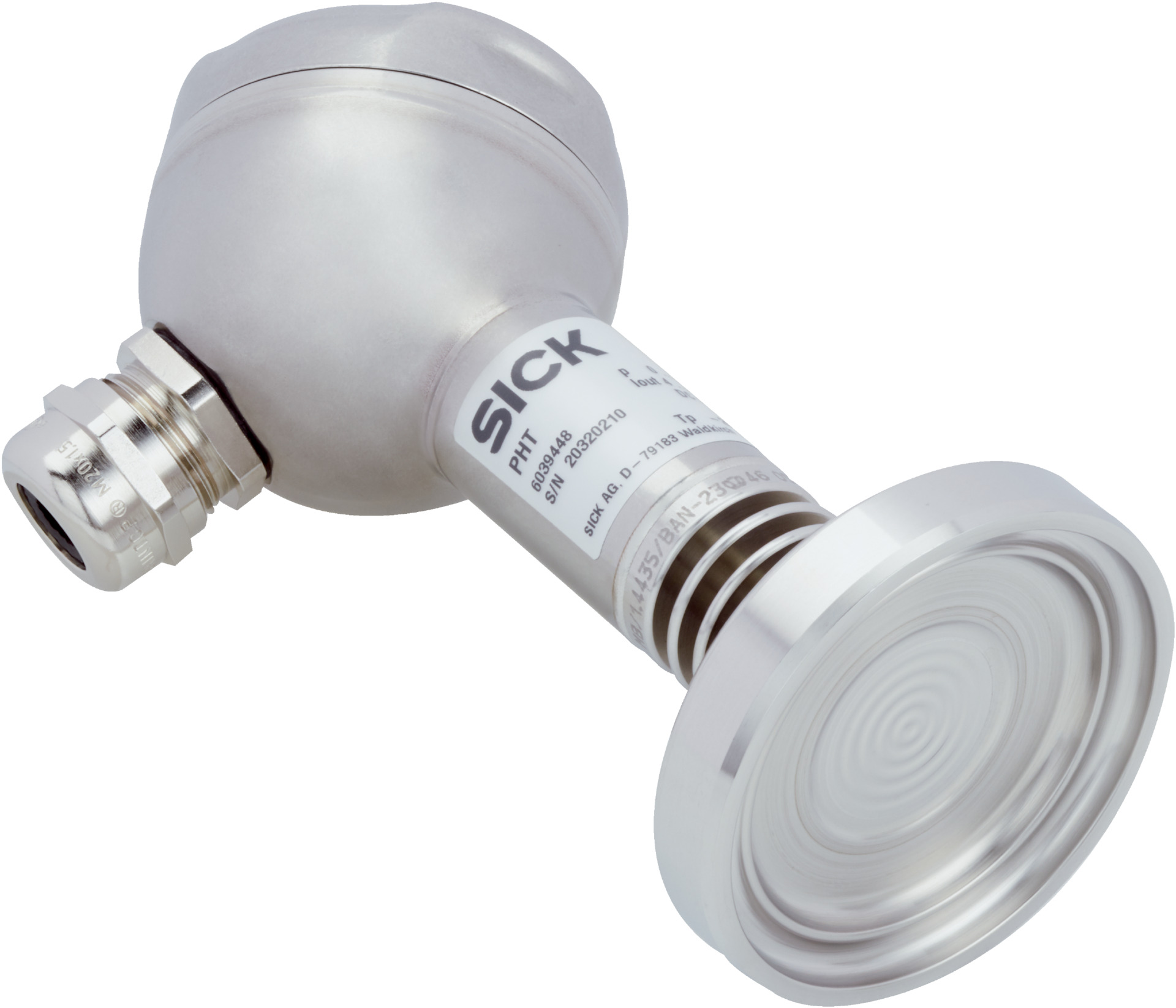

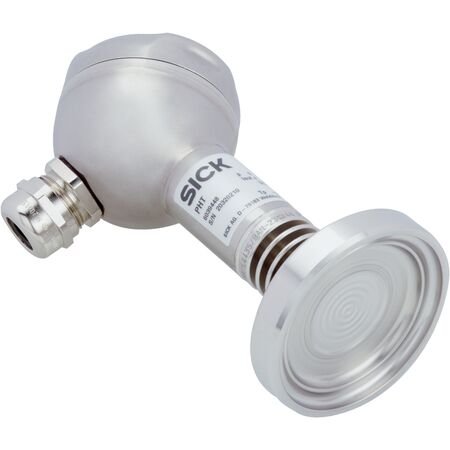

Pressure Transmitter PHT-RB2X5S640S0ALS0Z | 0 to 2.5 Bar Gauge Pressure | IP65 Rated | by SICK
The Pressure Transmitter PHT-RB2X5S640S0ALS0Z measures gauge pressure from 0 to 2.5 bar, making it ideal for both liquid and gaseous media. With a process temperature range of -20 °C to +150 °C and an IP65 enclosure rating, this sensor is built for durability and precision in industrial and food processing applications. Its 4-20 mA output signal ensures compatibility with various monitoring systems, providing reliable performance and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 2.5 bar gauge pressure
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: Coupling (DIN 11864-1) DN 40 form A with union nut
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP65
- Accuracy: ≤ ±0.5% of span (optional 0.25%)
- Response time: ≤ 10 ms
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 120mm x 60mm x 60mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 bar to 2.5 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Coupling (DIN 11864-1) DN 40 form A with union nut
- Wetted parts made of 316L stainless steel
- Housing material: Stainless steel 1.4571
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- Enclosure rating IP65 for dust and water protection
- High accuracy up to ±0.25% of span (optional)
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2% span drift per year
- Shock and vibration resistant according to IEC standards
- FDA approved synthetic oil as internal transmission fluid
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring pressure monitoring
- Food industry applications due to FDA approved internal fluid
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing ensures long product life reducing waste
- Low power consumption with 4-20 mA output signal
- FDA approved internal fluid supports safe use in food industry minimizing contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PHT-RB2X5S640S0ALS0Z Pressure Sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise pressure measurement.
