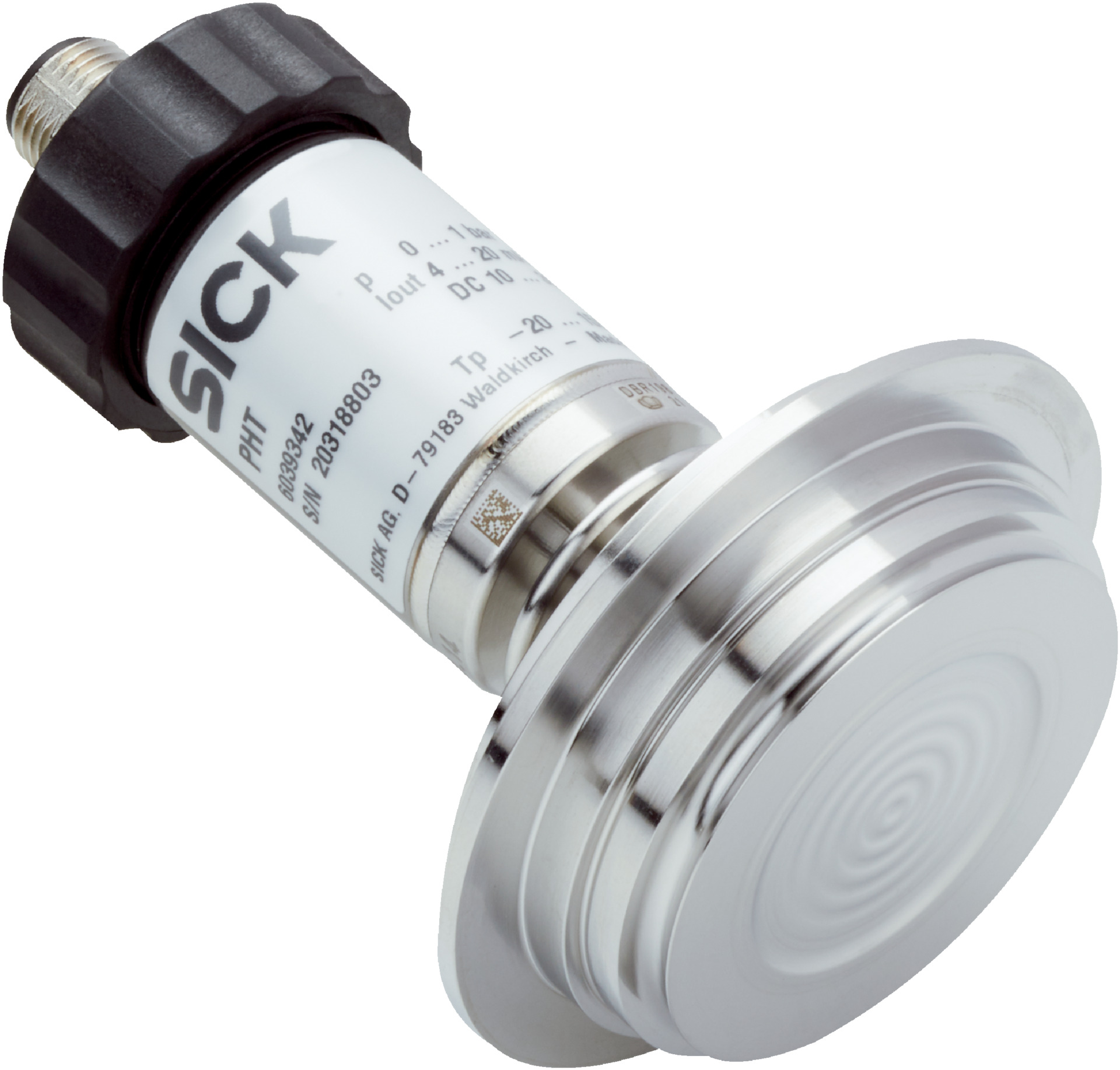

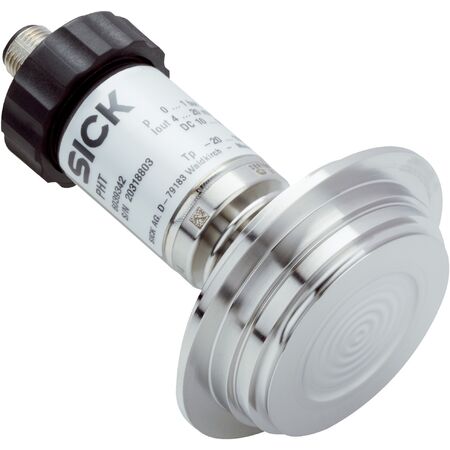

Pressure Transmitter PHT-RB2X5SVF0S0AFT0Z | 0 to 2.5 Bar | IP67 Rated | High Accuracy | by SICK
The Pressure Transmitter PHT-RB2X5SVF0S0AFT0Z measures gauge pressure from 0 to 2.5 bar, making it ideal for both liquid and gaseous media. With a robust stainless steel housing and an IP67 enclosure rating, it ensures durability in industrial environments. Designed for precise pressure monitoring, it features a fast response time of ≤ 10 ms and high accuracy of ±0.5% of span, perfect for applications in food processing and industrial control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 2.5 bar
- Pressure type: Gauge pressure
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 11 V DC to 30 V DC
- Process connection: Varivent connection type F
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Enclosure rating: IP67
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Response time: ≤ 10 ms
- Accuracy: ≤ ±0.5% of span (optional 0.25%)
- Non-linearity: ≤ ±0.2% of span
- Non-repeatability: ≤ ±0.1% of span
- Long-term drift: ≤ 0.2% of span per year
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 2.5 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Stainless steel 1.4571 housing with IP67 enclosure rating
- Overvoltage, short-circuit, and reverse polarity protection
- High accuracy up to ±0.5% of span, optional 0.25%
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2% span drift per year
- Shock and vibration resistant according to IEC standards
- FDA approved synthetic oil as internal transmission fluid
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and process instrumentation to ensure proper connection and calibration.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal transmission fluid
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption with efficient 4-20 mA output signal
- FDA approved materials ensure safe use in food industry minimizing contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PHT-RB2X5SVF0S0AFT0Z pressure sensor is available for immediate purchase, ideal for industrial and food processing applications requiring reliable pressure measurement.
