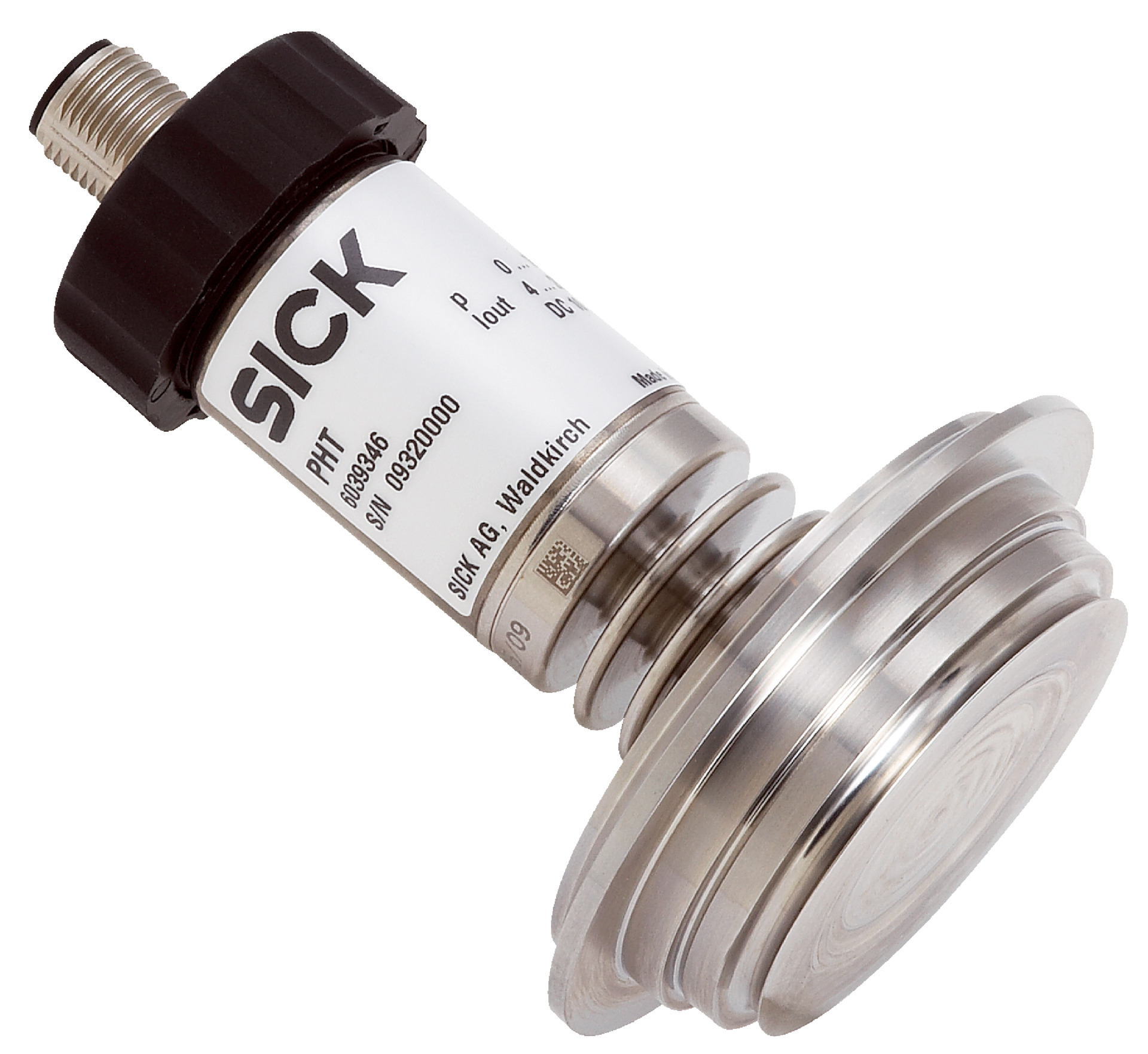

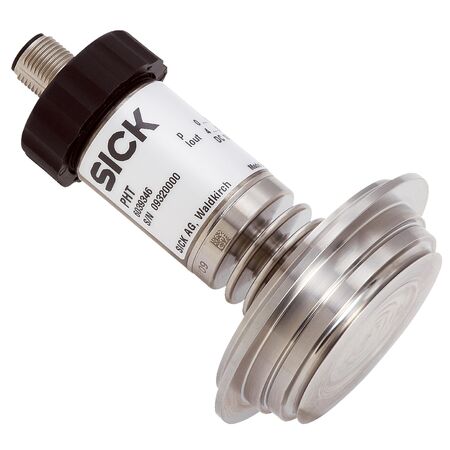

Pressure Transmitter PHT-RB2X5SDR0S0AMS0Z | 0 to 2.5 Bar Gauge Pressure | IP67 Rated | by SICK
The Pressure Transmitter PHT-RB2X5SDR0S0AMS0Z measures gauge pressure from 0 to 2.5 bar, making it ideal for industrial process control and food industry applications. With a robust IP67 rating and a process temperature range of -20 °C to +150 °C, this sensor ensures reliable performance in harsh environments. Its 4-20 mA output signal and stainless steel housing provide durability and accuracy, making it a perfect choice for precise pressure monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 2.5 bar gauge pressure
- Process temperature: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Dielectric strength: 500 V DC
- Enclosure rating: IP67
- Response time: ≤ 10 ms
- Accuracy: ≤ ± 0.5% of span (optional 0.25%)
- Non-linearity: ≤ ± 0.2% of span BFSL
- Non-repeatability: ≤ ± 0.1% of span
- Long-term drift: ≤ 0.2% of span per year
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 80mm x 30mm x 30mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 2.5 bar
- Suitable for liquid and gaseous media
- Process temperature range from -20 °C to +150 °C
- Output signal 4 mA to 20 mA, 2-wire
- Stainless steel 1.4571 housing with 316L stainless steel wetted parts
- M12 round connector, 4-pin connection type
- Overvoltage, short-circuit, and reverse polarity protection
- IP67 enclosure rating for dust and water protection
- Long-term stability with ≤ 0.2% span drift per year
- Fast response time ≤ 10 ms
- High accuracy ≤ ± 0.5% of span, optional 0.25%
- Shock and vibration resistant per IEC standards
- FDA approved synthetic oil as internal transmission fluid
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of gauge pressure in liquids and gases
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal fluid
- Harsh environments requiring IP67 rated sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with 4-20 mA output signal
- FDA approved internal fluid ensures safe use in food industry applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PHT-RB2X5SDR0S0AMS0Z Pressure Sensor is available for immediate purchase, ideal for industrial and food processing applications requiring reliable pressure measurement.
