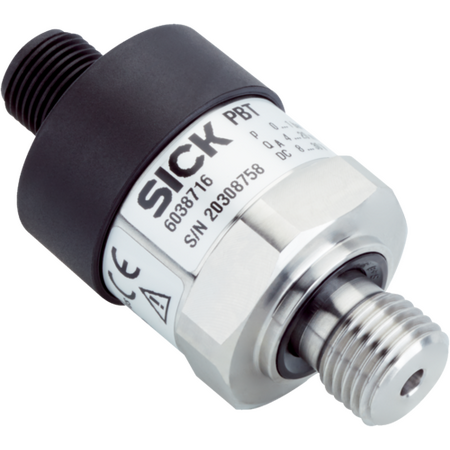

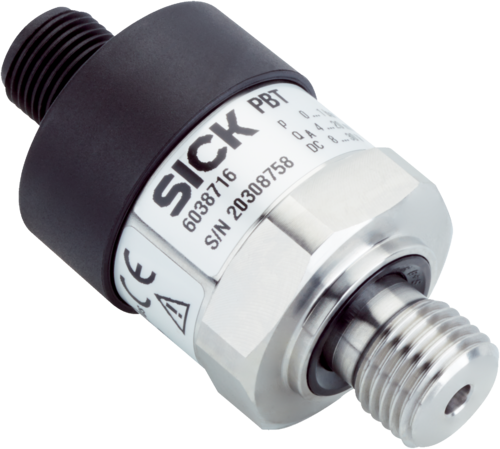

Pressure Transmitter 0 to 25 Bar Gauge Pressure IP67 Rated SICK
The Pressure Transmitter measures gauge pressure from 0 to 25 bar, making it ideal for industrial process control of liquids and gases.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Pressure transmitter, gauge pressure sensor, 4-20mA pressure sensor, stainless steel pressure sensor
Technical Specifications
- Measuring range: 0 bar to 25 bar gauge pressure
- Process temperature range: 0 °C to +80 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 8 V DC to 30 V DC
- Process connection: G ¼ A (ISO 1179-2)
- Wetted parts: Stainless steel 316L
- Enclosure rating: IP67
- Electrical safety: Overvoltage protection 32-36 V DC, short-circuit and reverse polarity protection
- Response time: < 4 ms
- Accuracy: ≤ ±1% of span including non-linearity, hysteresis, zero point and full scale error
- Long-term stability: ≤ 0.1% of span per year
- Shock resistance: 500 g per IEC 60068-2-27
- Vibration resistance: 10 g per IEC 60068-2-6
- Dimensions (H x L x W): 70mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- Measures gauge pressure from 0 to 25 bar
- Suitable for liquid and gaseous media
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: G ¼ A (ISO 1179-2)
- Housing and wetted parts made of stainless steel 316L
- IP67 rated enclosure for dust and water protection
- Overvoltage, short-circuit, and reverse polarity protection
- Fast response time under 4 ms
- High accuracy with ≤ ±1% span including non-linearity and hysteresis
- Long service life with minimum 100 million load cycles
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in hydraulic and pneumatic systems
- Automation systems requiring precise gauge pressure measurement
Standards & Compliance
- Complies with AS/NZS 61010 for electrical equipment safety
- Complies with AS/NZS 3000 Wiring Rules for electrical installation
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption enhances energy efficiency
- High accuracy reduces process waste and improves resource management
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PBT-RB025SG1SSNAMA0Z pressure sensor is available for immediate purchase, ideal for industrial and automation applications requiring reliable gauge pressure measurement.
