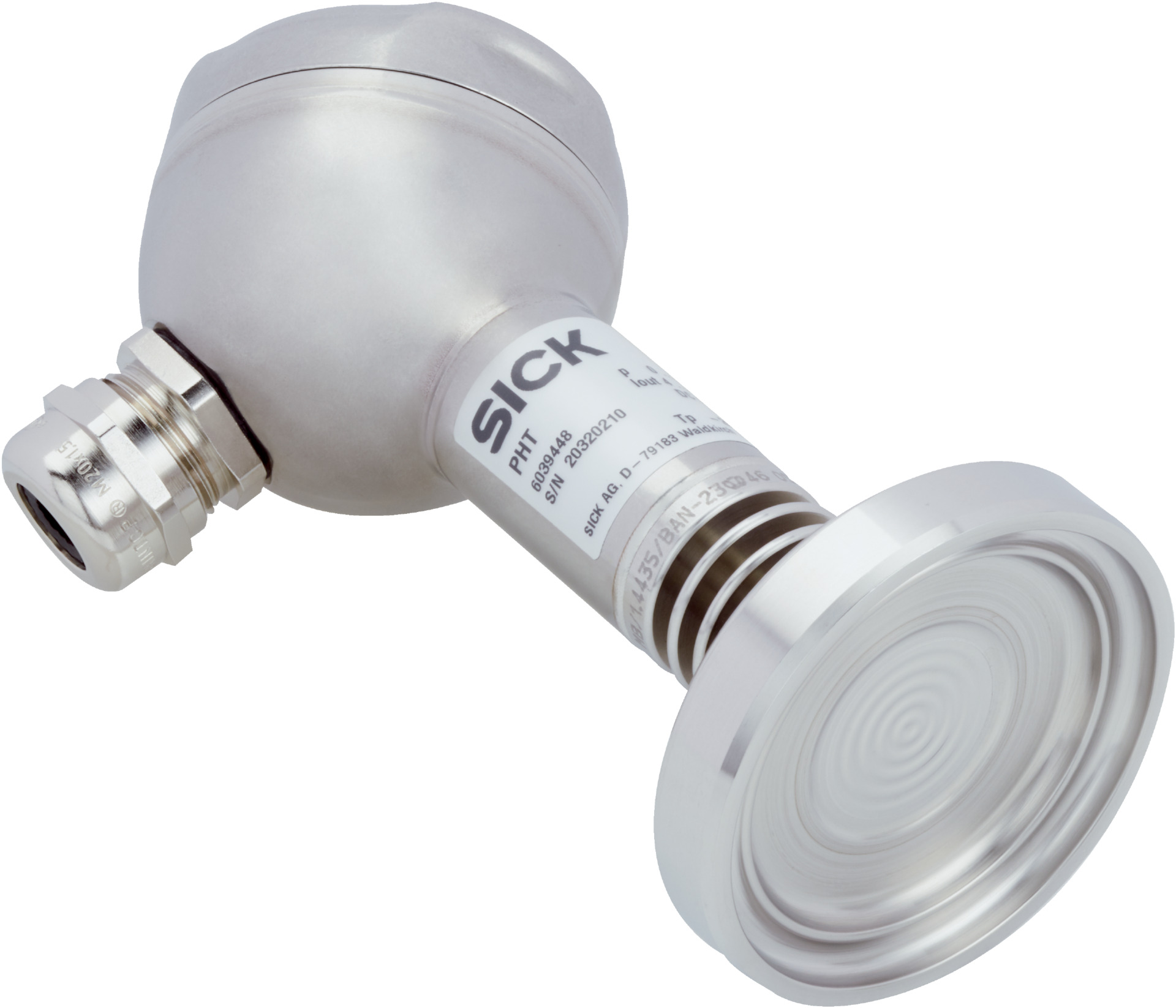

Pressure Transmitter PHT-RB025S650S0ALS0Z | 0 to 25 Bar Range | IP65 Rated | FDA Approved | by SICK
The Pressure Transmitter PHT-RB025S650S0ALS0Z measures gauge pressure from 0 to 25 bar, making it ideal for industrial process control and food industry applications. With a process temperature range of -20 °C to +150 °C and an output signal of 4 mA to 20 mA, this sensor ensures high accuracy and reliability. Its durable stainless steel housing and FDA-approved internal fluid make it a safe choice for various media.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 25 bar
- Pressure type: Gauge pressure
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: Coupling (DIN 11864-1) DN 50 form A with union nut
- Wetted parts: 316L stainless steel
- Internal transmission fluid: FDA approved synthetic oil
- Housing material: Stainless steel 1.4571
- Connection type: L-connector (DIN EN 175301-803 A)
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP65
- Accuracy: ≤ ± 0.5 % of span (optional 0.25 %)
- Non-linearity: ≤ ± 0.2 % of span
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2 % per year
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 120mm x 150mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 bar to 25 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Coupling (DIN 11864-1) DN 50 form A with union nut
- Wetted parts made of 316L stainless steel
- Internal transmission fluid is FDA approved synthetic oil
- Housing made of stainless steel 1.4571
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- Enclosure rating IP65 for dust and water protection
- High accuracy with ≤ ± 0.5 % of span, optional 0.25 %
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2 % drift per year
- Shock and vibration resistant according to IEC standards
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration according to industrial standards.
Applications
- Measurement of gauge pressure in liquids and gases
- Industrial process control requiring pressure monitoring
- Food industry applications due to FDA approved internal fluid
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- FDA approved synthetic oil ensures safe use in food industry minimizing contamination risks
- Low power consumption with 4-20 mA output signal
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PHT-RB025S650S0ALS0Z Pressure Sensor is available for immediate purchase, ideal for industrial process control and food industry applications.
