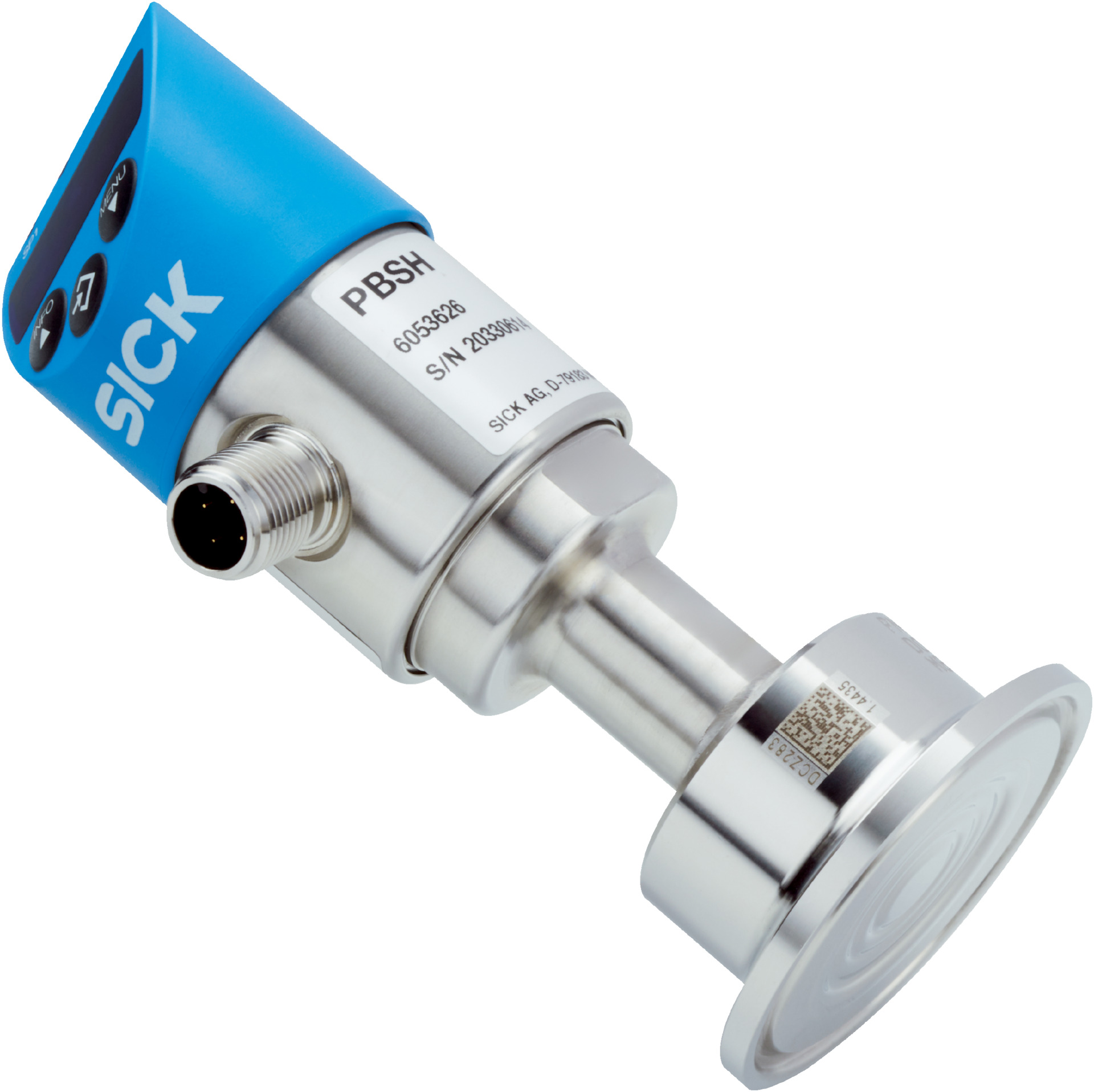

Pressure Transmitter PBSH-RB025SD3S0BMA0Z | 0 to 25 Bar Gauge Pressure | IP65 & IP67 Rated | by SICK
The PBSH-RB025SD3S0BMA0Z pressure transmitter measures gauge pressure from 0 to 25 bar, making it ideal for industrial process control and pressure monitoring in food and pharmaceutical industries. With a fast response time of 3 ms and high accuracy of ≤ ±1% of span, this sensor features a rotatable 14-segment blue LED display for easy reading, ensuring reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 to 25 bar gauge pressure
- Process temperature: -20 °C to +100 °C
- Output signal: 1 x PNP + 4 mA to 20 mA
- Supply voltage: 15 V DC to 35 V DC
- Power consumption: Max. 70 mA
- Accuracy: ≤ ±1% of span including non-linearity and hysteresis
- Response time: 3 ms
- Enclosure rating: IP65 and IP67
- Process connection: Clamp (DIN 32676) DN 32
- Housing material: Stainless steel 304 lower body, PC + ABS plastic head
- Display: 14-segment blue LED, 4 digits, height 9 mm, electronically rotatable 180°
- Electrical safety: Protection class III, overvoltage and short-circuit protection
- Isolation voltage: 500 V DC
- Dimensions (H x L x W): 120mm x 70mm x 70mm
- Weight: 1.2 kg
Key Features
- Measures gauge pressure from 0 to 25 bar
- Dual overpressure safety
- Rotatable housing with 14-segment blue LED display, electronically turnable by 180°
- Output signal: 1 x PNP + 4 mA to 20 mA
- Clamp (DIN 32676) DN 32 process connection with 316L stainless steel wetted parts
- Medical white oil as internal transmission fluid, FDA compliant
- Protection class III with IP65 and IP67 enclosure ratings
- Short-circuit, reverse polarity, and overvoltage protection
- High accuracy ≤ ±1% of span and fast response time of 3 ms
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in food and pharmaceutical industries
- Gauge pressure measurement in manufacturing plants
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- FDA compliant internal fluid suitable for food and pharmaceutical applications
- Durable stainless steel construction reduces waste and extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK PBSH-RB025SD3S0BMA0Z pressure sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise gauge pressure measurement.
