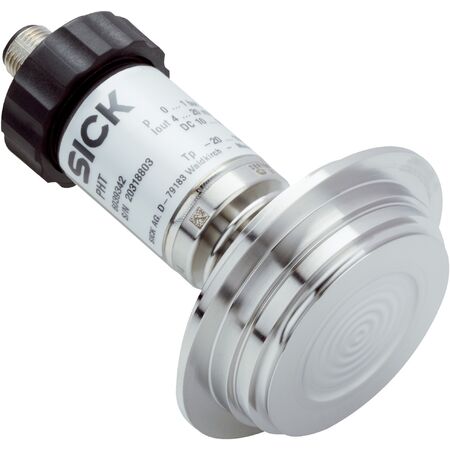

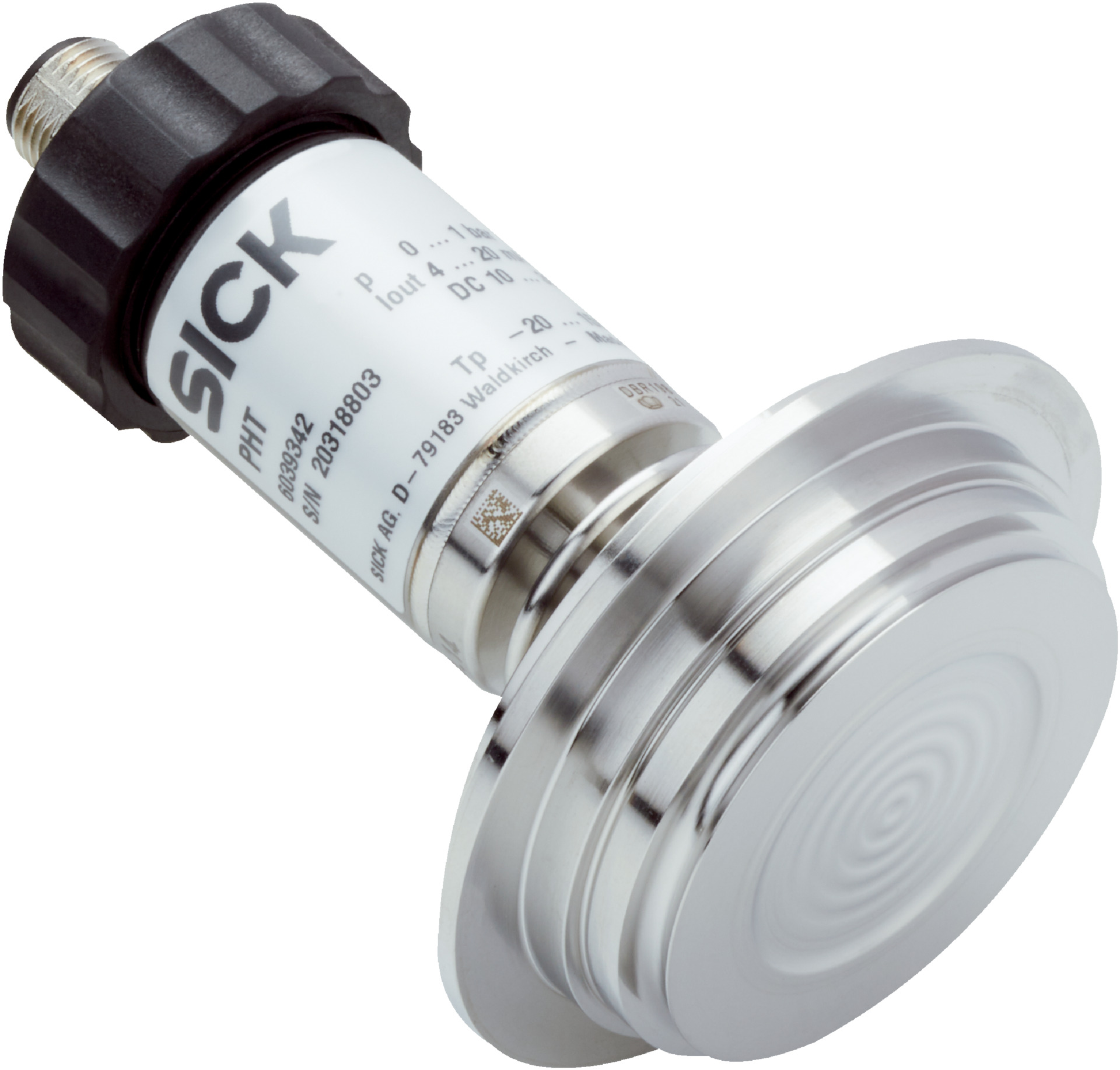

Pressure Transmitter PHT-RB025SVF0S0AFT0Z | 0 to 25 Bar Range | IP67 Rated | FDA Approved | by SICK
The Pressure Transmitter PHT-RB025SVF0S0AFT0Z is designed for accurate gauge pressure measurement in both liquid and gaseous media, with a measuring range of 0 to 25 bar. Built for industrial and food processing applications, it features a durable stainless steel housing and FDA-approved internal transmission fluid, ensuring reliability and compliance with safety standards. With an IP67 rating and fast response time, this sensor is perfect for precise pressure monitoring in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 25 bar
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Varivent connection type F
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Synthetic oil, FDA approved
- Housing material: Stainless steel 1.4571
- Supply voltage: 11 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Accuracy: ≤ ± 0.5 % of span (optional 0.25 %)
- Non-linearity: ≤ ± 0.2 % of span (BFSL)
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2 % of span per year
- MTTF: 403 years
- Dimensions (H x L x W): 100mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Measuring range from 0 bar to 25 bar
- Gauge pressure measurement
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Varivent connection type F
- Wetted parts made of 316L stainless steel
- Housing material: Stainless steel 1.4571
- Supply voltage: 11 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- Enclosure rating IP67 for dust and water protection
- Long-term stability with ≤ 0.2 % span drift per year
- High accuracy with optional 0.25 % of span
- Fast response time ≤ 10 ms
- MTTF of 403 years
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal transmission fluid
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing ensures long product life reducing waste
- FDA approved synthetic oil minimizes environmental impact in food applications
- Low power consumption with efficient 2-wire 4-20 mA output
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PHT-RB025SVF0S0AFT0Z Pressure Sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise pressure measurement.
