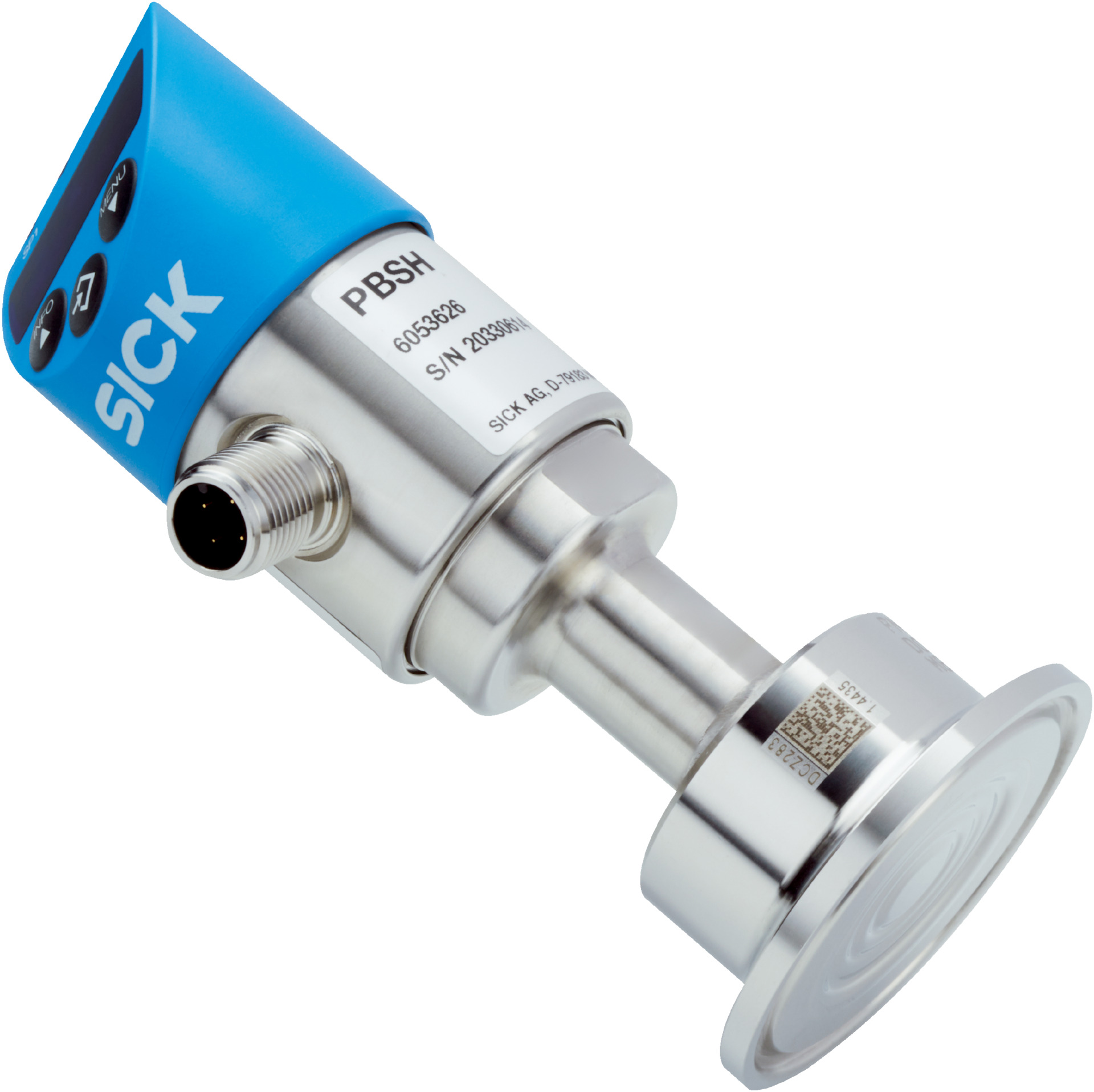

Pressure Transmitter PBSH-RB4X0SD3S0D5A0Z | 0 to 4 Bar Gauge Pressure | Dual Output Signals | IP65 & IP67 Rated | by SICK
The PBSH-RB4X0SD3S0D5A0Z pressure transmitter is designed for precise gauge pressure measurement from 0 to 4 bar, making it ideal for industrial applications. With dual output signals (2 x PNP and 4 mA to 20 mA) and a rotatable 14-segment blue LED display, it ensures high accuracy and easy readability. Built for robust environments, it features an IP65 and IP67 enclosure rating, making it suitable for both liquid and gaseous media in food and pharmaceutical industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 4 bar gauge pressure
- Output signal: 2 x PNP + 4 mA to 20 mA
- Process temperature range: -20 °C to +100 °C
- Accuracy: ≤ ±1% of span including non-linearity and hysteresis
- Response time: 3 ms
- Power supply: 15 V DC to 35 V DC
- Enclosure rating: IP65 and IP67
- Electrical safety: Protection class III, overvoltage protection 40 V DC, short-circuit and reverse polarity protection
- Display: 14-segment blue LED, 4 digits, height 9 mm, electronically rotatable 180°
- Process connection: Clamp DIN 32676 DN 32, 316L stainless steel
- Internal transmission fluid: Medical white oil, FDA compliant
- Dimensions (H x L x W): 120mm x 80mm x 80mm
- Weight: 1.2 kg
Key Features
- Measures gauge pressure from 0 to 4 bar
- Dual output signals: 2 x PNP and 4 mA to 20 mA
- Rotatable housing with 14-segment blue LED display, electronically turnable by 180°
- High accuracy ≤ ±1% of span including non-linearity and hysteresis
- Overpressure safety 2-fold
- Process connection clamp DIN 32676 DN 32 made of 316L stainless steel
- Internal transmission fluid is FDA compliant medical white oil
- Enclosure rating IP65 and IP67 for robust protection
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- Operating temperature range from -20 °C to +80 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial process monitoring of liquid and gaseous media
- Pressure measurement in food and pharmaceutical industries
- Gauge pressure monitoring in manufacturing plants
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with max 70 mA operational current
- FDA compliant internal fluid suitable for hygienic applications
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PBSH-RB4X0SD3S0D5A0Z pressure sensor is available for immediate purchase, ideal for industrial and hygienic pressure measurement applications.
