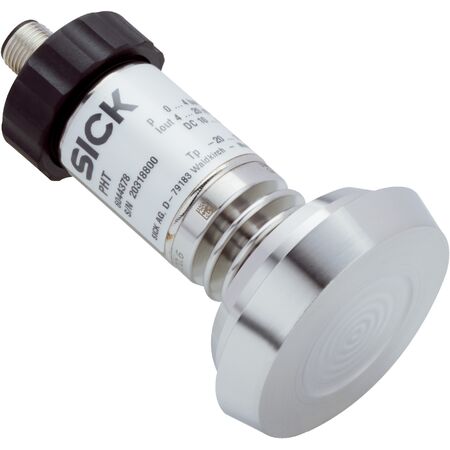

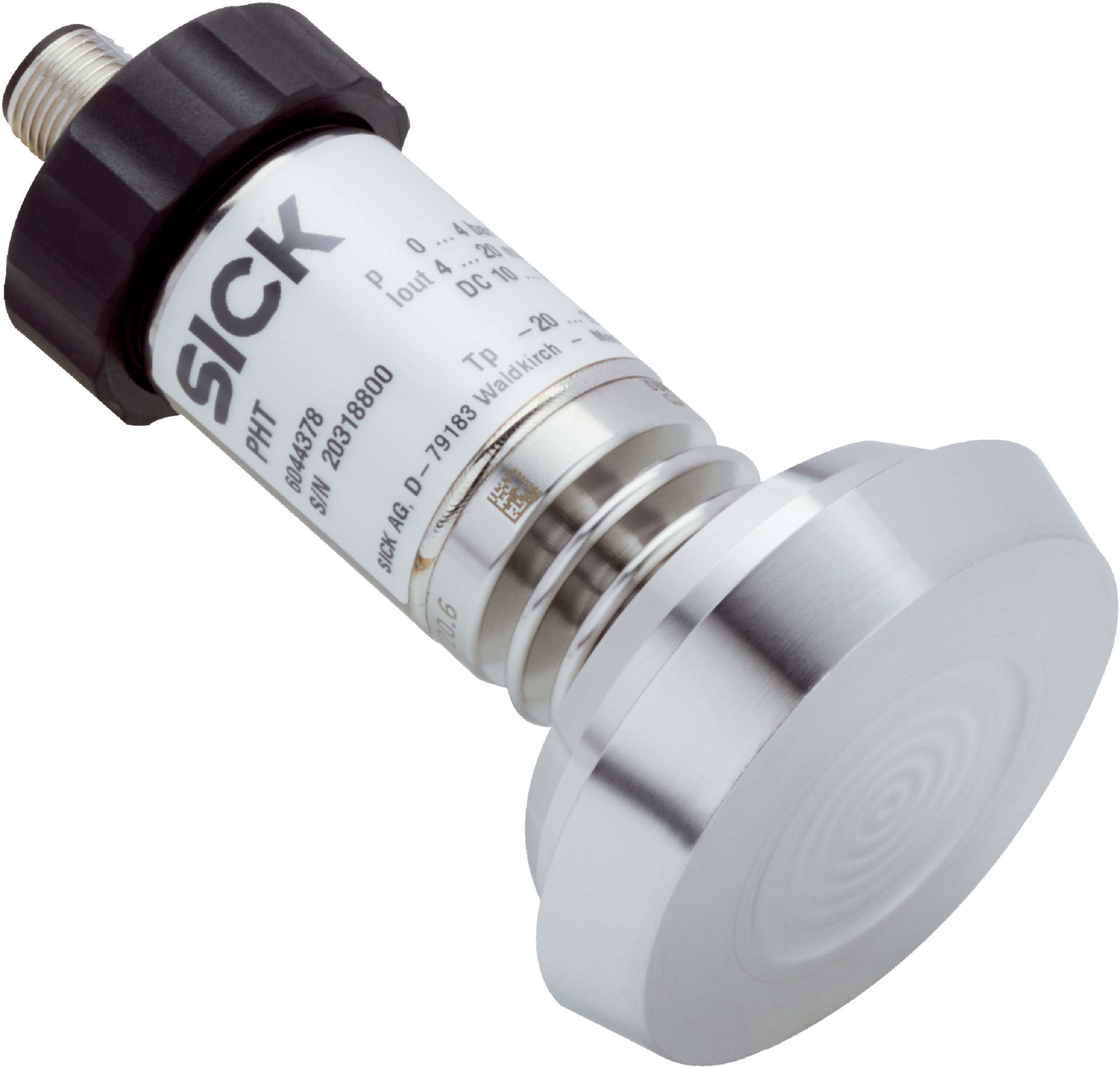

Pressure Transmitter PHT-RB4X0S540S0AMS0Z | 0 to 4 Bar | IP67 Rated | Stainless Steel Housing | by SICK
The Pressure Transmitter PHT-RB4X0S540S0AMS0Z measures gauge pressure from 0 to 4 bar, making it ideal for both liquid and gaseous media. With a robust stainless steel housing and an IP67 rated enclosure, it ensures durability in industrial environments. This sensor is perfect for precise pressure monitoring in food industry applications, offering high accuracy and fast response times.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 120mm x 50mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 4 bar
- Suitable for liquid and gaseous media
- Process temperature range from -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Stainless steel 1.4571 housing and 316L stainless steel wetted parts
- IP67 rated enclosure for dust and water protection
- Overvoltage, short-circuit, and reverse polarity protection
- Fast response time ≤ 10 ms
- High accuracy ≤ ± 0.5 % of span, optional 0.25 %
- Long-term stability with ≤ 0.2 % drift per year
- Shock and vibration resistant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and calibration.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal fluid
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- FDA approved synthetic oil ensures safe use in food industry minimizing contamination risks
- Low power consumption with 10 V DC to 30 V DC supply voltage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PHT-RB4X0S540S0AMS0Z pressure sensor is available for immediate purchase, ideal for industrial and food processing applications requiring reliable pressure measurement.
