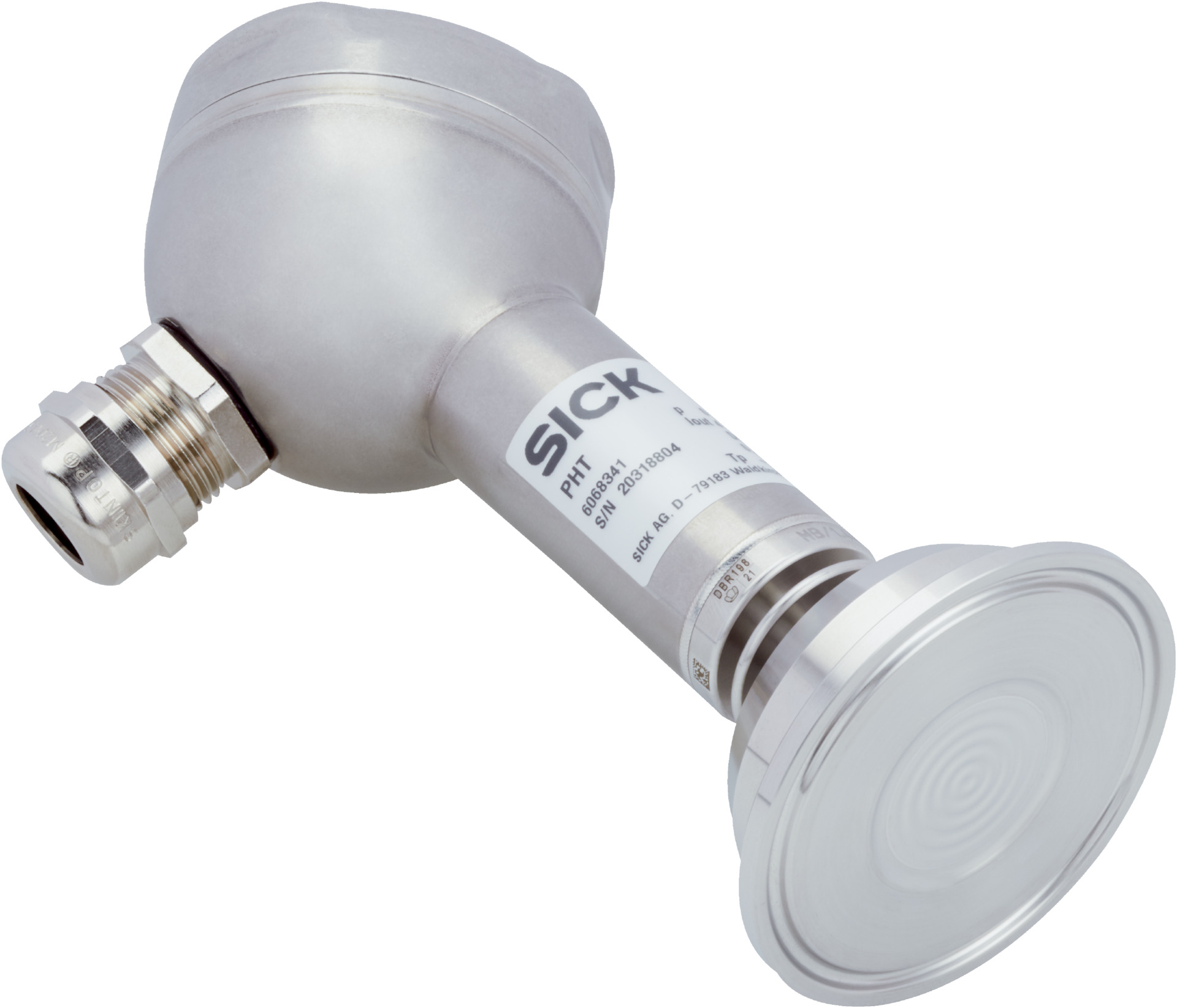

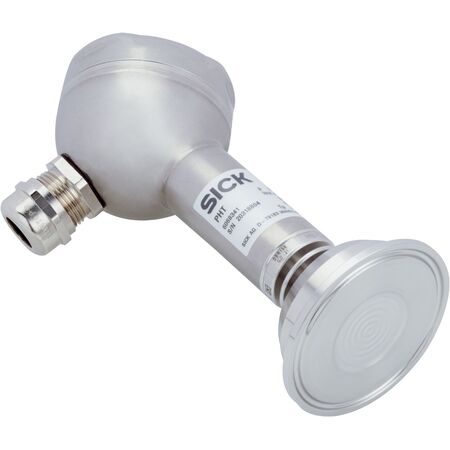

Pressure Transmitter PHT-RB6X0EC20S0ALS0Z | 0 to 6 Bar Gauge Pressure | IP65 Rated | by SICK
The Pressure Transmitter PHT-RB6X0EC20S0ALS0Z measures gauge pressure from 0 to 6 bar, making it ideal for both liquid and gaseous media. With a process temperature range of -20 °C to +150 °C and an output signal of 4 mA to 20 mA, this sensor is built for industrial process control and food industry applications, ensuring high reliability and safety with its IP65 enclosure rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 6 bar gauge pressure
- Process temperature: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: Clamp (ISO 2852) DN 33.7
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP65
- Response time: ≤ 10 ms
- Accuracy: ≤ ±0.25% of span
- Non-linearity: ≤ ±0.2% of span (BFSL)
- Non-repeatability: ≤ ±0.1% of span
- Long-term drift: ≤ 0.2% of span per year
- MTTF: 403 years
- Dimensions (H x L x W): 100mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 6 bar
- Suitable for liquid and gaseous media
- Process temperature range from -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Clamp (ISO 2852) DN 33.7 process connection with 316L stainless steel wetted parts
- Housing made of stainless steel 1.4571
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- IP65 enclosure rating for dust and water protection
- Long-term stability with ≤ 0.2% span drift per year
- Fast response time ≤ 10 ms
- MTTF of 403 years indicating high reliability
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical safety standards to ensure proper operation and compliance.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food and beverage industry due to FDA approved internal transmission fluid
- Harsh environments requiring IP65 rated sensor protection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with 4-20 mA output signal
- FDA approved synthetic oil ensures safe use in food industry minimizing contamination risks
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PHT-RB6X0EC20S0ALS0Z pressure sensor is available for immediate purchase, ideal for industrial process control and food industry applications requiring reliable gauge pressure measurement.
