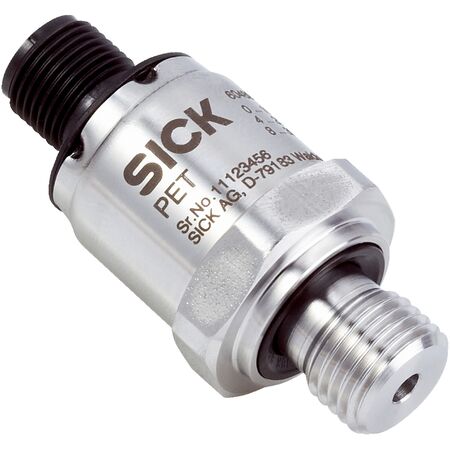

Pressure Transmitter PET-1RB600G1NSALA | 0 to 600 Bar | 4-20mA Output | IP65 Rated | by SICK
The Pressure Transmitter PET-1RB600G1NSALA measures gauge pressure in fluids with a range of 0 to 600 bar. Designed for industrial applications, it features a robust stainless steel construction and an IP65 rated enclosure for dust and water protection. With a fast response time under 2 ms and a 4-20mA output signal, this sensor is perfect for hydraulic and pneumatic systems, ensuring reliable process control and monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 600 bar
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: G ¼ A (ISO 1179-2)
- Wetted parts: 316L stainless steel and stainless steel 13-8 PH
- Housing material: Stainless steel 316L, PBT GF30
- Supply voltage: 8 V DC to 30 V DC
- Power consumption: 25 mA max
- Enclosure rating: IP65 (IEC 60529)
- Accuracy: ±1.2% of span at room temperature
- Non-linearity: ≤ ±0.5% of span (BFSL)
- Response time: < 2 ms
- Operating temperature: -30 °C to +100 °C
- Storage temperature: -30 °C to +100 °C
- Shock load: 40 g (6 ms)
- Vibration load: 20 g (20 Hz to 2000 Hz, 120 min)
- Dimensions (H x L x W): 80mm x 80mm x 30mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure in fluids
- Pressure range from 0 to 600 bar
- 2-wire 4 mA to 20 mA output signal
- Overpressure safety 2-fold (3-fold on request)
- Process temperature range from -30 °C to +100 °C
- Stainless steel 316L wetted parts and housing
- IP65 rated enclosure for dust and water protection
- Short-circuit, reverse polarity, and overvoltage protection
- Fast response time under 2 ms
- Long service life with minimum 10 million load cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical safety standards.
Applications
- Industrial fluid pressure measurement
- Hydraulic and pneumatic systems
- Process control and monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption with efficient 2-wire current output
- Long service life minimizes environmental impact from disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PET-1RB600G1NSALA pressure sensor is available for immediate purchase, ideal for industrial fluid pressure monitoring and control applications.
