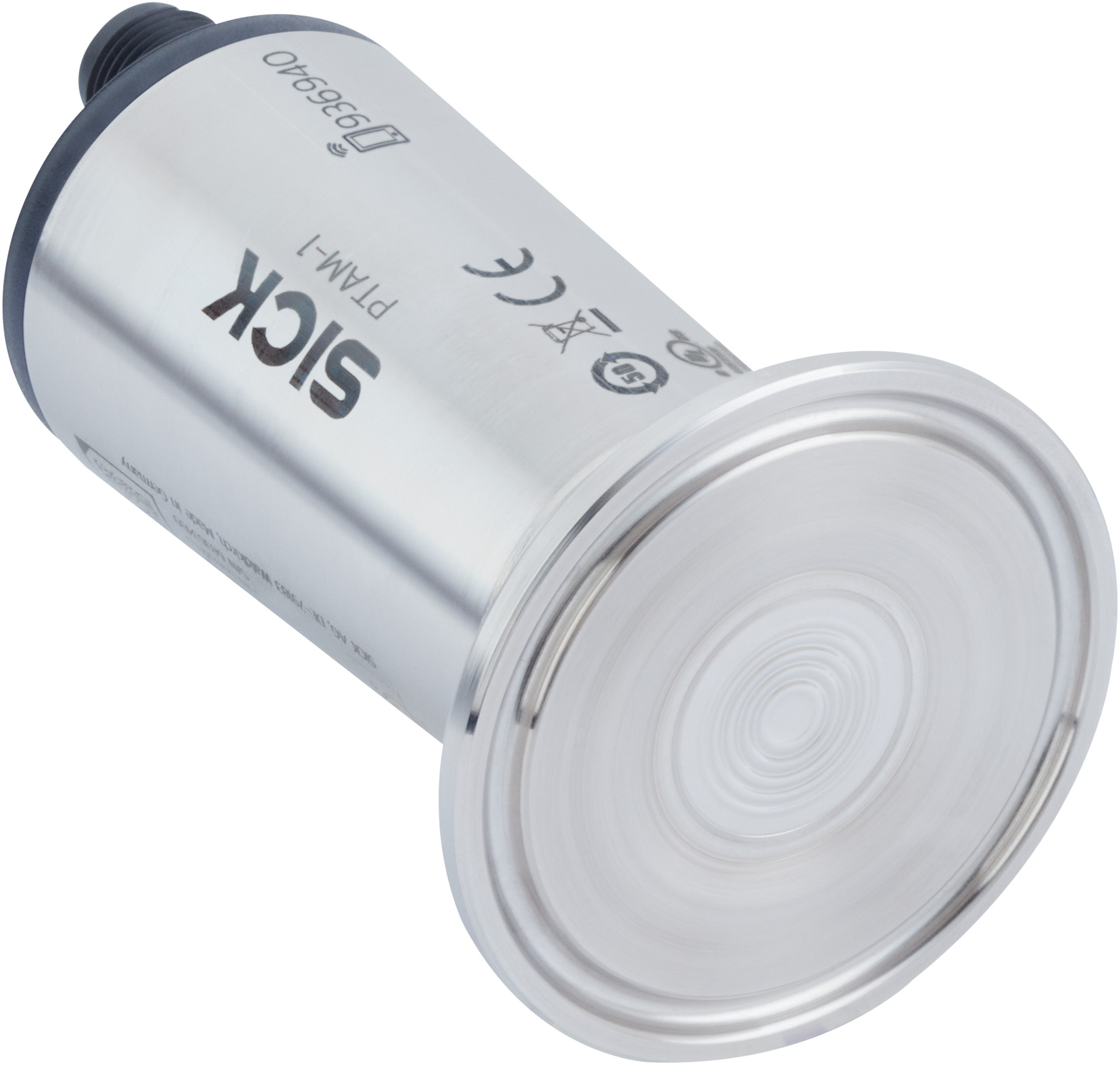

Pressure Transmitter with Bluetooth | Gauge Pressure Measurement | Durable Stainless Steel | by SICK
The Pressure Transmitter with Bluetooth is designed for precise gauge pressure measurement in liquids and gases, making it ideal for industrial process control. Built for durability with a robust stainless steel housing, it features a Bluetooth communication interface for easy data access and an accuracy of ≤ ±0.3% of span. Perfect for applications in the food, beverage, and pharmaceutical industries, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 0.4 bar (0 psi to 5.8 psi)
- Process temperature range: -20 °C to +130 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Communication interface: Bluetooth
- Process connection: Clamp 1'' (DIN 32676, ISO 2852), PN 40, flush-mounted, 316L stainless steel
- Housing material: Stainless steel 316L (1.4404), PBT/PC
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit resistance, reverse polarity protection
- Enclosure rating: IP66, IP67, IP69
- Accuracy: ≤ ±0.3% of span
- Response time: ≤ 6 ms
- Long-term drift: < 0.35% per annum
- Operating ambient temperature: -40 °C to +80 °C
- Storage temperature: -40 °C to +80 °C
- Shock load: Class 6M4 (50 g; 2.3 ms)
- Vibration load: Class 4M8 (5 g, 4 Hz to 200 Hz)
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure in liquids and gases
- Metallic pressure measuring cell for durability
- Bluetooth communication interface for easy data access
- Flush-mounted clamp 1'' process connection made of 316L stainless steel
- Output signal: 4 mA to 20 mA, 2-wire
- High accuracy of ≤ ±0.3% of span
- Robust stainless steel 316L housing with IP66, IP67, and IP69 protection ratings
- Overvoltage, short-circuit, and reverse polarity protection
- Long service life with minimum 10 million load cycles
- Wide operating temperature range from -40 °C to +80 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in food and beverage industry
- Pharmaceutical and chemical processing requiring hygienic clamp connections
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption with 4-20 mA output signal
- Bluetooth interface enables wireless monitoring reducing wiring and installation impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

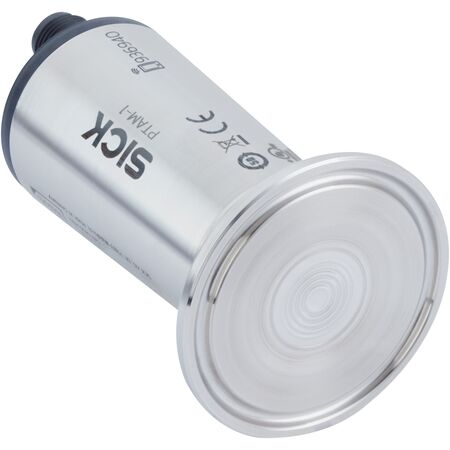

The SICK PTAM-1XXXXAVCMZB pressure sensor is available for immediate purchase, ideal for industrial process control and hygienic applications requiring precise pressure measurement.
