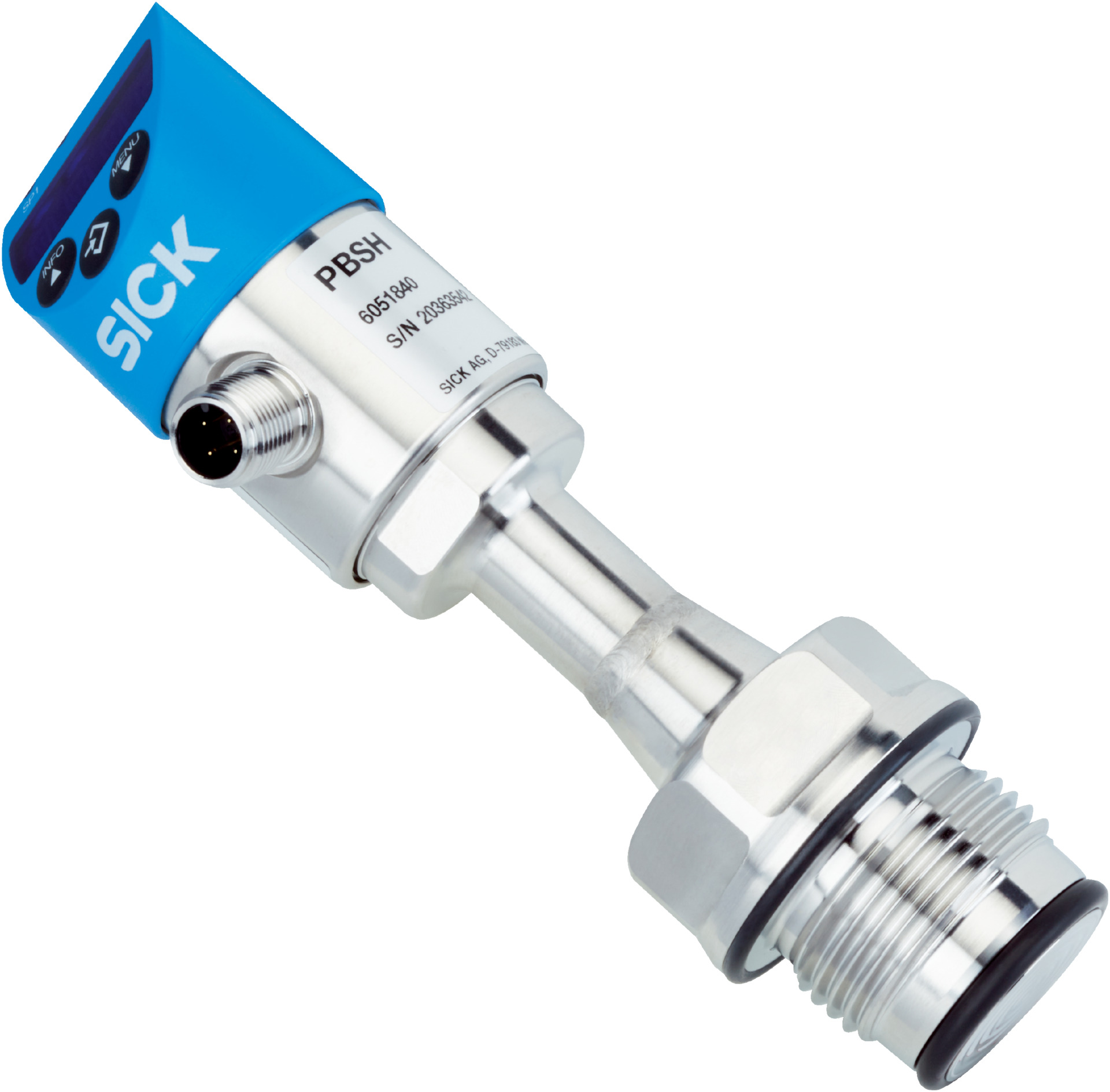

Pressure Transmitter PBSH-CB2X5SHGEFD5A0Z | Compound Pressure Measurement | Hygienic Design | IP65 & IP67 Rated | by SICK
The PBSH-CB2X5SHGEFD5A0Z pressure transmitter excels in measuring compound pressure from -1 bar to 1.5 bar, making it ideal for both liquid and gaseous media. With a hygienic flush-mounted design and a rotatable 14-segment blue LED display, it ensures easy readability and compliance with FDA and USP standards. Perfect for industrial process control and hygienic environments, this sensor features robust electrical safety and high accuracy for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Compound pressure
- Measuring range: -1 bar to 1.5 bar
- Overpressure safety: 2-fold
- Process temperature range: -20 °C to +125 °C
- Maximum ohmic load RA: ≤ 0.5 kΩ for 4 mA ... 20 mA output
- Zero point adjustment: Max. +3% of span
- Output signal: 2 x PNP + 4 mA ... 20 mA
- Rotatable housing: Display can be turned 180° electronically
- Display: 14-segment blue LED, 4 digits, 9 mm height
- Process connection: G 1 hygienic flush-mounted
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Medical white oil, FDA and USP compliant
- Housing material: Stainless steel 304 lower body, PC + ABS plastic head
- Connection type: Round connector M12 x 1, 5-pin
- Supply voltage: 15 V DC to 35 V DC
- Power consumption: Max 70 mA
- Total current consumption: Max 570 mA including switching current
- Electrical safety: Protection class III, overvoltage protection 40 V DC, short-circuit and reverse polarity protection
- Isolation voltage: 500 V DC
- Enclosure rating: IP65 and IP67
- Accuracy: ≤ ±1% of span including all errors
- Response time: 3 ms
- Long-term drift: ≤ ±0.2% of span per year
- Operating ambient temperature: -20 °C to +80 °C
- Storage temperature: -20 °C to +80 °C
- Relative humidity: 45% to 75%
- Shock load: 50 g IEC 60068-2-27
- Vibration load: 10 g IEC 60068-2-6
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures compound pressure from -1 bar to 1.5 bar
- Two-fold overpressure safety
- Rotatable housing with 14-segment blue LED display, electronically turnable by 180°
- Output signals: 2 x PNP + 4 mA ... 20 mA
- Process connection made of 316L stainless steel with hygienic flush-mounted design
- Internal transmission fluid is medical white oil compliant with FDA, USP, EP, and JP
- Enclosure rating IP65 and IP67 for robust protection
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- High accuracy ≤ ±1% of span and fast response time of 3 ms
