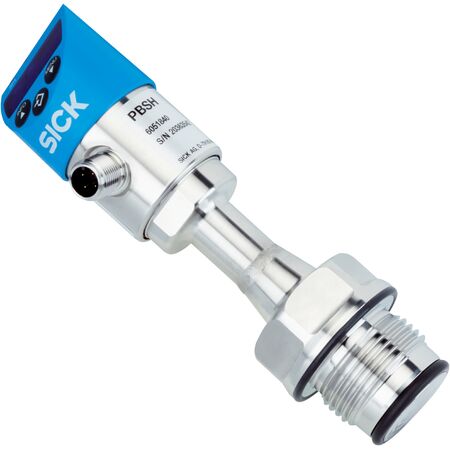

Pressure Transmitter PBSH-CB010SHGEFD5A0Z | Compound Pressure Measurement | IP65 & IP67 Rated | Hygienic Design | by SICK
The PBSH-CB010SHGEFD5A0Z pressure transmitter excels in measuring compound pressure from -1 bar to 9 bar, making it ideal for both liquid and gaseous media. With a robust IP65 and IP67 rated enclosure, this sensor is designed for hygienic environments, featuring a rotatable 14-segment blue LED display for easy readability. Perfect for industrial process control, it ensures high accuracy and fast response times, making it a reliable choice for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Compound pressure
- Measuring range: -1 bar to 9 bar
- Overpressure safety: 2-fold
- Process temperature: -20 °C to +125 °C
- Maximum ohmic load RA: ≤ 0.5 kΩ for 4 mA to 20 mA output
- Zero point adjustment: Max. +3% of span
- Output signal: 2 x PNP + 4 mA to 20 mA
- Rotatable housing: Display can be turned 180° electronically
- Display: 14-segment blue LED, 4 digits, 9 mm height
- Accuracy: ≤ ±1% of span including all errors
- Response time: 3 ms
- Long-term drift: ≤ ±0.2% of span per year
- Rated temperature range: 0 °C to +80 °C
- Ambient temperature operation: -20 °C to +80 °C
- Enclosure rating: IP65 and IP67
- Process connection: G1 hygienic flush-mounted
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 304 lower body, PC + ABS plastic head
- Connection type: Round connector M12 x 1, 5-pin
- Supply voltage: 15 V DC to 35 V DC
- Power consumption: Max 70 mA
- Electrical safety: Protection class III, overvoltage and short-circuit protection
- Isolation voltage: 500 V DC
- CE conformity: EMC directive 2004/108/EC, EN 61326-2-3
- Dimensions (H x L x W): 120mm x 60mm x 60mm
- Weight: 0.5 kg
