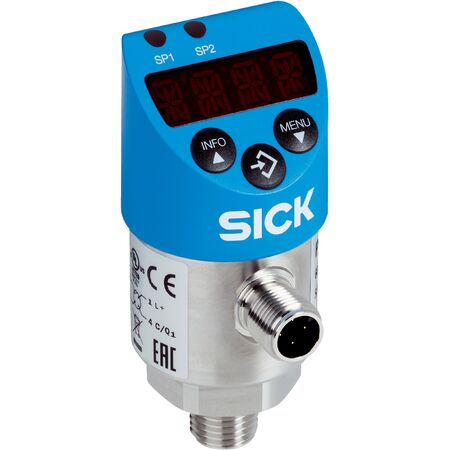

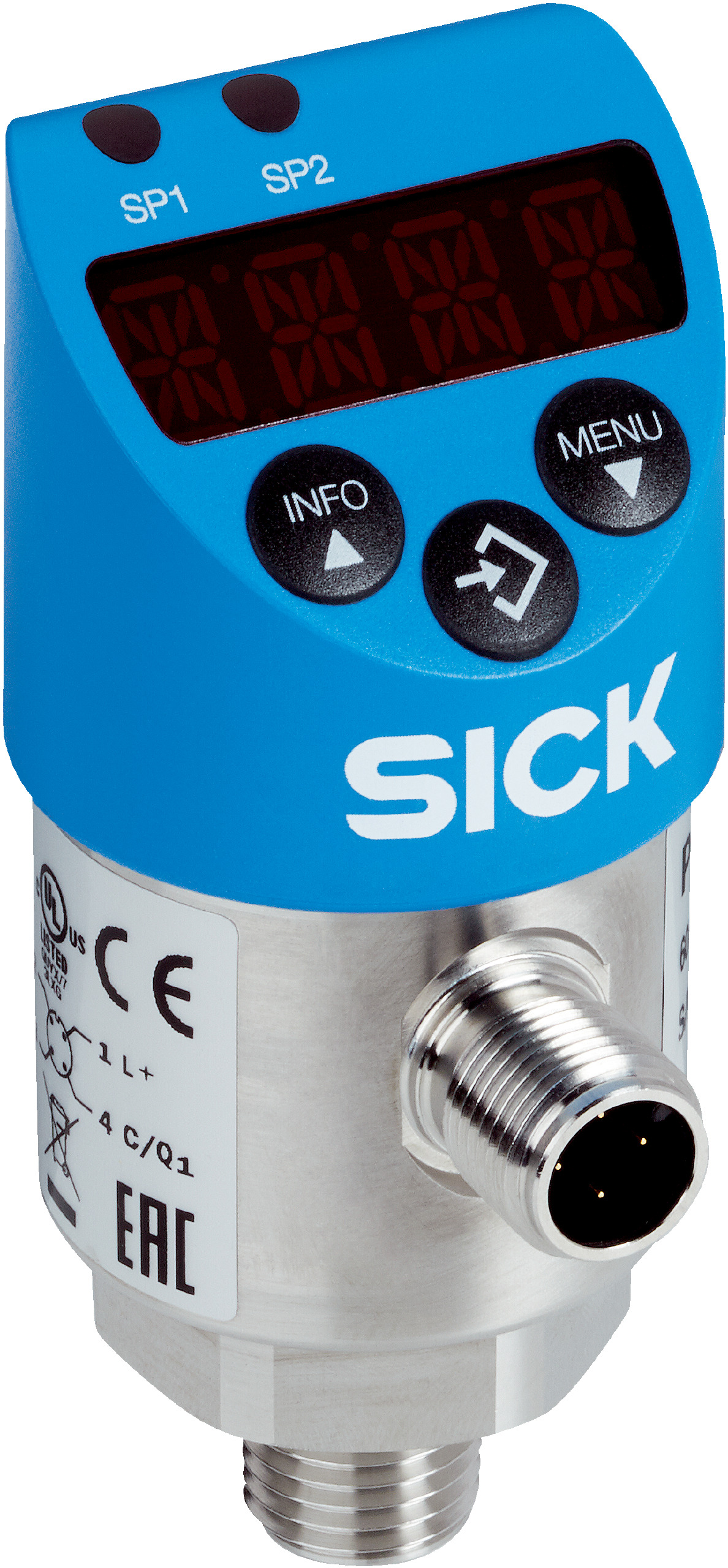

Pressure Transmitter PBS2-CB4X0SG1SSDQ5A0Z | Compound Pressure Measurement | IP67 Rated | 14-Segment LED Display | by SICK
The Pressure Transmitter PBS2-CB4X0SG1SSDQ5A0Z is designed for accurate compound pressure measurement in both liquid and gaseous media, with a range of -1 bar to 3 bar. Featuring a robust IP67 rated enclosure and a 14-segment red LED display, this sensor is perfect for industrial process control and automation systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Compound pressure
- Pressure unit: bar, psi
- Measuring range: -1 bar to 3 bar (-14.5 psi to 44 psi)
- Process temperature range: -20 °C to +85 °C
- Maximum ohmic load RA: 4 mA to 20 mA (RA ≤ 0.5 kOhm), 0 V to 10 V, 3-wire (RA > 10 kOhm)
- Zero point adjustment: Max. +3% of span
- Output signal: IO-Link/PNP/NPN + PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Rotatable housing: Display 330°, Housing 320°
- Display: 14-segment red LED, 4-digit, 9 mm character height, electronically rotatable 180°
- Communication interface: IO-Link V1.1
- Process connection: G ¼ A (ISO 1179-2)
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Silicone oil (for specific pressure ranges)
- Housing material: Stainless steel 304 lower body, PC + ABS plastic head
- Connection type: Round connector M12 x 1, 5-pin
- Supply voltage: 15 V DC to 35 V DC
- Power consumption: 45 mA (without analog output), 70 mA (with analog output)
- Total current consumption: Max. 600 mA including switching current
- Electrical safety: Protection class III, overvoltage 40 V DC, short-circuit and reverse polarity protection
- Isolation voltage: 500 V DC
- Accuracy: ≤ ±0.5% of span including all errors
- Response time: ≤ 5 ms
- Long-term drift: ≤ ±0.1% of span per year
- Operating ambient temperature: -20 °C to +80 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 75%
- Shock load: 50 g, 6 ms
- Vibration load: 20 g, 10 Hz to 2000 Hz
- Enclosure rating: IP67
- Dimensions (H x L x W): 80mm x 100mm x 40mm
- Weight: 0.22 kg
Key Features
- Measures compound pressure in liquid and gaseous media
- Pressure range from -1 bar to 3 bar (-14.5 psi to 44 psi)
- Rotatable housing with 330° electrical connection rotation and 320° process connection rotation
- 14-segment red LED display, 4-digit with 9 mm character height, electronically rotatable by 180°
- Multiple output signals including IO-Link, PNP, NPN, 4 mA to 20 mA, and 0 V to 10 V
- High accuracy with ≤ ±0.5% span including non-linearity and hysteresis
- Fast response time ≤ 5 ms
- Robust stainless steel 316L wetted parts and housing lower body
- IP67 rated enclosure for dust and water protection
- Overvoltage, short-circuit, and reverse polarity protection
- Long service life with minimum 100 million load cycles
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with pressure sensor integration and IO-Link communication protocols to ensure safety and optimal performance.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in manufacturing and automation systems
- Use in environments requiring compound pressure measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption design minimizes energy use
- Compliant with RoHS directive reducing hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PBS2-CB4X0SG1SSDQ5A0Z Pressure Sensor is available for immediate purchase, ideal for industrial process control and automation requiring precise compound pressure measurement.
