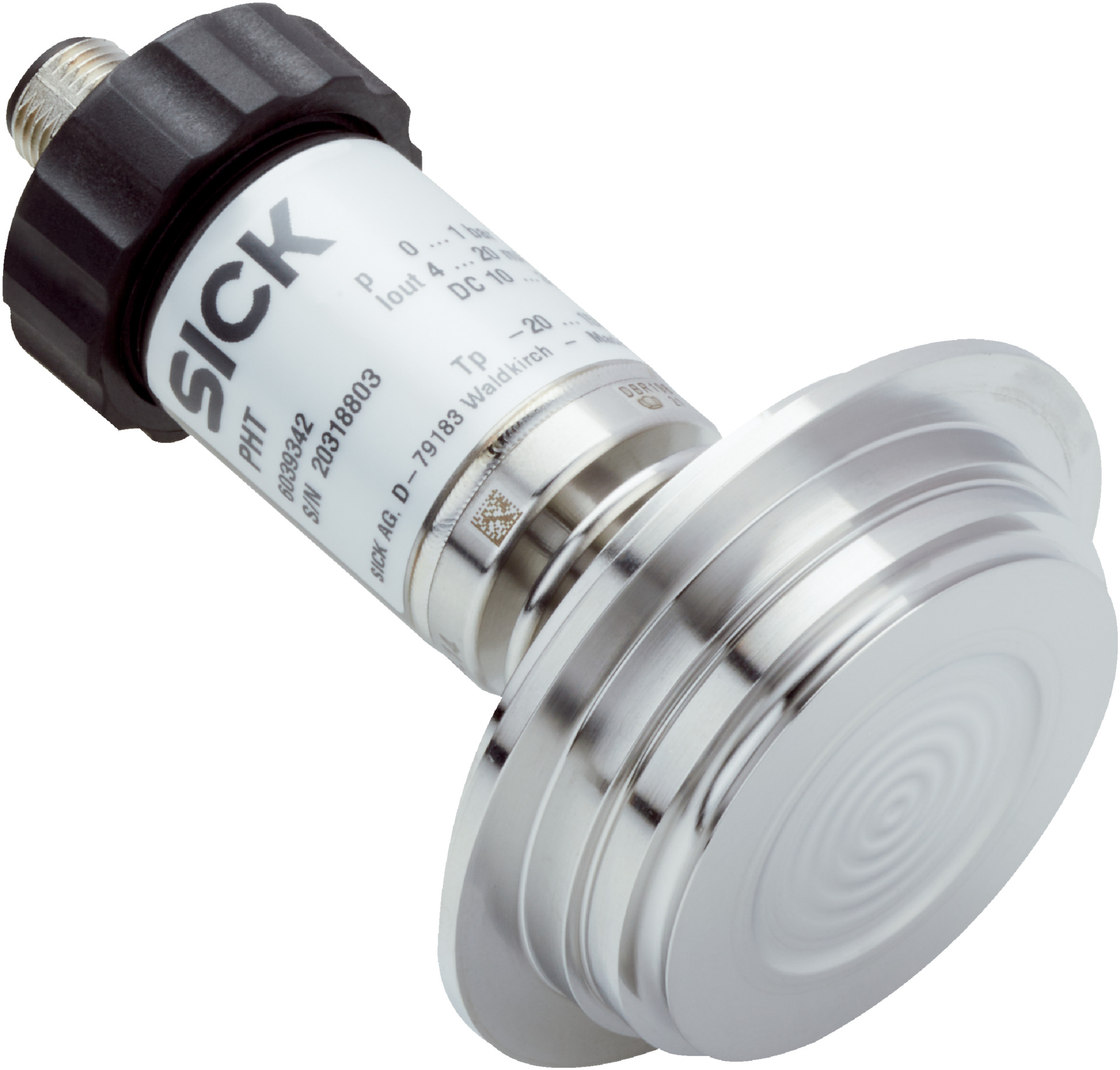

Pressure Transmitter | Compound Pressure Sensor | IP67 Rated | Stainless Steel Housing | by SICK
The Pressure Transmitter is designed for measuring compound pressure from -1 bar to 3 bar, making it ideal for both liquid and gaseous media. With a robust IP67 rated enclosure and stainless steel construction, it ensures durability in harsh environments. Perfect for industrial process control and food industry applications, this sensor features a fast response time of ≤ 10 ms and overvoltage protection for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -1 bar to 3 bar
- Pressure type: Compound pressure
- Process temperature: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 11 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Material: Stainless steel 1.4571 housing, 316L stainless steel wetted parts
- Seal: EPDM
- Response time: ≤ 10 ms
- Accuracy: ≤ ±0.25% of span
- Non-linearity: ≤ ±0.2% BFSL
- Non-repeatability: ≤ ±0.1% of span
- Long-term drift: ≤ 0.2% of span per year
- MTTF: 403 years
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 100mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures compound pressure from -1 bar to 3 bar
- Suitable for liquid and gaseous media
- Process temperature range from -20 °C to +150 °C
- Output signal 4 mA to 20 mA, 2-wire
- Stainless steel 1.4571 housing with 316L stainless steel wetted parts
- Field housing with Varivent connection type N
- Overvoltage, short-circuit, and reverse polarity protection
- IP67 rated enclosure for dust and water protection
- Long-term stability with ≤ 0.2% span drift per year
- Fast response time ≤ 10 ms
- High mechanical resistance to shock (500 g) and vibration (15 g)
- FDA approved synthetic oil as internal transmission fluid
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of liquid and gaseous media pressure
- Industrial process control requiring compound pressure measurement
- Food industry applications due to FDA approved internal transmission fluid
- Harsh environments requiring IP67 rated sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- FDA approved synthetic oil ensures safe use in food industry without contamination
- Low power consumption with 4-20 mA output signal reduces energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

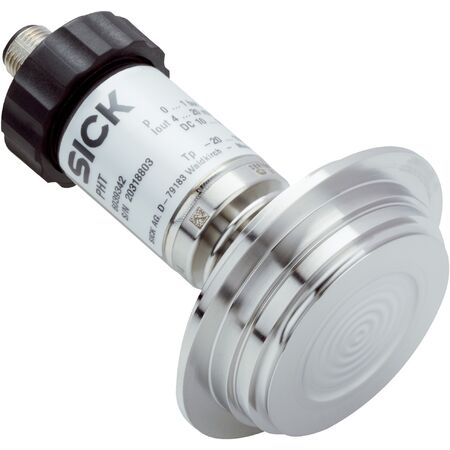

The SICK PHT-CB4X0EVN0SEAFT0Z Pressure Sensor is available for immediate purchase, ideal for industrial process control and food industry applications.
