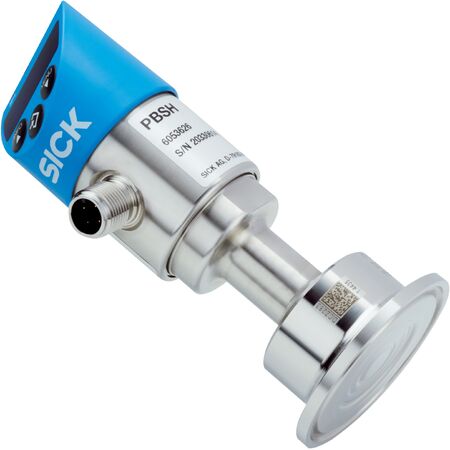

Pressure Transmitter DN40 | 0 to 25 Bar Gauge Pressure | IP65 & IP67 Rated | 14-Segment LED Display | by SICK
The Pressure Transmitter DN40 is designed for precise gauge pressure measurement from 0 to 25 bar, making it ideal for industrial process monitoring in hygienic environments. With a robust IP65 and IP67 rating, this sensor features a rotatable 14-segment blue LED display and offers high accuracy of ≤ ±1% of span. Perfect for applications in the food and pharmaceutical industries, it ensures compliance with FDA standards for safe operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 to 25 bar gauge pressure
- Process temperature range: -20 °C to +100 °C
- Output signal: 1 x PNP + 4 mA to 20 mA
- Supply voltage: 15 V DC to 35 V DC
- Electrical safety: Protection class III, overvoltage protection 40 V DC, short-circuit and reverse polarity protection
- Display: 14-segment blue LED, 4 digits, height 9 mm, electronically rotatable 180°
- Accuracy: ≤ ±1% of span including non-linearity, hysteresis, zero point and full scale error
- Response time: 3 ms
- Enclosure rating: IP65 and IP67
- Process connection: Clamp (DIN 32676) DN 40, wetted parts 316L stainless steel
- Internal transmission fluid: Medical white oil compliant with FDA CFR 172.878 and 21 CFR 178.3620(a), USP, EP, JP
- Dimensions (H x L x W): 120mm x 150mm x 70mm
- Weight: 1.2 kg
Key Features
- Measures gauge pressure from 0 to 25 bar
- Two-fold overpressure safety
- Rotatable housing with 14-segment blue LED display, electronically turnable by 180°
- Output signals: 1 x PNP and 4 mA to 20 mA
- Clamp (DIN 32676) DN 40 process connection made of 316L stainless steel
- Internal transmission fluid is medical white oil compliant with FDA and pharmacopeia standards
- Housing made of stainless steel 304 and durable plastics (PC + ABS)
- Protection class III with overvoltage, short-circuit, and reverse polarity protection
- Enclosure rating IP65 and IP67 for robust environmental protection
- High accuracy ≤ ±1% of span and fast response time of 3 ms
- Long-term stability with ≤ ±0.2% drift per year
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with hygienic process connections and electrical safety standards.
Applications
- Industrial process monitoring for liquid and gaseous media
- Pressure measurement in food and pharmaceutical industries
- Use in hygienic environments requiring FDA compliant materials
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption with max 70 mA operational current
- Compliant with RoHS and food contact material standards ensuring environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK PBSH-RB025SD4S0BMA0Z pressure sensor is available for immediate purchase, ideal for hygienic industrial applications requiring precise pressure measurement.
