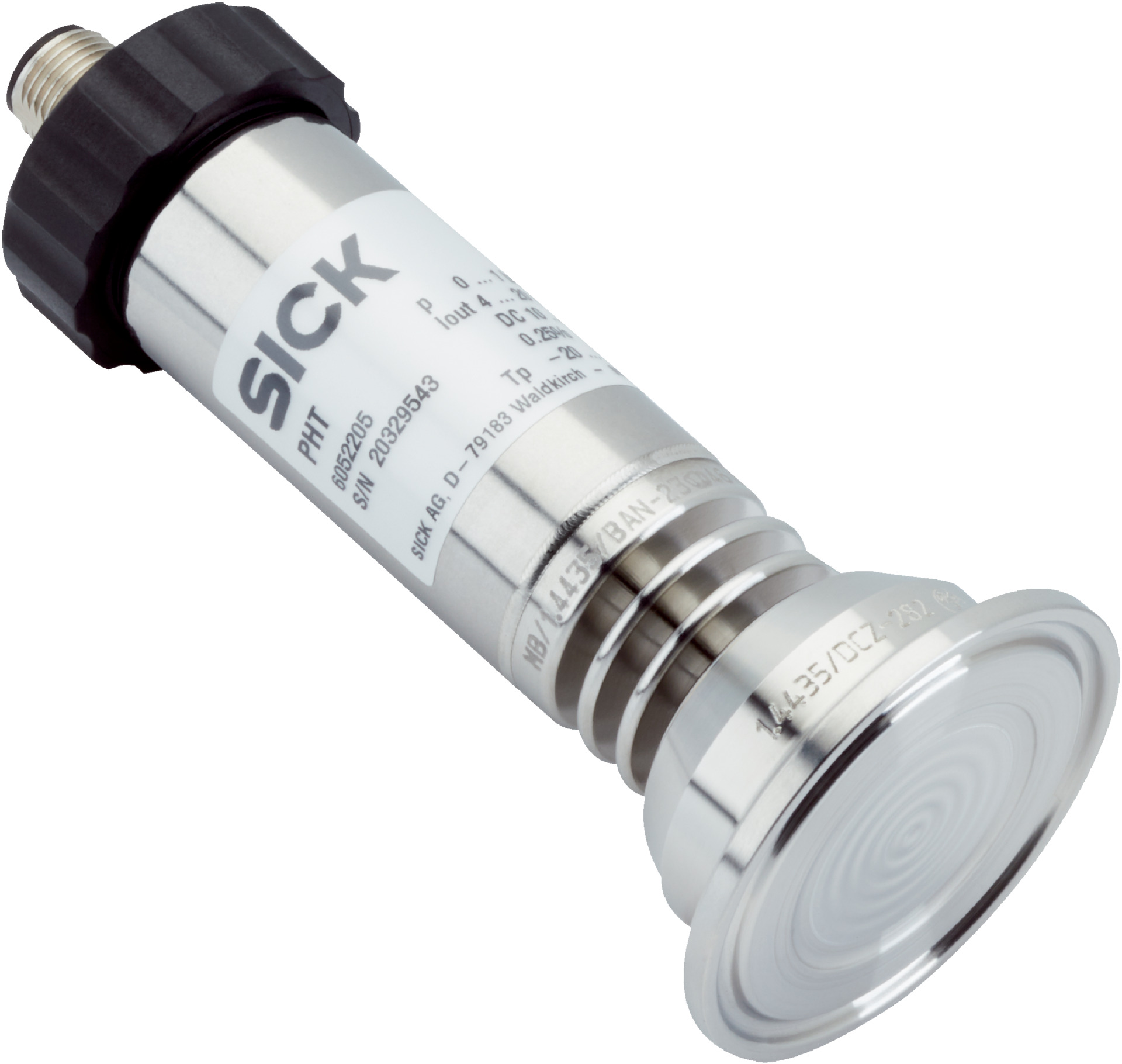

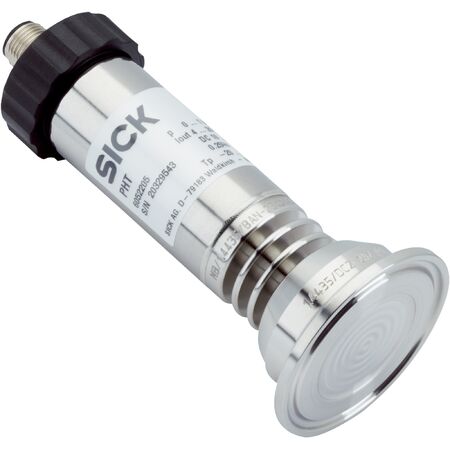

Pressure Transmitter | Gauge Pressure Sensor | Tri-Clamp Connection | IP67 Rated | by SICK
The Pressure Transmitter is designed for precise gauge pressure measurement in liquid and gaseous media, featuring a measuring range of 0 bar to 1 bar and a process temperature range of -20 °C to +150 °C. Ideal for industrial process control and hygienic applications in food and pharmaceutical sectors, this sensor boasts a durable stainless steel construction and high accuracy of ≤ ± 0.5 % of span.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 1 bar
- Process temperature: -20 °C to +150 °C
- Maximum ohmic load RA: 4 mA to 20 mA, 2-wire (RA ≤ (L + – 10 V) / 0.02 A [Ohm])
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Tri-Clamp 1 ½" (DIN 32676)
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Synthetic oil, FDA approved
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Supply voltage: 10 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Dielectric strength: 500 V DC
- Enclosure rating: IP67
- Accuracy: ≤ ± 0.5 % of span (optional 0.25 %)
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2 % of span per year
- Operating ambient temperature: -20 °C to +80 °C
- Storage temperature: -40 °C to +100 °C
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.5 kg
Key Features
- Measuring range from 0 bar to 1 bar
- Gauge pressure type measurement
- Process temperature range from -20 °C to +150 °C
- Output signal 4 mA to 20 mA, 2-wire
- Process connection with Tri-Clamp 1 ½" (DIN 32676)
- Wetted parts made of 316L stainless steel
- Housing made of stainless steel 1.4571
- M12 round connector, 4-pin connection type
- Supply voltage 10 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- IP67 rated enclosure for dust and water protection
- High accuracy with ≤ ± 0.5 % of span, optional 0.25 %
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2 % drift per year
- Shock and vibration resistant according to IEC standards
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Use in food and pharmaceutical industries due to FDA approved synthetic oil
- Industrial process control requiring high accuracy pressure measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction ensures long product life and reduces waste
- FDA approved synthetic oil supports safe use in food and pharmaceutical industries
- Low power consumption with 2-wire 4-20 mA output signal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PHT-RB1X0ST10S0AMS0Z pressure sensor is available for immediate purchase, ideal for industrial process control and hygienic applications in food and pharmaceutical sectors.
