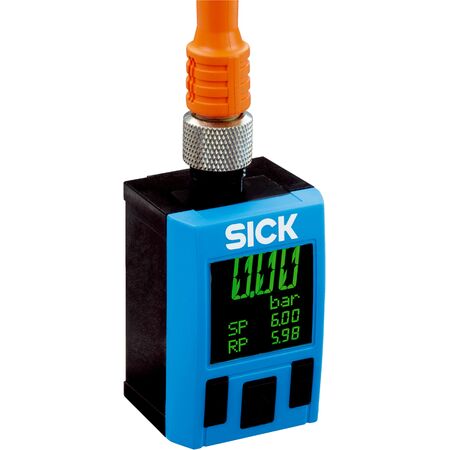

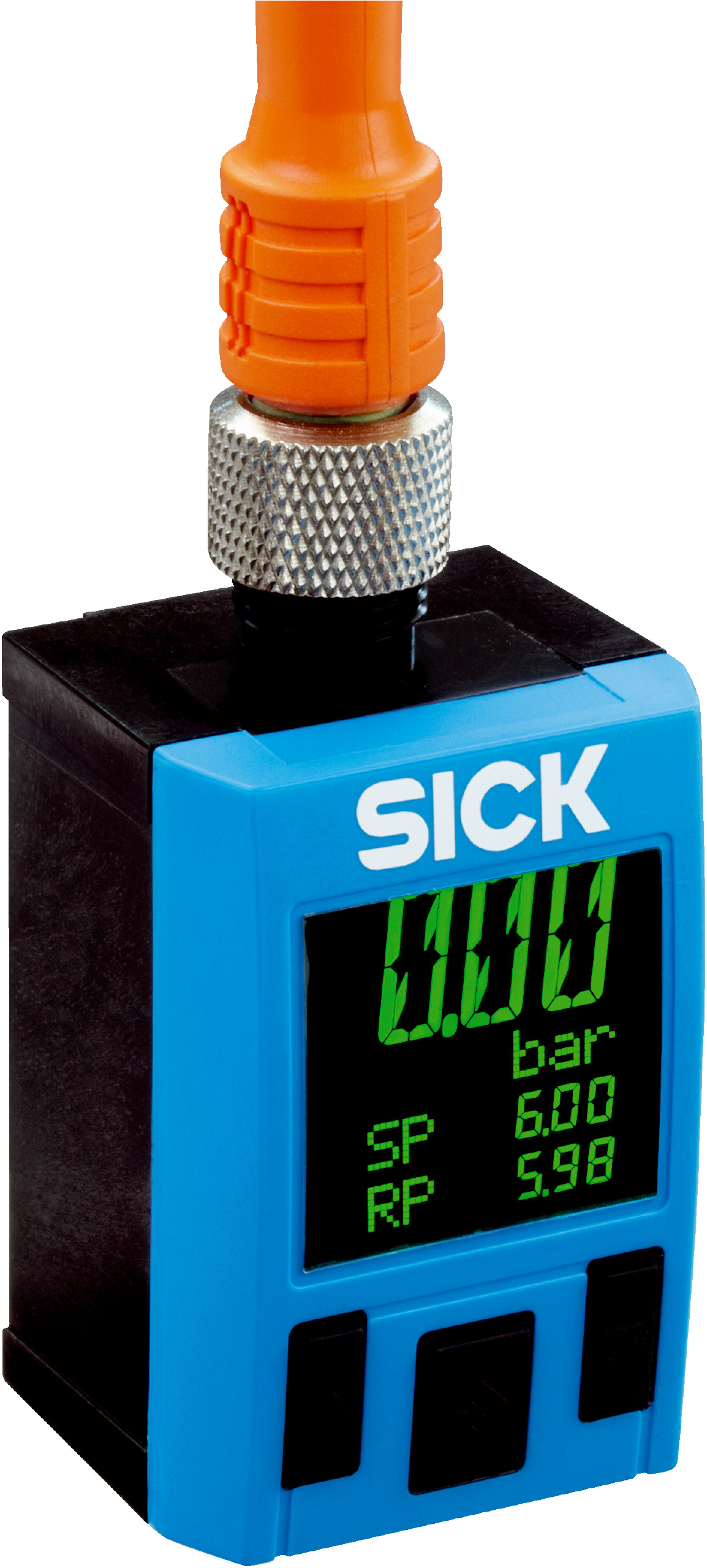

Pressure Transmitter PAC50-CGB | 0 to 6 Bar Measuring Range | LCD Display with LED Backlight | IP65/IP67 Rated | by SICK
The PAC50-CGB Pressure Transmitter is designed for precise gauge pressure measurement from 0 to 6 bar, featuring an LCD display with LED backlight that rotates 180° for easy reading. Ideal for industrial automation and compressed air systems, this sensor ensures high accuracy and robust performance with IP65/IP67 protection, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Dry compressed air
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 6 bar
- Overpressure safety: 15 bar
- Process temperature range: 0 °C to +60 °C
- Output signals: PNP/NPN/Push-Pull + 4 mA to 20 mA / 0 V to 10 V
- Display: LCD with LED backlight, rotatable 180°, pressure units switchable (bar, MPa, kPa, psi, inHg)
- Supply voltage: 17 V DC to 30 V DC
- Power consumption: Max. 40 mA at 24 V DC
- Electrical safety: Protection class III, overvoltage protection 32 V DC, short-circuit and reverse polarity protection
- Enclosure rating: IP65 and IP67
- Accuracy: ≤ ±1.5% of span
- Non-linearity: ≤ ±0.5% of span (BFSL)
- Non-repeatability: ≤ ±0.2% of span
- Setting accuracy of switching outputs: ≤ ±0.2% of span
- MTTF: 256.55 years
- Dimensions (H x L x W): 80mm x 40mm x 40mm
- Weight: 0.1 kg
Key Features
- Measures gauge pressure from 0 to 6 bar with overpressure safety up to 15 bar
- Output signals include PNP/NPN/Push-Pull and analog 4 mA to 20 mA or 0 V to 10 V
- LCD display with LED backlight, rotatable 180°, showing pressure in multiple units
- High accuracy with ≤ ±1.5% span including non-linearity and hysteresis
- Robust polycarbonate housing with IP65/IP67 protection rating
- Short initialization time of 300 ms
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical safety standards.
Applications
- Industrial automation for pressure monitoring
- Compressed air systems
- Process control in manufacturing
- Hydraulic and pneumatic systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise pressure monitoring to optimize system efficiency and reduce energy waste
- Durable design reduces replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK PAC50-CGB Pressure Sensor is available for immediate purchase, ideal for industrial and manufacturing pressure monitoring applications.
