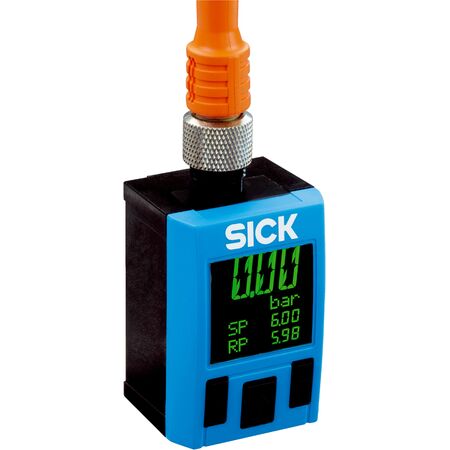

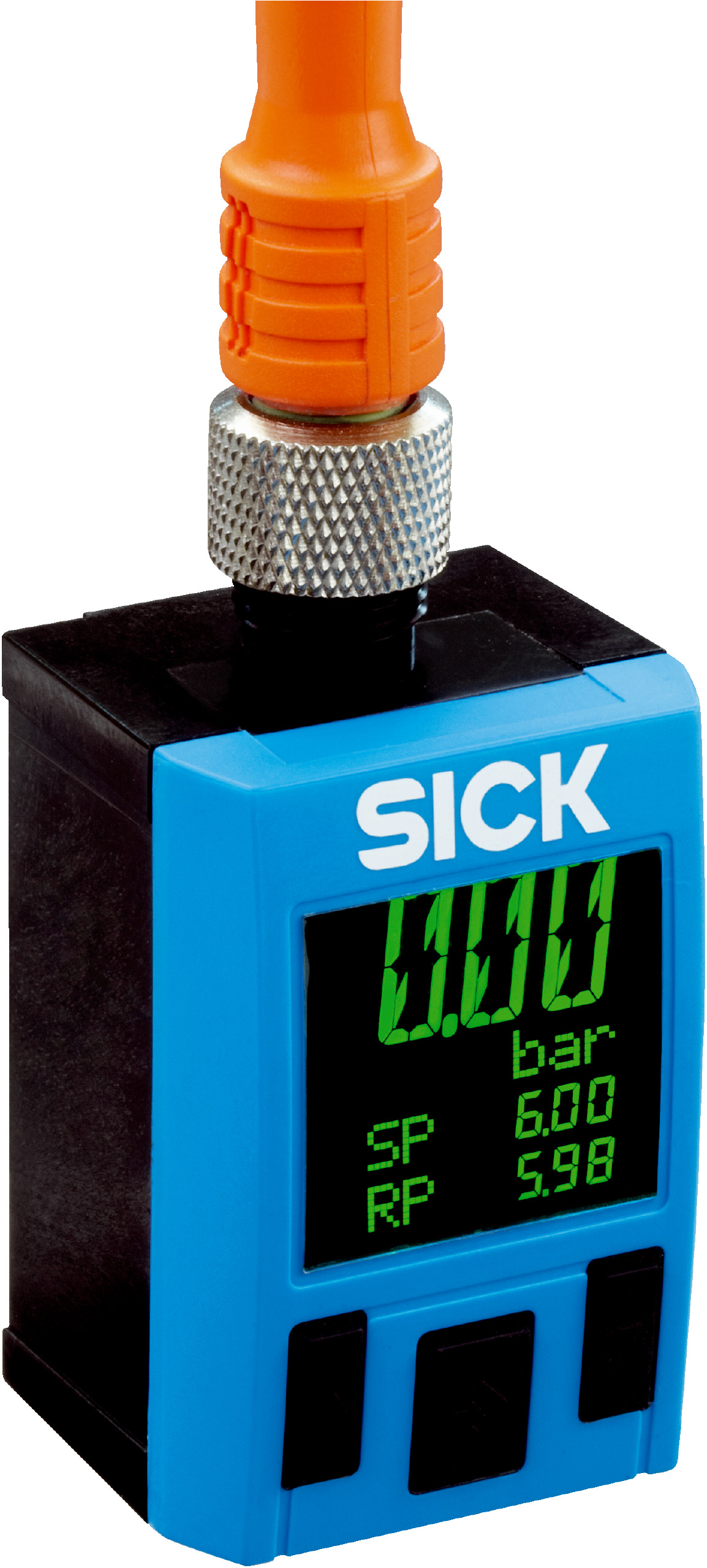

Pressure Transmitter PAC50-FNB | -1 to 10 Bar Range | LCD Display with LED Backlight | IP65/IP67 Rated | by SICK
The PAC50-FNB Pressure Transmitter is designed for precise gauge pressure measurement from -1 bar to 10 bar, making it ideal for industrial automation and compressed air systems. With an LCD display featuring a 180° rotatable LED backlight, it ensures easy readability in various conditions. Built for durability, this sensor is IP65/IP67 rated, providing robust protection against dust and water, perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Dry compressed air
- Pressure type: Gauge pressure
- Measuring range: -1 bar to 10 bar
- Overpressure safety: 15 bar
- Process temperature range: 0 °C to +60 °C
- Output signal: PNP/NPN/Push-Pull + 4 mA to 20 mA / 0 V to 10 V
- Display: LCD with LED backlight, rotatable 180°, pressure units switchable (bar, MPa, kPa, psi, inHg)
- Supply voltage: 17 V DC to 30 V DC
- Power consumption: Max. 40 mA at 24 V DC
- Electrical safety: Protection class III, overvoltage protection 32 V DC, short-circuit and reverse polarity protection
- Enclosure rating: IP65 and IP67
- Accuracy: ≤ ± 1.5% of span
- Non-linearity: ≤ ± 0.5% of span (BFSL)
- Non-repeatability: ≤ ± 0.2% of span
- Setting accuracy of switching outputs: ≤ ± 0.2% of span
- MTTF: 256.55 years
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.1 kg
Key Features
- Measures gauge pressure from -1 bar to 10 bar
- Overpressure safety up to 15 bar
- LCD display with LED backlight, rotatable 180°
- Output signals: PNP/NPN/Push-Pull + 4 mA ... 20 mA / 0 V ... 10 V
- High accuracy with ≤ ± 1.5% of span
- IP65 and IP67 rated enclosure for robust protection
- Short-circuit, reverse polarity, and overvoltage protection
- Fast initialization time of 300 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and pneumatic systems to ensure proper connection and calibration.
Applications
- Industrial automation for pressure monitoring
- Compressed air systems
- Process control in manufacturing
- Hydraulic and pneumatic systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise pressure monitoring to optimize system efficiency and reduce energy waste
- Durable IP65/IP67 housing extends product life, reducing replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PAC50-FNB Pressure Sensor is available for immediate purchase, ideal for industrial and manufacturing applications requiring precise pressure measurement and monitoring.
