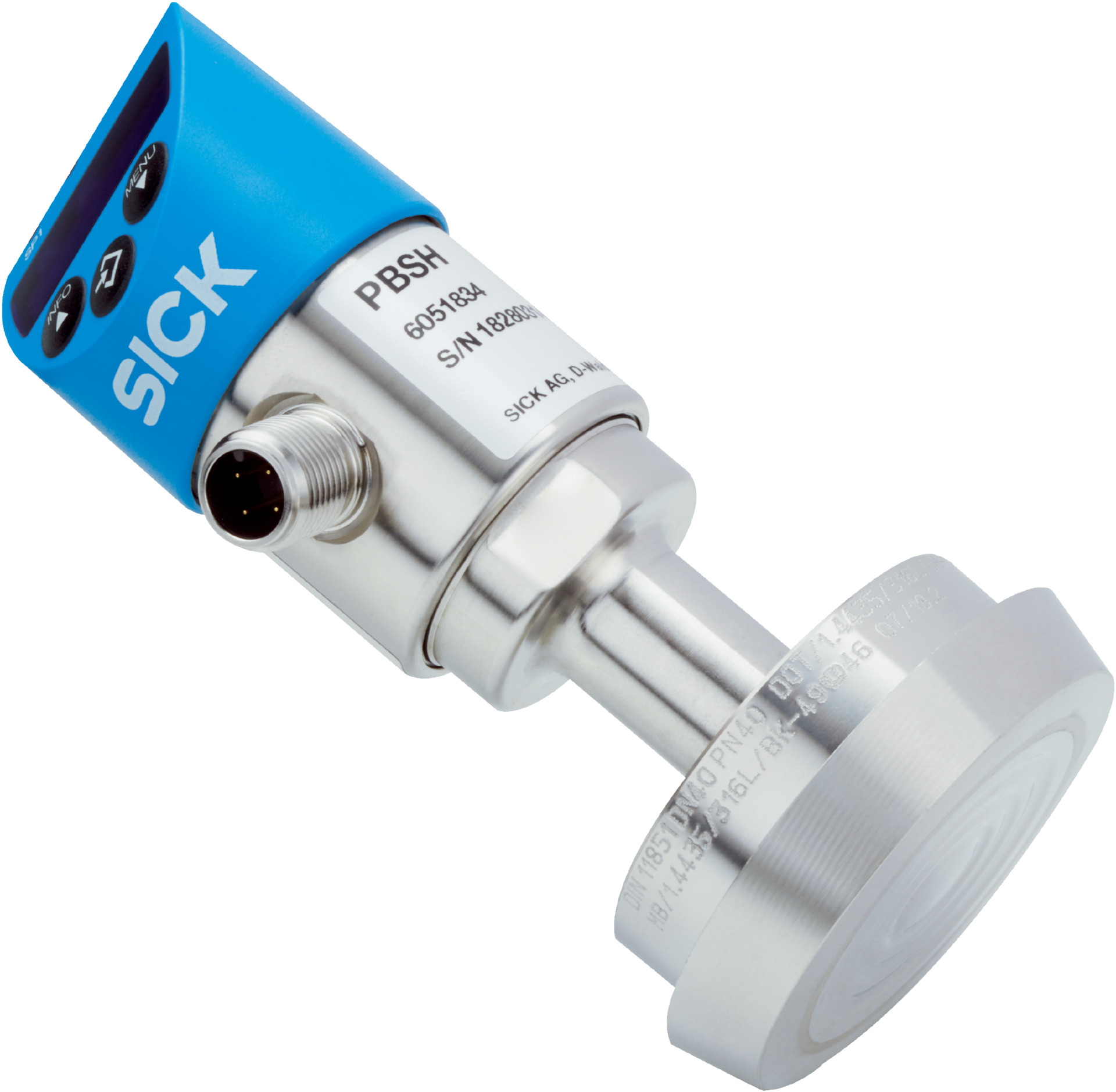

Pressure Transmitter PBSH-CB2X5S54S0BMA0Z | -1 to 1.5 Bar | IP65/IP67 Rated | 14-Segment LED Display | by SICK
The PBSH-CB2X5S54S0BMA0Z Pressure Transmitter is designed for precise measurement of compound pressure from -1 bar to 1.5 bar. With a robust IP65/IP67 rating and FDA compliant internal fluid, it's perfect for industrial process control and applications in the food and pharmaceutical industries. The 14-segment blue LED display is rotatable for easy reading, ensuring optimal performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -1 bar to 1.5 bar
- Pressure type: Compound pressure
- Output signal: 1 x PNP + 4 mA to 20 mA
- Process connection: Conical coupling (DIN 11851) DN 40 with union nut
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Medical white oil, FDA compliant
- Supply voltage: 15 V DC to 35 V DC
- Power consumption: Max 70 mA
- Enclosure rating: IP65 and IP67
- Accuracy: ≤ ±1% of span
- Non-linearity: ≤ ±0.5% BFSL
- Response time: 3 ms
- Operating temperature: -20 °C to +80 °C
- Display: 14-segment blue LED, 4 digits, electronically rotatable 180°
- Electrical safety: Protection class III, overvoltage and short-circuit protection
- Dimensions (H x L x W): 120mm x 100mm x 80mm
- Weight: 1.2 kg
Key Features
- Measures compound pressure from -1 bar to 1.5 bar
- Two-fold overpressure safety
- Rotatable housing with 330° display adjustment
- 14-segment blue LED display with 4 digits, electronically turnable by 180°
- Output signal: 1 x PNP + 4 mA to 20 mA
- Process connection: Conical coupling (DIN 11851) DN 40 with union nut
- Wetted parts made of 316L stainless steel
- Internal transmission fluid is medical white oil, FDA compliant
- Supply voltage range: 15 V DC to 35 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- Enclosure rating IP65 and IP67 for dust and water protection
- High accuracy ≤ ±1% of span and non-linearity ≤ ±0.5%
- Fast response time of 3 ms
- Long-term stability with ≤ ±0.2% drift per year
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of liquid and gaseous media pressure
- Industrial process control requiring compound pressure measurement
- Food and pharmaceutical industry due to FDA compliant internal fluid
- Environments requiring robust IP65/IP67 rated sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption with max 70 mA operational current
- FDA compliant internal fluid ensures safe use in food and pharmaceutical environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PBSH-CB2X5S54S0BMA0Z Pressure Sensor is available for immediate purchase, ideal for industrial process control and food industry applications.
