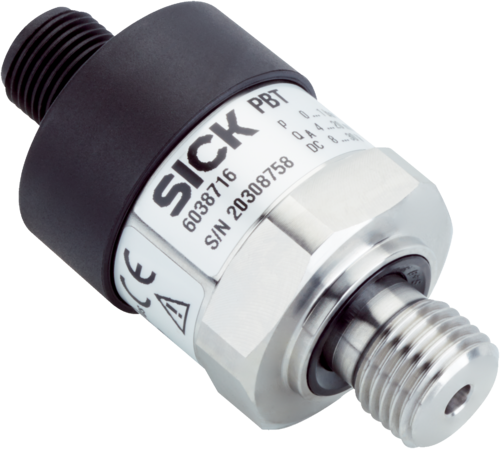

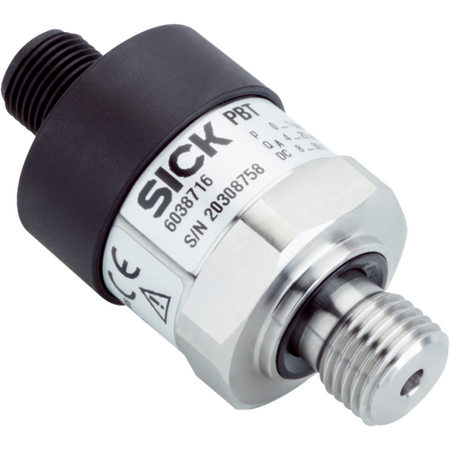

Pressure Transmitter PBT-RB010SG1SSNALA0Z 0 to 10 Bar Gauge Pressure IP65 Rated SICK
The PBT-RB010SG1SSNALA0Z pressure transmitter measures gauge pressure from 0 to 10 bar, making it ideal for industrial process control of liquids and gases.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Pressure transmitter, gauge pressure sensor, 4-20mA pressure sensor, industrial pressure sensor
Technical Specifications
- Measuring range: 0 bar to 10 bar gauge pressure
- Process temperature range: 0 °C to +80 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 8 V DC to 30 V DC
- Process connection: G ¼ A (ISO 1179-2)
- Wetted parts: Stainless steel 316L
- Enclosure rating: IP65
- Electrical safety: Overvoltage protection 32-36 V DC, short-circuit and reverse polarity protection
- Accuracy: ≤ ±1% of span including non-linearity, hysteresis, zero point and full scale error
- Response time: < 4 ms
- Weight: Approx. 80 g
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.1 kg
Key Features
- Measures gauge pressure from 0 to 10 bar
- Suitable for liquid and gaseous media
- Stainless steel 316L wetted parts and housing for durability
- Output signal: 4 mA to 20 mA, 2-wire
- High accuracy with ≤ ±1% span including non-linearity and hysteresis
- Fast response time under 4 ms
- IP65 rated enclosure for protection against dust and water
- Overvoltage, short-circuit, and reverse polarity protection
- Long service life with minimum 100 million load cycles
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in hydraulic and pneumatic systems
- Automation systems requiring precise gauge pressure measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption contributes to energy efficiency
- High accuracy reduces process errors and material waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PBT-RB010SG1SSNALA0Z pressure sensor is available for immediate purchase, ideal for industrial and automation applications requiring reliable pressure measurement.
