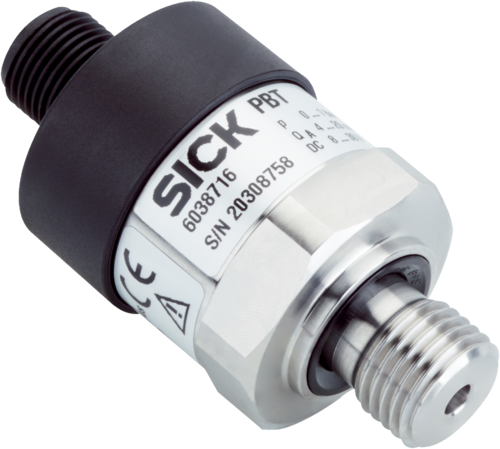

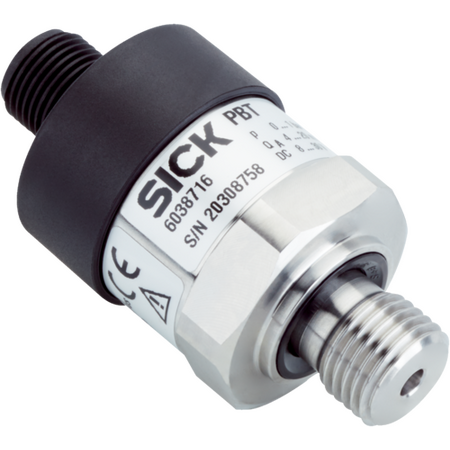

Pressure Transmitter PBT-RP300SG1NSNVMC0Z 0-300 psi Gauge Pressure IP67 Rated SICK

BRAND: SICK
SKU: 6049464
$487.90 List price: $613.30
+ −
30 Days Return Electricians Unlock Trade Access
The Pressure Transmitter PBT-RP300SG1NSNVMC0Z measures gauge pressure from 0 to 300 psi, making it ideal for industrial process control of liquid and gaseous media.

Alternatively Known As: Pressure Transmitter, Pressure Sensor 0-300 psi, Gauge Pressure Sensor, Industrial Pressure Transducer

Technical Specifications
  • Measuring range: 0 psi to 300 psi
  • Pressure type: Gauge pressure
  • Process temperature: 0 °C to +80 °C
  • Output signal: 0 V to 10 V, 3-wire
  • Supply voltage: 14 V DC to 30 V DC
  • Power consumption: Max 8 mA for voltage output
  • Communication interface: None
  • Process connection: G ¼ A (ISO 1179-2)
  • Wetted parts: Stainless steel 316L
  • Internal transmission fluid: Silicone oil (for specific pressure ranges)
  • Pressure port size: 0.3 mm
  • Connection type: M12 round connector, 4-pin
  • Electrical safety: Overvoltage protection 32 V DC, short-circuit and reverse polarity protection
  • Enclosure rating: IP67
  • Accuracy: ≤ ±1% of span including non-linearity, hysteresis, zero point and full scale error
  • Response time: < 4 ms
  • Long-term stability: ≤ 0.1% of span per year
  • Shock load: 500 g per IEC 60068-2-27
  • Vibration load: 10 g per IEC 60068-2-6, optional 20 g
  • MTTF: 1,176 years
  • Dimensions (H x L x W): 80mm x 80mm x 30mm
  • Weight: 0.1 kg
Key Features
  • Measures gauge pressure from 0 psi to 300 psi
  • Suitable for liquid and gaseous media
  • Output signal: 0 V to 10 V, 3-wire
  • Process connection: G ¼ A (ISO 1179-2) with 0.3 mm pressure port
  • Housing and wetted parts made of stainless steel 316L
  • IP67 rated enclosure for dust and water protection
  • Overvoltage, short-circuit, and reverse polarity protection
  • High accuracy with ≤ ±1% span including non-linearity and hysteresis
  • Fast response time under 4 ms
  • Long service life with minimum 100 million load cycles
  • Operating temperature range 0 °C to +80 °C
Professional Installation Requirements
  • Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical safety standards.
Applications
  • Industrial process control for liquid and gaseous media
  • Pressure monitoring in hydraulic and pneumatic systems
  • Automation systems requiring precise gauge pressure measurement
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable stainless steel housing extends product life reducing waste
  • Low power consumption minimizes energy use
  • High accuracy reduces process errors and material waste
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK PBT-RP300SG1NSNVMC0Z Pressure Sensor is available for immediate purchase, ideal for industrial and automation applications requiring reliable pressure measurement.
