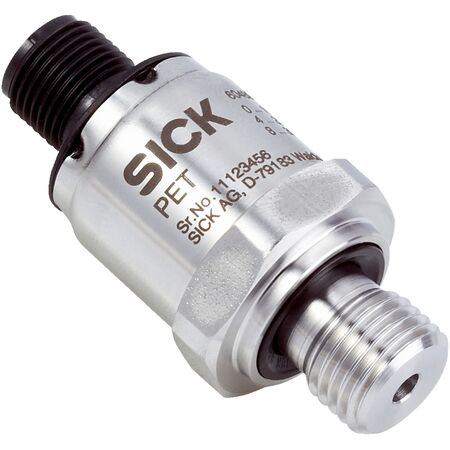

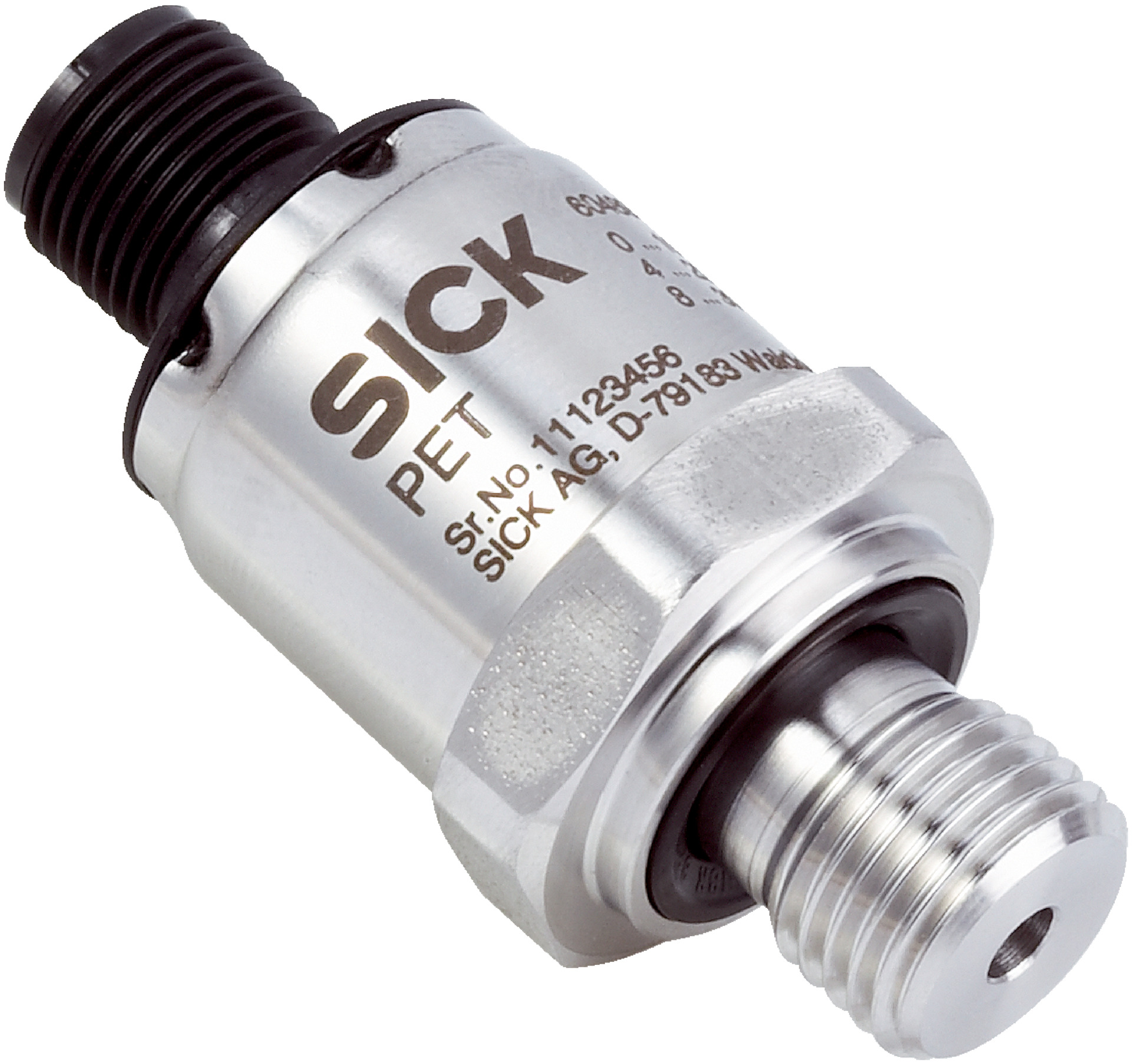

Pressure Transmitter PET-1CB016G1NSAMA | -1 to 15 Bar Range | IP67 Rated | Stainless Steel Housing | by SICK
The Pressure Transmitter PET-1CB016G1NSAMA is designed for precise fluid pressure monitoring, measuring compound pressure from -1 bar to 15 bar. With a robust stainless steel housing and an IP67 rating, it’s perfect for industrial applications, ensuring durability and reliability in harsh environments. The 2-wire 4-20 mA output signal and fast response time under 2 ms make it ideal for process control systems and automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Pressure type: Compound pressure
- Measuring range: -1 bar to 15 bar
- Output signal: 4 mA to 20 mA, 2-wire
- Process temperature: -30 °C to +100 °C
- Process connection: G ¼ A (ISO 1179-2)
- Wetted parts: 316L stainless steel, stainless steel 13-8 PH
- Housing material: Stainless steel 316L, PBT GF30
- Connection type: M12 round connector, 4-pin
- Supply voltage: 8 V DC to 30 V DC
- Power consumption: 25 mA max
- Enclosure rating: IP67 (IEC 60529)
- Protection class: III
- Isolation voltage: 750 V DC
- Overvoltage protection: 36 V DC
- Short-circuit and reverse polarity protection included
- Non-linearity: ≤ ±0.5% of span (BFSL)
- Accuracy: ≤ ±1.2% of span at room temperature
- Response time: < 2 ms
- Long-term drift: ≤ ±0.3% of span per year
- Service life: Minimum 10 million load cycles
- Shock load: 40 g (6 ms) IEC 60068-2-27
- Vibration load: 20 g (20 Hz to 2000 Hz, 120 min) IEC 60068-2-6
- Dimensions (H x L x W): 70mm x 30mm x 30mm
- Weight: 0.2 kg
Key Features
- Measures compound pressure in fluids from -1 bar to 15 bar
- 2-wire 4 mA to 20 mA output signal
- Overpressure safety 2-fold, 3-fold on request
- Process temperature range from -30 °C to +100 °C
- Stainless steel 316L wetted parts and housing
- IP67 rated enclosure for dust and water protection
- Short-circuit, reverse polarity, and overvoltage protection
- Fast response time under 2 ms
- Long service life with minimum 10 million load cycles
- High accuracy with ≤ ±1.2% of span at room temperature
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial fluid pressure monitoring
- Process control systems
- Hydraulic and pneumatic systems
- Automation and manufacturing plants
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption (25 mA max) supports energy efficiency
- High accuracy reduces process waste and improves system efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK PET-1CB016G1NSAMA pressure sensor is available for immediate purchase, ideal for industrial fluid pressure monitoring and process control applications.
