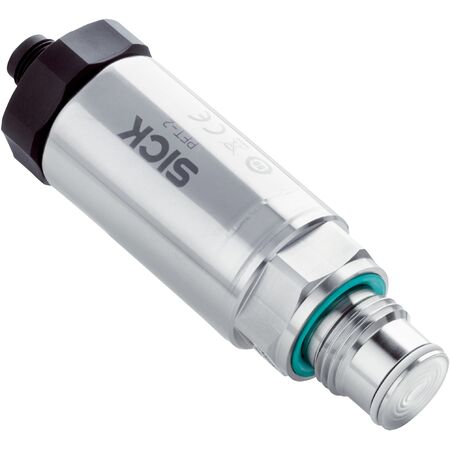

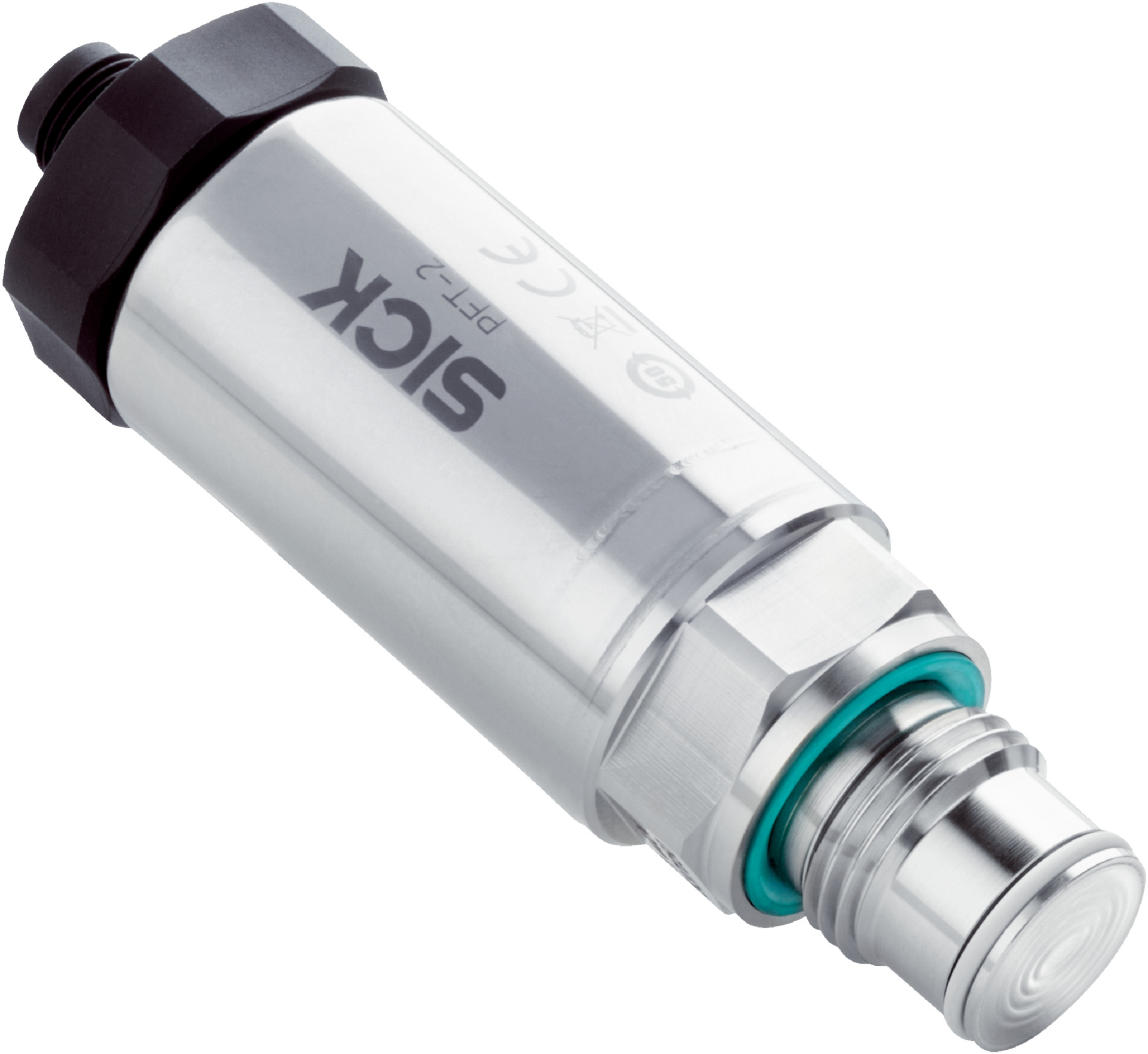

Pressure Transmitter PFT-23PEM | 0-2.5 Bar Range | High Accuracy | IP66 & IP67 Rated | by SICK
The Pressure Transmitter PFT-23PEM measures gauge pressure in both liquid and gaseous media, with a range of 0 to 2.5 bar and high accuracy of ≤ ± 0.5% of span. Designed for industrial process control, it features a robust stainless steel housing and an IP66/IP67 rated enclosure, making it ideal for harsh environments. With a fast response time of approximately 15 ms, this sensor is perfect for hydraulic and pneumatic systems, ensuring reliable performance in automation and monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Pressure unit: bar
- Measuring range: 0 bar to 2.5 bar (0 psi to 36.3 psi)
- Process temperature: -40 °C to +100 °C
- Maximum ohmic load RA: 4 mA to 20 mA, 2-wire (RA ≤ (L + – 12 V) / 0.022 A [Ohm])
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: G ½ flush-mounted (ISO 228-1)
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Silicone oil
- Housing material: Stainless steel 316L
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 39 V DC
- Dielectric strength: 500 V AC
- Accuracy: ≤ ± 0.5% of span (DIN EN 60770-1)
- Response time (10% to 90%): Approx. 15 ms
- Long-term drift/one-year stability: < 0.15% within nominal measuring range
- Temperature coefficient: < 0.15% / 10 K
- Rated temperature range: 0 °C to +100 °C
- Service life: Minimum 10 million load cycles
- Ambient temperature operation: -40 °C to +70 °C
- Storage temperature: -40 °C to +70 °C (with flush-mounted membrane and cooling element -20 °C to +100 °C)
- Shock load: Class 6M4 IEC 60721-3-6 (50 g, 2.3 ms)
- Vibration load: Class 4M8 IEC 60271-3-4 (5 g at 4 Hz to 200 Hz)
- Enclosure rating: IP66, IP67
- Protection class III
- Dimensions (H x L x W): 80mm x 30mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Pressure range from 0 to 2.5 bar (0 to 36.3 psi)
- Process temperature range from -40 °C to +100 °C
- Output signal 4 mA to 20 mA, 2-wire
- High accuracy ≤ ± 0.5% of span
- Fast response time approx. 15 ms
- Robust stainless steel 316L housing and process connection
- IP66 and IP67 rated enclosure for harsh environments
- Overvoltage protection up to 39 V DC
- Long service life with minimum 10 million load cycles
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of liquid and gaseous media pressure
- Industrial process control
- Hydraulic and pneumatic systems
- Automation and monitoring systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with 4-20 mA output signal
- Complies with RoHS directive to limit hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK PFT-23PEM Pressure Sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise pressure measurement.
