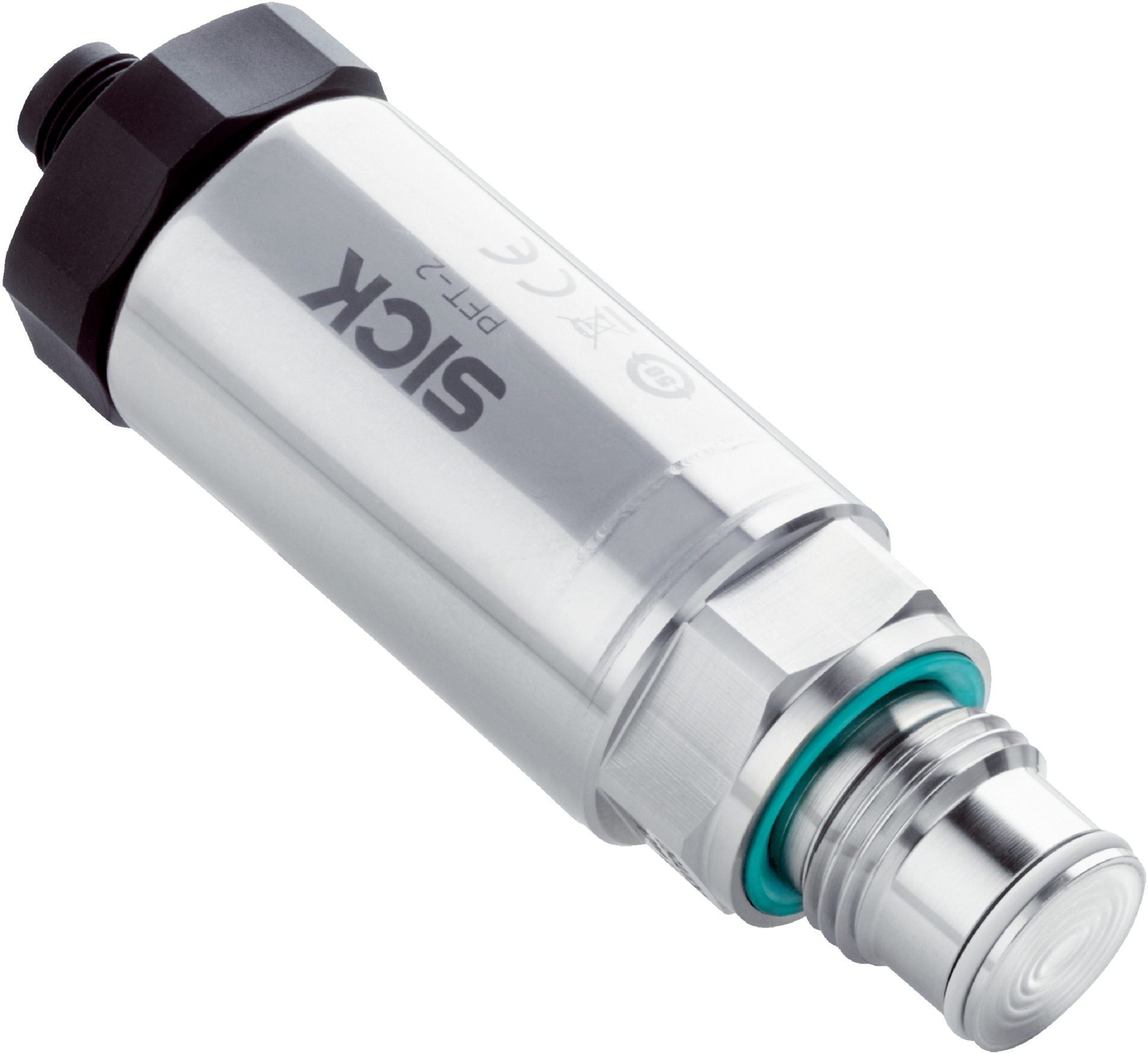

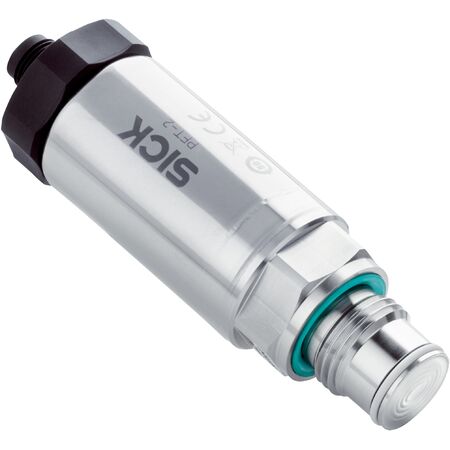

Pressure Transmitter PFT-23PIM | 0-25 Bar Gauge Pressure | IP66 & IP67 Rated | by SICK
The PFT-23PIM Pressure Transmitter measures gauge pressure in both liquid and gaseous media, with a range of 0 to 25 bar. Designed for industrial process monitoring, it features a robust stainless steel housing and an impressive accuracy of ≤ ±0.5% of span. Ideal for hydraulic and pneumatic systems, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 25 bar (0 psi to 362.6 psi)
- Process temperature: -40 °C to +100 °C
- Maximum ohmic load RA: 4 mA to 20 mA, 2-wire (RA ≤ (L + – 12 V) / 0.022 A [Ohm])
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: G ½ flush-mounted (ISO 228-1)
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Silicone oil
- Housing material: Stainless steel 316L
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 39 V DC
- Dielectric strength: 500 V AC
- Accuracy: ≤ ±0.5% of span (DIN EN 60770-1)
- Response time (10% to 90%): Approx. 15 ms
- Long-term drift/one-year stability: < 0.15% within nominal measuring range
- Temperature coefficient: < 0.15% / 10 K
- Rated temperature range: 0 °C to +100 °C
- Service life: Minimum 10 million load cycles
- Enclosure rating: IP66, IP67
- Protection class III
- Dimensions (H x L x W): 80mm x 50mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Pressure range from 0 to 25 bar (0 to 362.6 psi)
- Process temperature range from -40 °C to +100 °C
- Output signal: 4 mA to 20 mA, 2-wire
- High accuracy of ≤ ±0.5% of span
- Fast response time of approximately 15 ms
- Robust stainless steel 316L housing and process connection
- IP66 and IP67 rated enclosure for dust and water protection
- Overvoltage protection up to 39 V DC
- Long service life with minimum 10 million load cycles
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial process monitoring of liquid and gaseous media
- Pressure measurement in hydraulic and pneumatic systems
- Use in environments requiring robust and accurate gauge pressure sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with 4-20 mA output signal
- Compliant with RoHS directive limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PFT-23PIM Pressure Sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise gauge pressure measurement.
