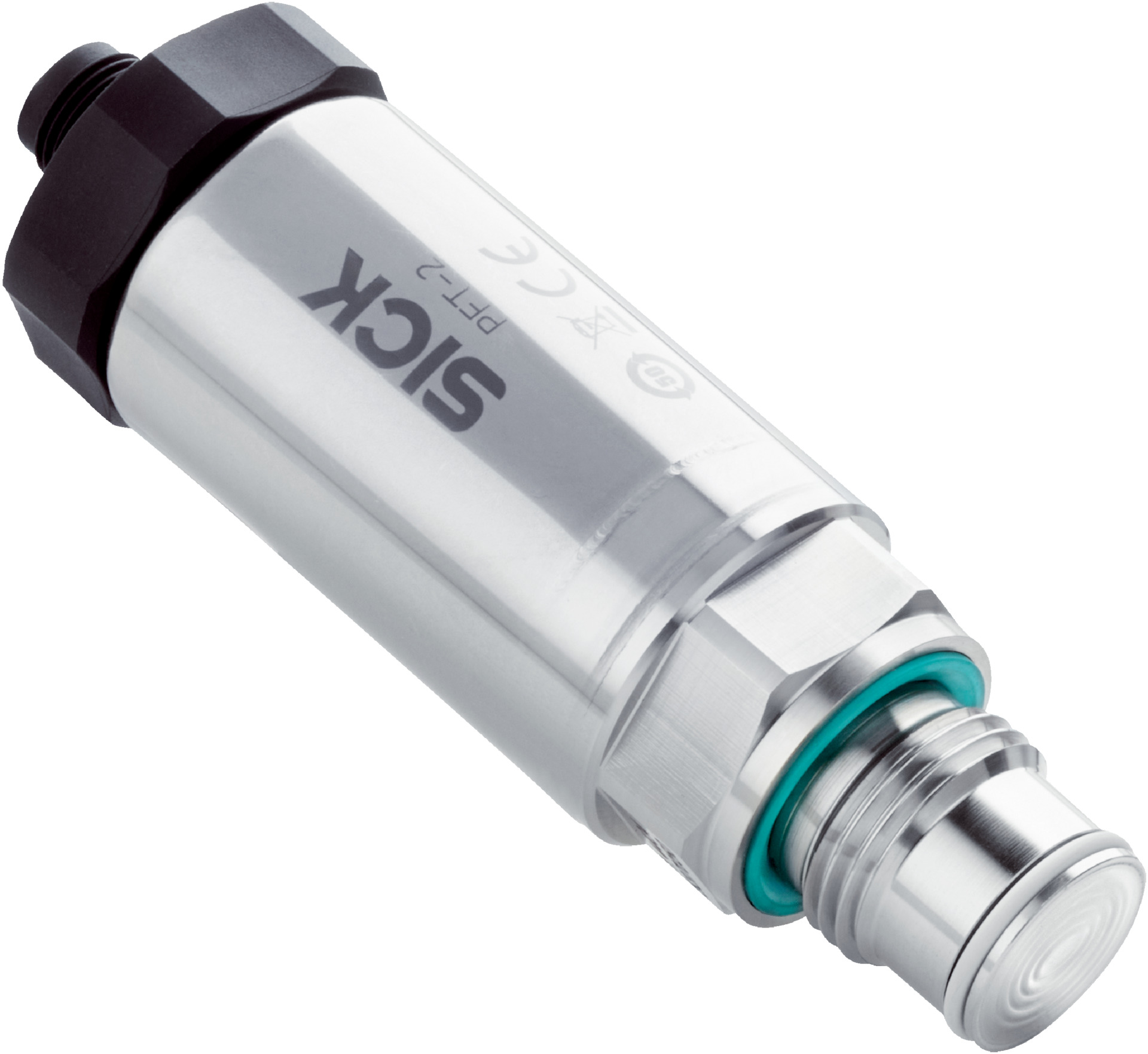

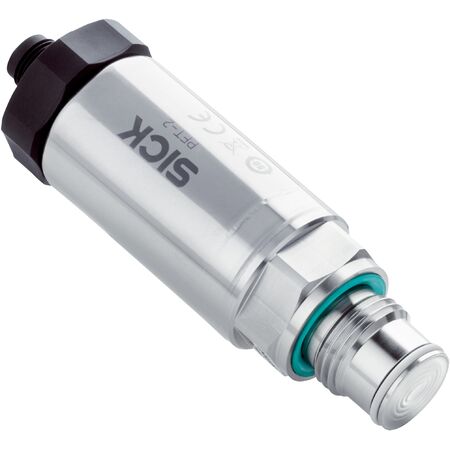

Pressure Transmitter PFT-23PLM | 0-100 Bar Measuring Range | High Accuracy | IP66/IP67 Rated | by SICK
The PFT-23PLM Pressure Transmitter is designed for precise gauge pressure measurement in both liquid and gaseous media, with a measuring range of 0 to 100 bar. Built for industrial applications, it features a robust stainless steel housing, high accuracy of ≤ ±0.5% of span, and a fast response time of approximately 15 ms. Ideal for process control and automation systems, this sensor ensures reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 100 bar (0 psi to 1450.4 psi)
- Process temperature range: –40 °C to +100 °C
- Maximum ohmic load RA: 4 mA to 20 mA, 2-wire
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: G ½ flush-mounted (ISO 228-1)
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Silicone oil
- Housing material: Stainless steel 316L
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 39 V DC
- Dielectric strength: 500 V AC
- Enclosure rating: IP66, IP67
- Protection class: III
- Accuracy: ≤ ±0.5% of span (DIN EN 60770-1)
- Response time: Approx. 15 ms
- Long-term drift: < 0.15% within nominal range
- Temperature coefficient: < 0.15% / 10 K
- Rated temperature range: 0 °C to +100 °C
- Service life: Minimum 10 million load cycles
- Ambient temperature operation: –40 °C to +70 °C
- Shock load: Class 6M4 (50 g, 2.3 ms)
- Vibration load: Class 4M8 (5 g at 4 Hz to 200 Hz)
- Dimensions (H x L x W): 80mm x 30mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Measuring range from 0 to 100 bar (0 to 1450.4 psi)
- High accuracy of ≤ ±0.5% of span
- Fast response time of approximately 15 ms
- Robust stainless steel 316L housing and process connection
- IP66 and IP67 rated enclosure for harsh environments
- Overvoltage protection up to 39 V DC
- Long service life with minimum 10 million load cycles
- M12 round 4-pin connector for electrical connection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in hydraulic and pneumatic systems
- Automation systems requiring precise gauge pressure measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with 12 V DC to 35 V DC supply voltage
- Complies with RoHS directive limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PFT-23PLM Pressure Sensor is available for immediate purchase, ideal for industrial and automation applications requiring reliable pressure measurement.
